DCM 1000

DCM 1000- Hardness tester for direct determination of the case hardness depth Advantages of this hardness testing method

Instead of the previously time-consuming preparation of polished cut specimens, this efficient method offers the possibility of one hundred percent batch testing. The case hardness can be determined within one minute. The test method allows a quick and non-destructive statement as to whether workpieces have an inhomogeneous hardness distribution in the surface zone.

Versions

DCM 1000 CS with spindle and height adjustable test table - test height 175 mm
DCM 1000 C with spindle and height adjustable test table - test height 395 mm
DCM 1000 E with large test table, electrically movable test head - test height 450 mm

Durometro Rockwell Qness 60 / 150 RCS - Dati tecnici

Specifications

DCM = Direct CHD measurement / surface hardness testing
Equivalent to former Briro E method
Determination of case hardening depth via direct testing
In addition, hardness testing of all Rockwell methods according to DIN EN ISO and ASTM in conformity with standards
Test height 395 mm for DCM 1000 C
Projection 220 mm,
Evaluation via software as with Briro E-machines

General PC version with monitor
Limit hardness for: CHD 525, depth 0.2 - 1.4 mm CHD 550, depth 0.2 - 1.4 mm CHD 600, depth 0.2 - 1.4 mm
Pedestal, accessories, prisms and test tables on request
Cross laser for test point finding
Data connections
Barcode / QR Code Reader

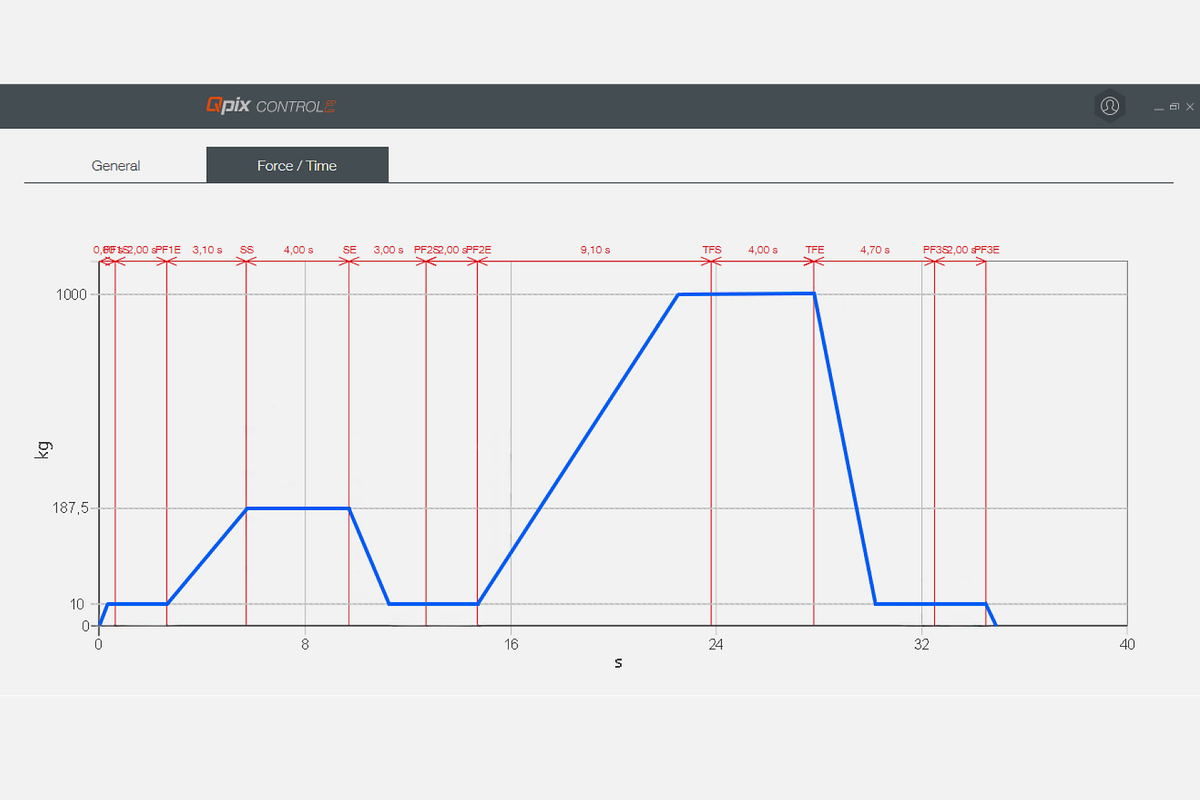

^{Software for evaluation of case hardening depth}
