Cut-off machine Qcut 500 A

The Qcut 500 A is the powerhouse of the large cut-off machine family. Equipped with a highly dynamic axis drive and automatic trave cut/chop cut functions, the system cuts large components with exceptional precision, minimal contact, and outstanding speed.

Fast, powerful cuts: The highly dynamic axis drive allows rapid traverses of up to 80 mm/s and greatly reduces cutting time
Versatile applications: Cutting of particularly long samples is easily possible thanks to side openings on both sides
Multi-Position Process (MPP): Simultaneous positioning and automatic cutting of different components on the machine table

Cut-off machine Qcut 500 A Superiority in detail

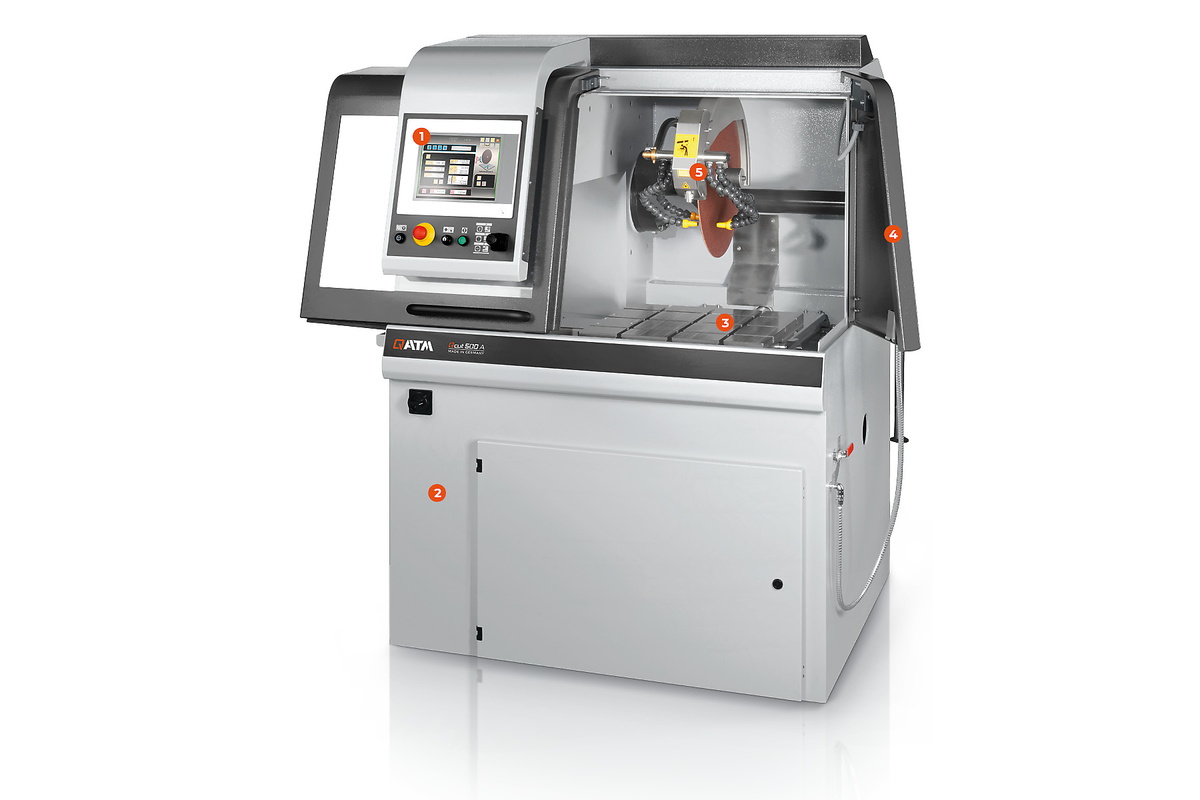

1. Ergonomic control panel

Large 12.1“ industrial touchscreen with intuitive QATM software
Quick setup, control of all axes with joystick

2. Robust machine body

Sturdy powder-coated aluminum construction
Integrable recirculating cooling unit
Automatic central lubrication of the axes

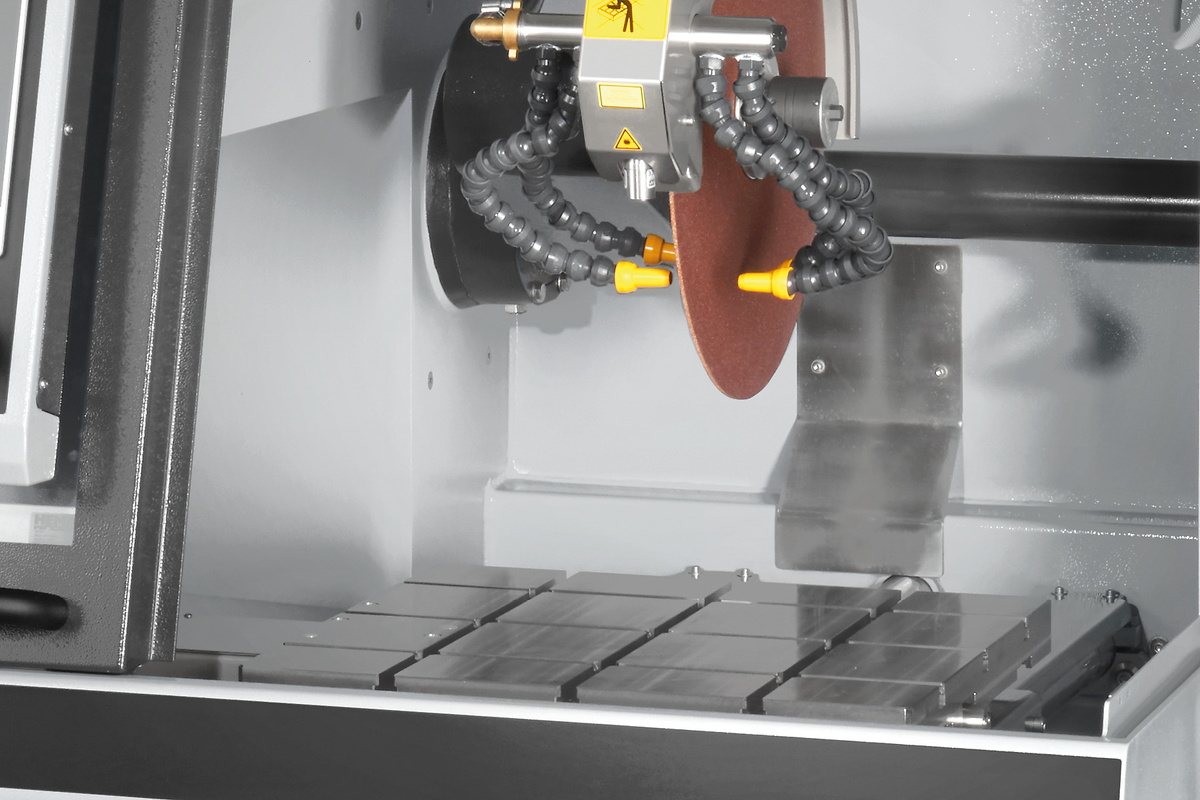

3. Large machine table

Made of stainless steel with integrated longitudinal and cross T-slots
Secure clamping of complex workpiece shapes using the T-slot table or Easy clamping system
Dimensions: 550 x 500 mm (with Z-axis W x D), 700 x 500 mm (without Z-axis W x D)
Load capacity: up to 400 kg
Travel: X: 345 mm, Y: 200 mm, Z: 150mm

4. Large cutting chamber

Large sliding door provides easy access and visibility
Side swing door for convenient access to cutting chamber
Side openings on the right and left for long samples
Break-resistant LED interior lighting

5. Optimized swivel arm

Highly efficient cooling system
Increased cutting capacity thanks to parallel guided cut-off wheel guard
Laser alignment aid for easy workpiece positioning

.

Cut-off machine Qcut 500 A Experience the 3D model in the real world!

AR-Model - Visit the page with your smartphone or scan the QR code under "View in Room" and experience the 3D model in the real world!

Cut-off machine Qcut 500 A Features

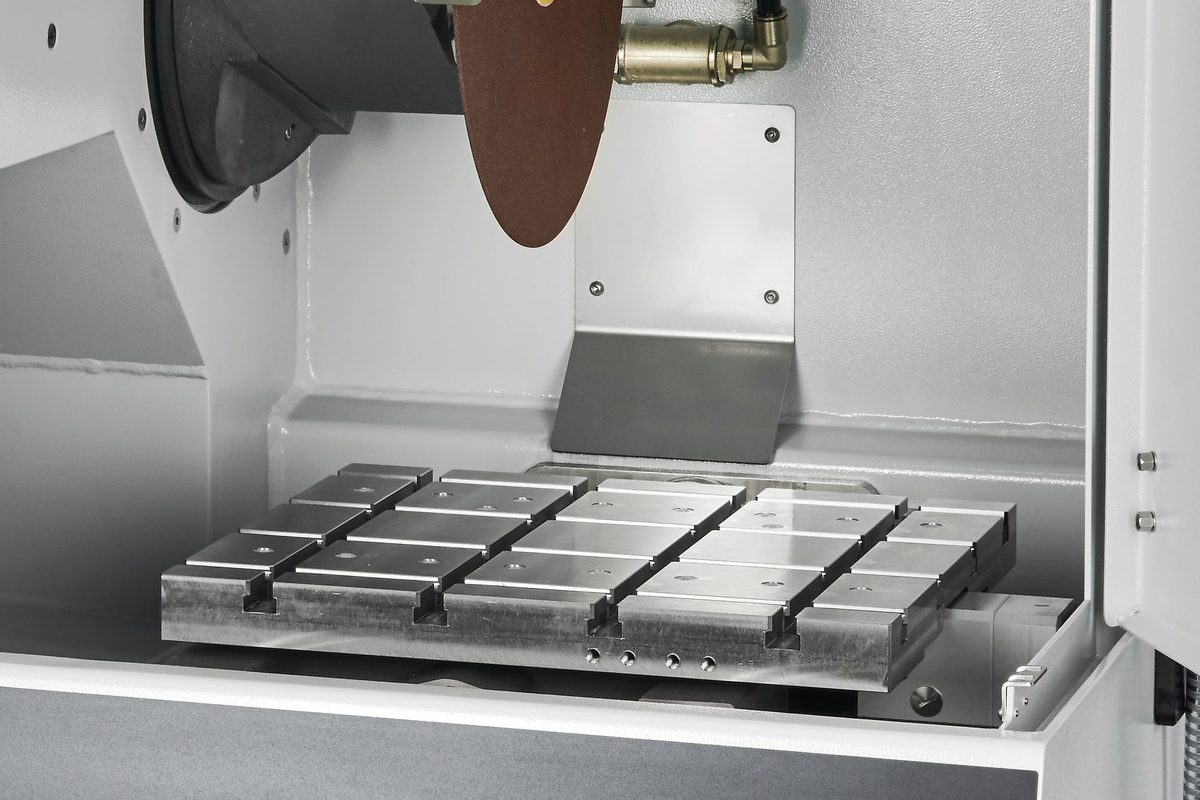

Stainless steel machine table

Spacious machine table enables precise work even under heavy loads.
Integrated T-slots for the Easy clamping system for quick mounting of clamping tools
Efficient and reliable fixation of complex geometries using clamping devices
Load capacity up to 120 kg (including clamping devices)

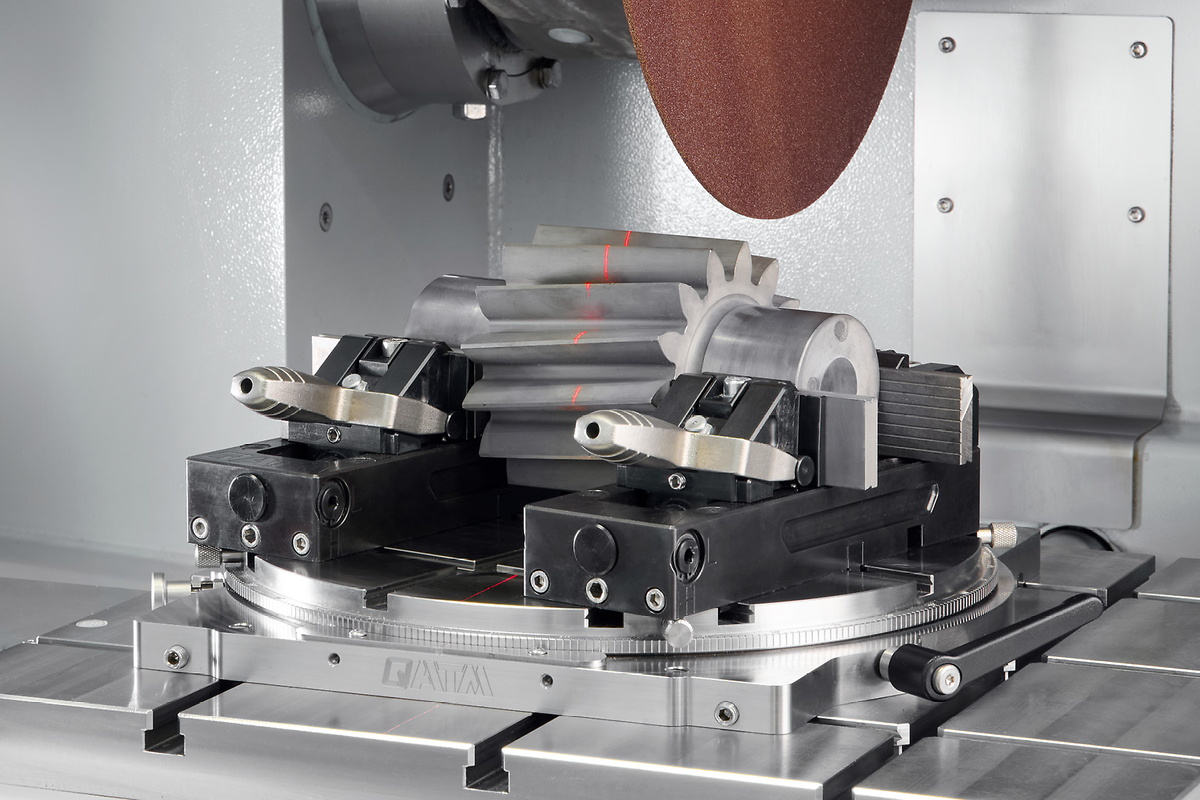

Laser alignment

Optional laser alignment projects the cutting line directly onto the workpiece, enabling precise positioning and exact cut placement.
Easy positioning of workpieces
Precise clamping without much effort

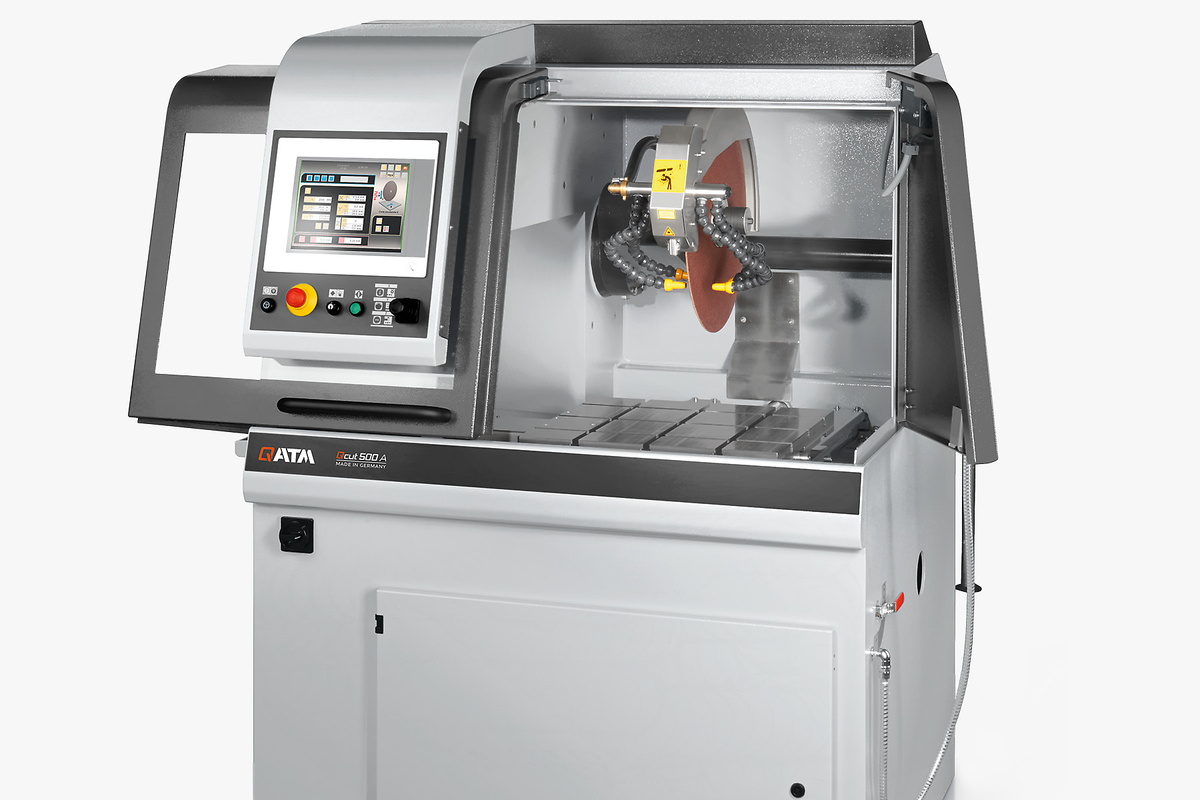

Robust machine with large cutting chamber

Robust, powder-coated aluminum machine body features a large sliding door with scratch-resistant laminated safety glass and convenient side access door.
Machine body with integrable recirculating cooling unit and automatic central lubrication
Large cutting chamber access with safety interlock — doors open only when cut-off wheel is stationary
Side openings on the right and left for long samples

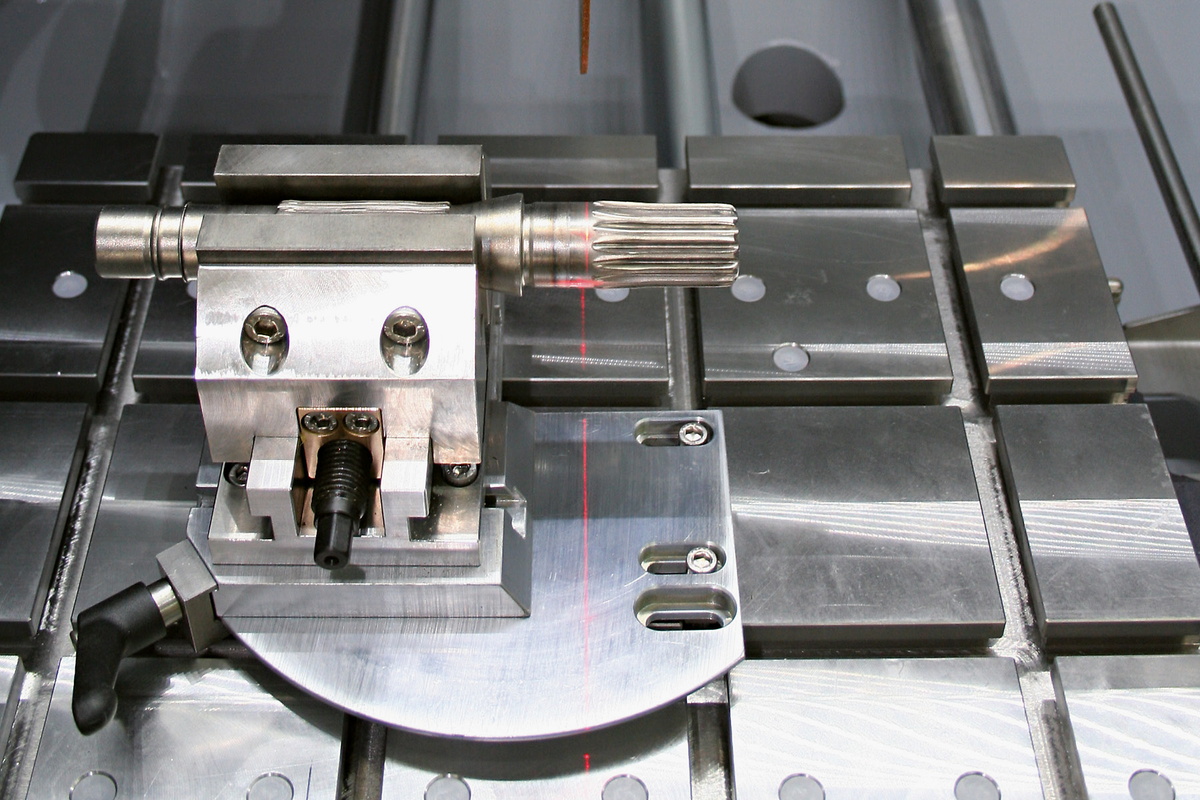

Precision cross feed

The table-integrated Z-axis maintains consistent cutting height while the automatic cross feed with serial cutting function delivers precise parallel cuts.
Simple and intuitive serial cutting
The multi-position process (MPP) allows more complex serial cutting to be carried out

Rotation tool

The optional rotation tool features a vertical rotary feed parallel to the wheel with software-controlled angle input.
More uniform cutting surfaces and cutting quality
Cutting time is halved for rotationally symmetrical parts
Protects against cut-off wheel run-out

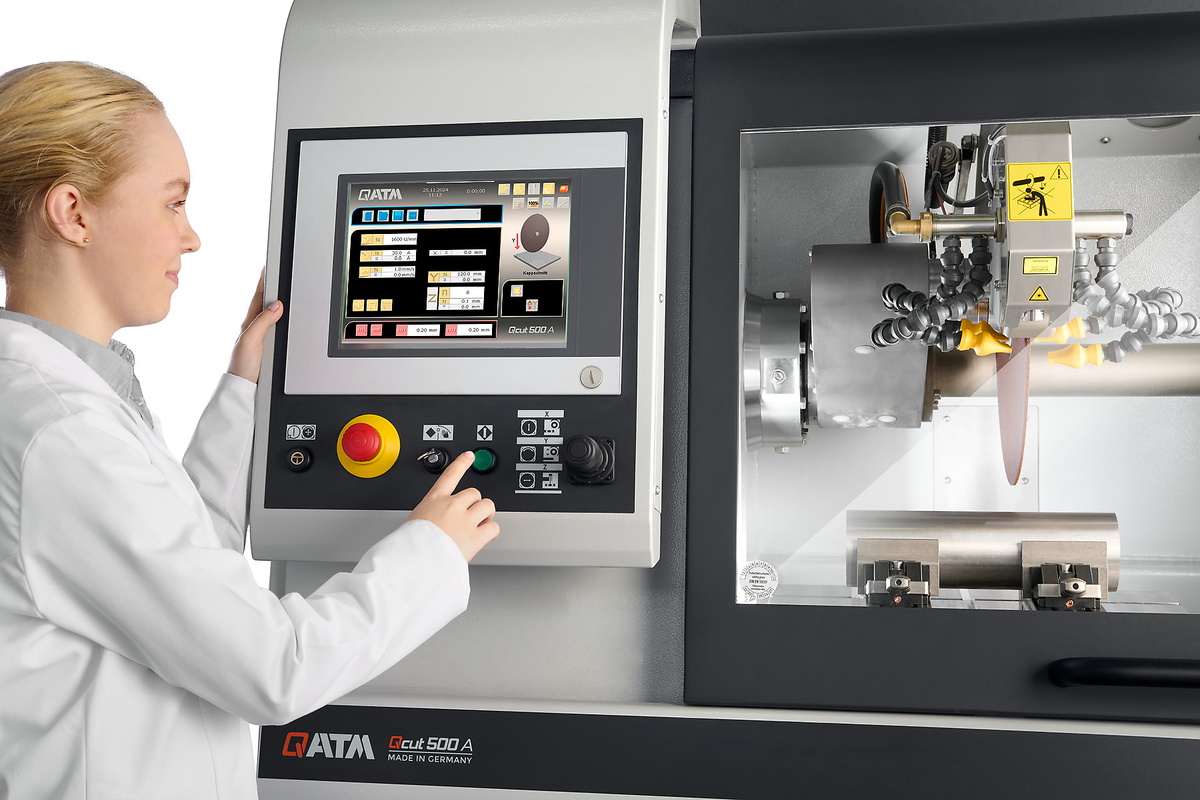

Intuitive and easy operation

Large 12.1” industrial touchscreen with intuitive QATM user software and joystick.

Easily manage process parameters and create customer-specific maintenance tasks (200 user programs can be saved)
Parameters such as feed rate, travel distance, and cutting force can be changed during automatic operation

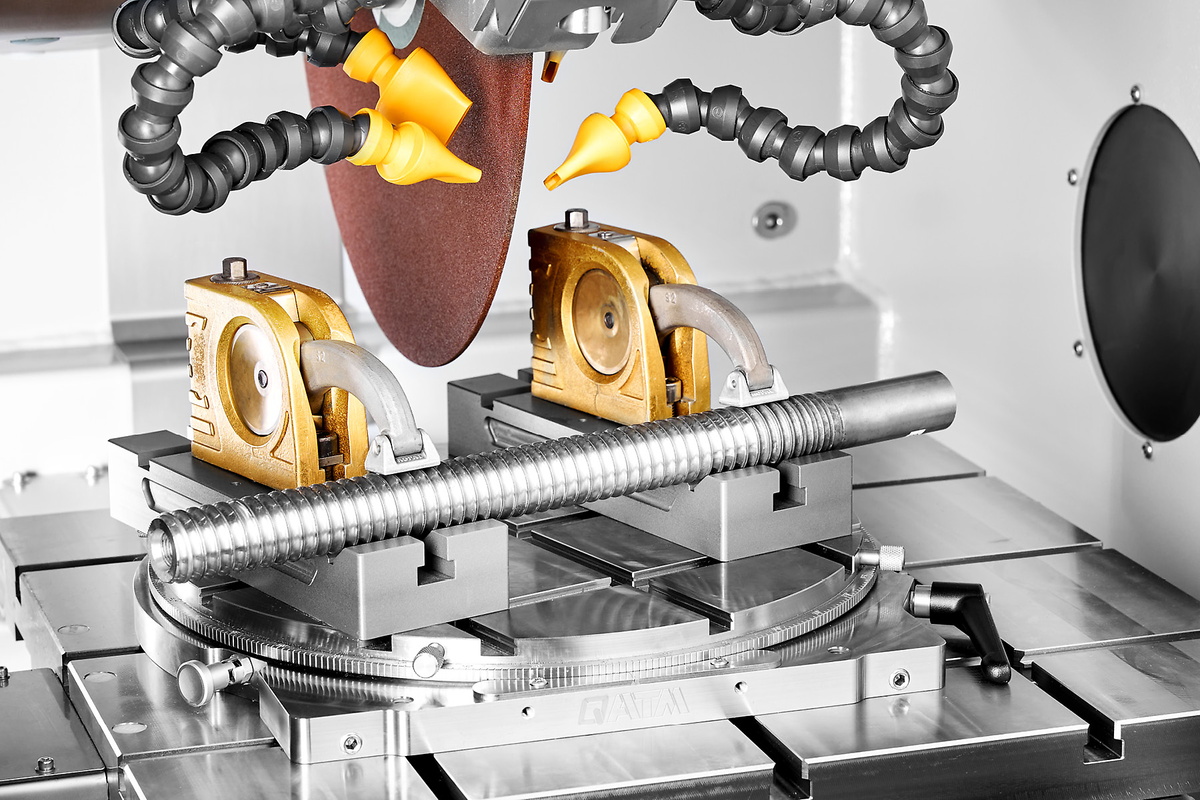

Pulsed cutting

For thick and difficult-to-cut materials, the adjustable automatic pulsed cutting provides gentle sectioning with optimal cooling of the cut interface.
Enhanced cutting results for larger components
Superior cooling of contact surfaces

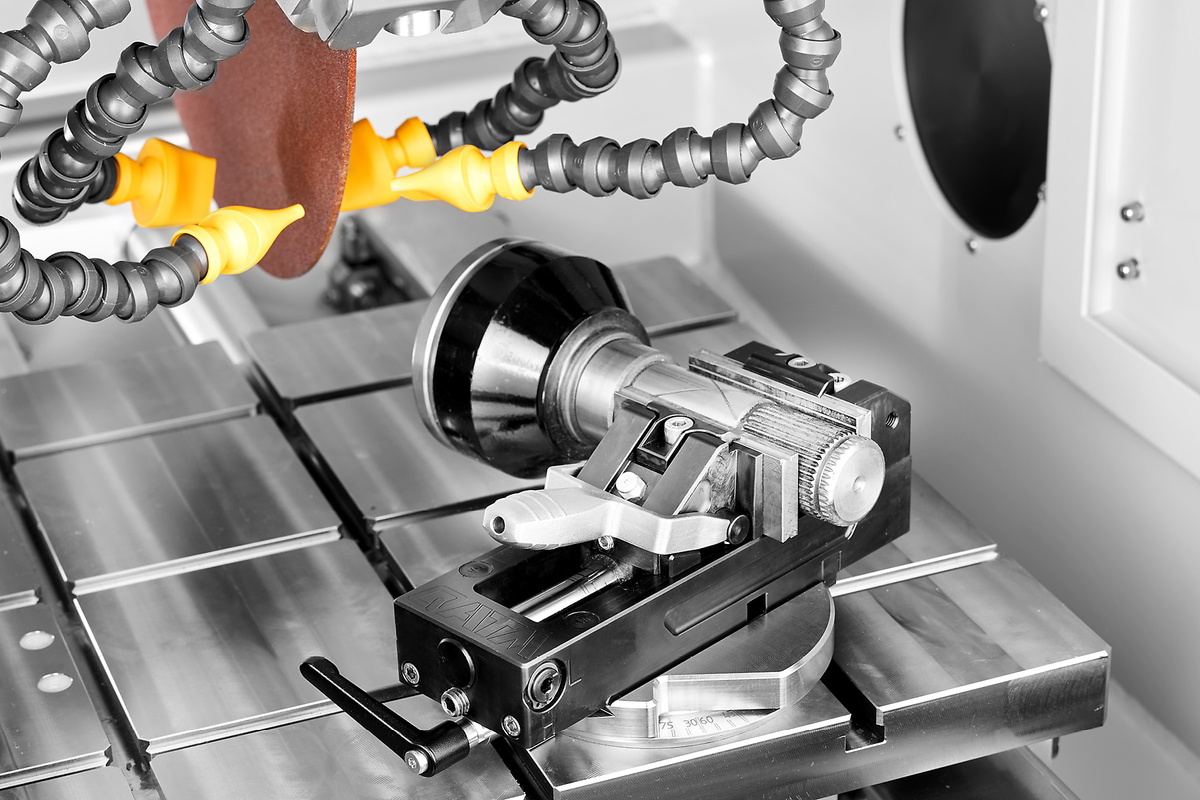

Cutting force dependent feed control (X- and Y-Axis)

The feed rate automatically decreases when cutting force reaches a preset limit, protecting the machine, sample, and clamping tools from overloading.

Time savings thanks to variable feed rate

Cut-off machine Qcut 500 A Accessories

Recirculation cooling unit

Compact, integrable cooling system for standard applications.

Can be integrated into the housing and extended
Multi-chamber filtration
Inlet sieve with filter bag (see consumables)

Belt filter system

Large cooling and filter system for continuous operation, e.g. in serial applications.

Tank size: 285 l
Filtering capacity: 100 l/min (referring emulsion)
Pump capacity: 100 l/min

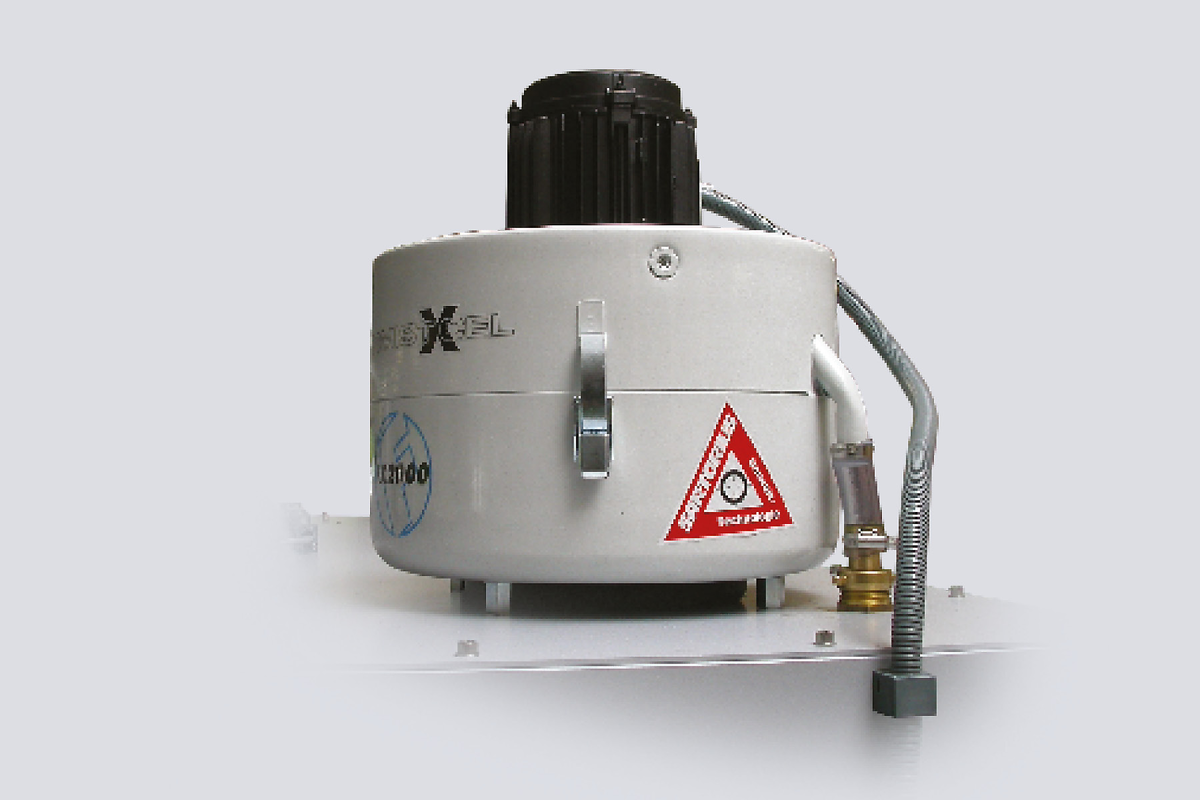

Centrifugal Separator

Work safety: Working environment with improved air quality.

Removes coolant mist
Purifies the air and increases visibility
Exhaust power 452 or 500 m3/h depending on voltage

Perfect cutting - Cut-off wheels from QATM

Cutting is more reliable, safe and efficient when processed with the right ingredients: knowledge, care and the right choice of consumables and instruments. The Qprep range includes specially developed cut-off wheels for a wide variety of materials and requirements.

Low thermal influence on the specimen during the cutting process
Wet abrasive cutting achieves very fine surface finishes after cutting
Optimal cutting shortens the further preparation process

To the product range

Fast, Powerful, Flexible - Qtool Clamping devices

Our innovative clamping devices are used to clamp workpieces securely and precisely to ensure exact cutting and grinding processes. There is a wide range of different clamping devices that have been developed for specific applications and workpiece sizes.

Suitable for regular and irregularly shaped samples
Fast, repeat-accurate clamping of regularly shaped samples
Large range of different clamping tools and systems available

To the product range

Cut-off machine Qcut 500 A Technical Data

Features

Cutting wheel	up to ø 508 mm/20"
Max. cutting capacity	ø 190 mm
Feed rate	0.001 - 50 mm/sec
Wheel flange size	ø 32/40 mm
X-axis automatic	420 mm
Y-axis automatic	280 mm
Z-axis automatic (option)	200 mm
Precision Z-axis	0.1 mm
Table with Z-axis WxD	550 x 500 mm, stainless
Table without Z-axis WxD	700 x 500 mm, stainless
T-slot	12 mm
Speed	variable 1000-2800 /1000-2400 rpm
Connection power	30 KVA
Drive power (main drive)	15 kW, S1 operation

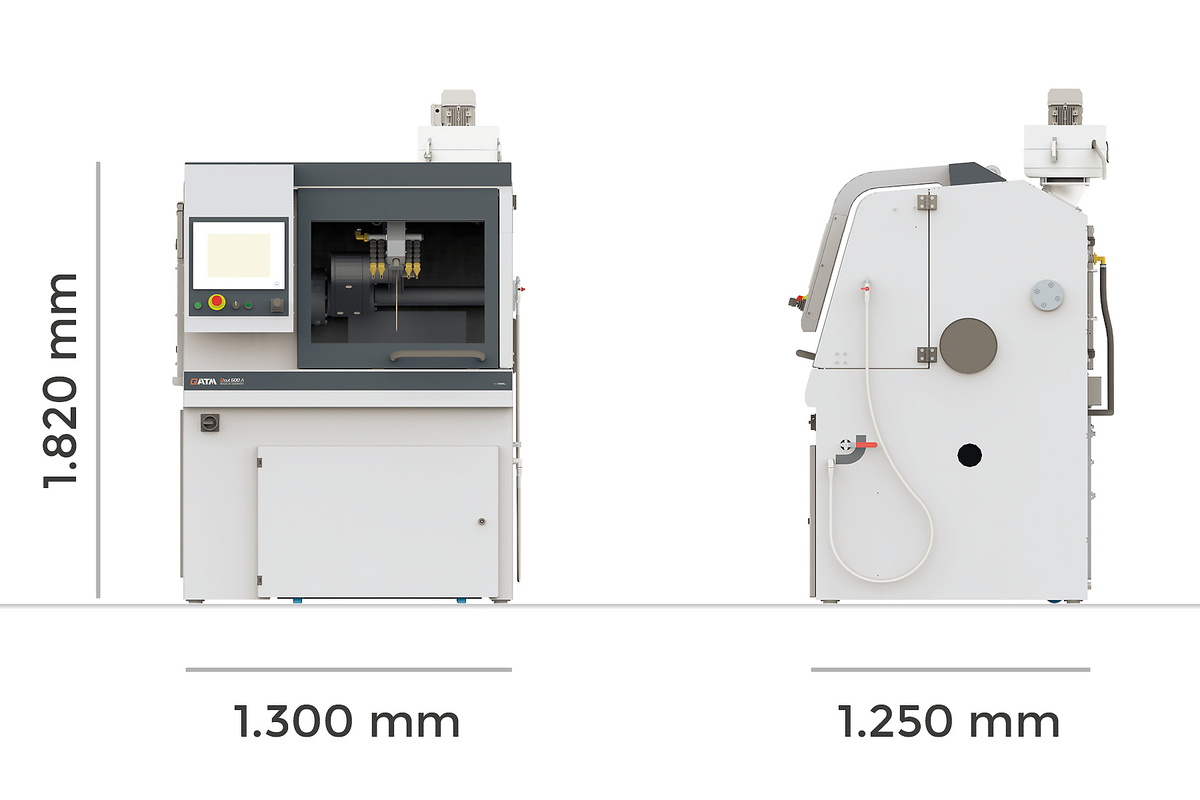

W x H x D	1300 x 1820 x 1250 mm
Weight	~ 1000 kg (depends on equipment)

_{Content may be subject to modifications or corrections}
