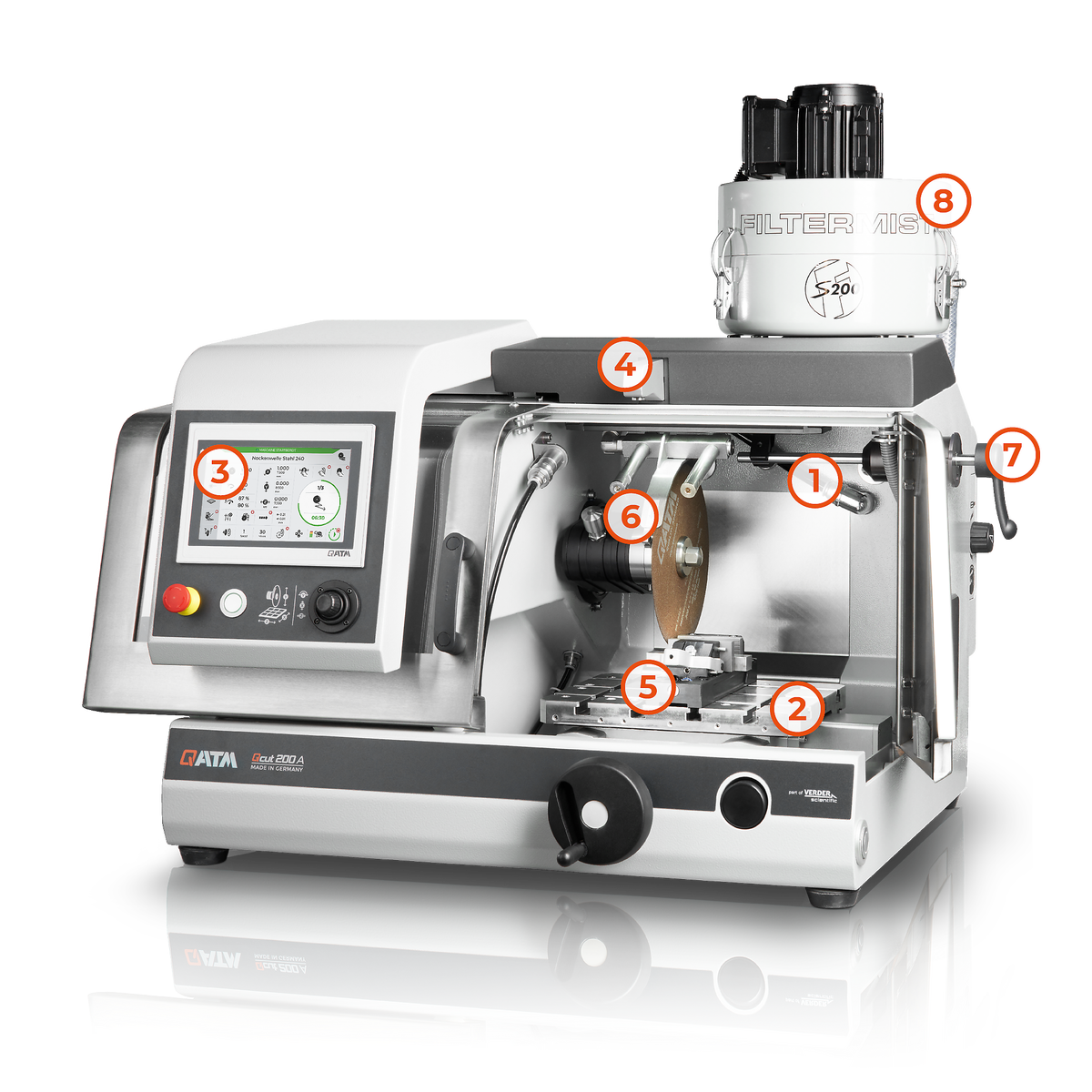

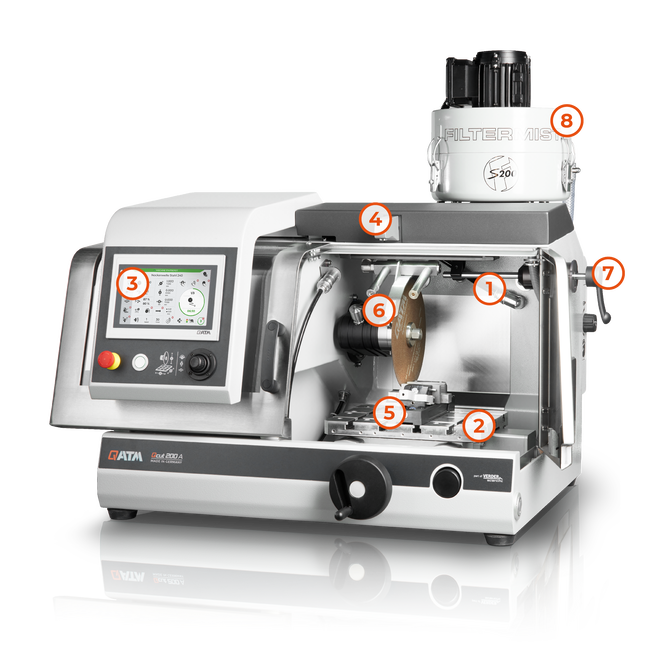

Precision cut-off machine Qcut 200 A

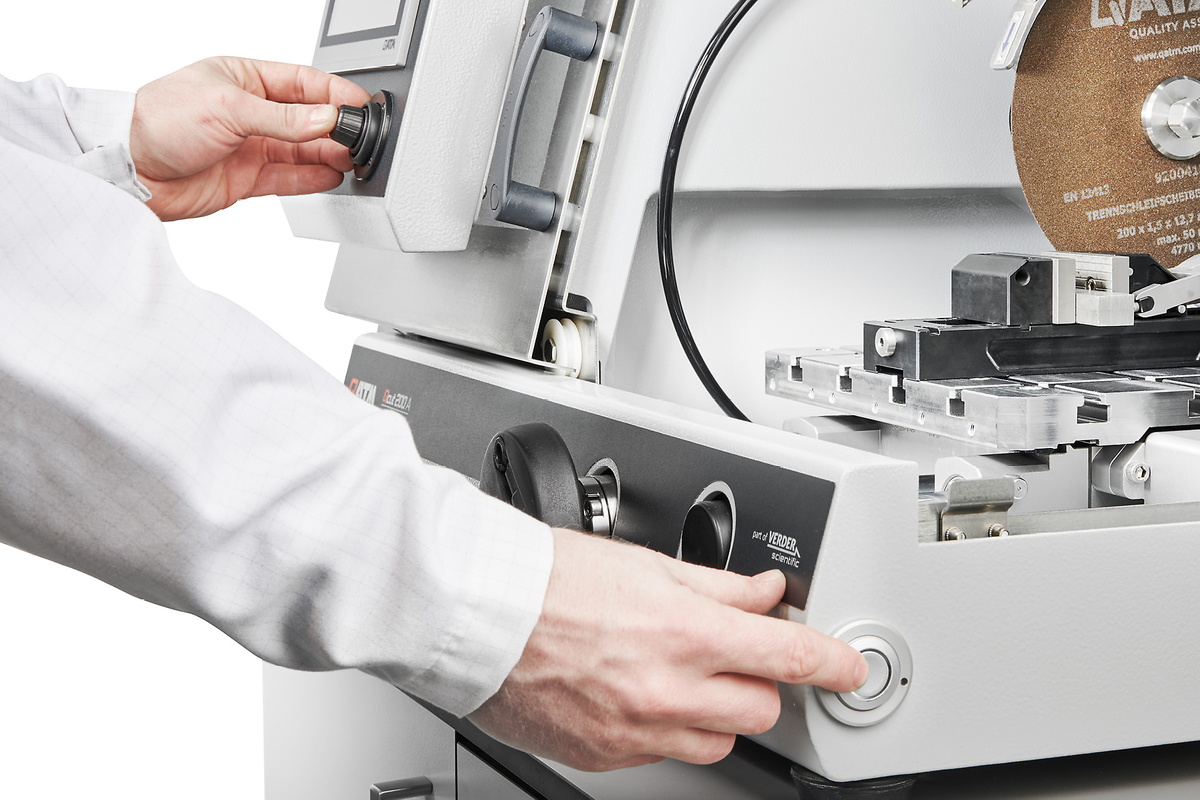

Highest demands of safety

• Due to the enabling switch, the machine can only be positioned via the two-hand control when the door is open.
• The risk of crushing for the machine operator is virtually eliminated

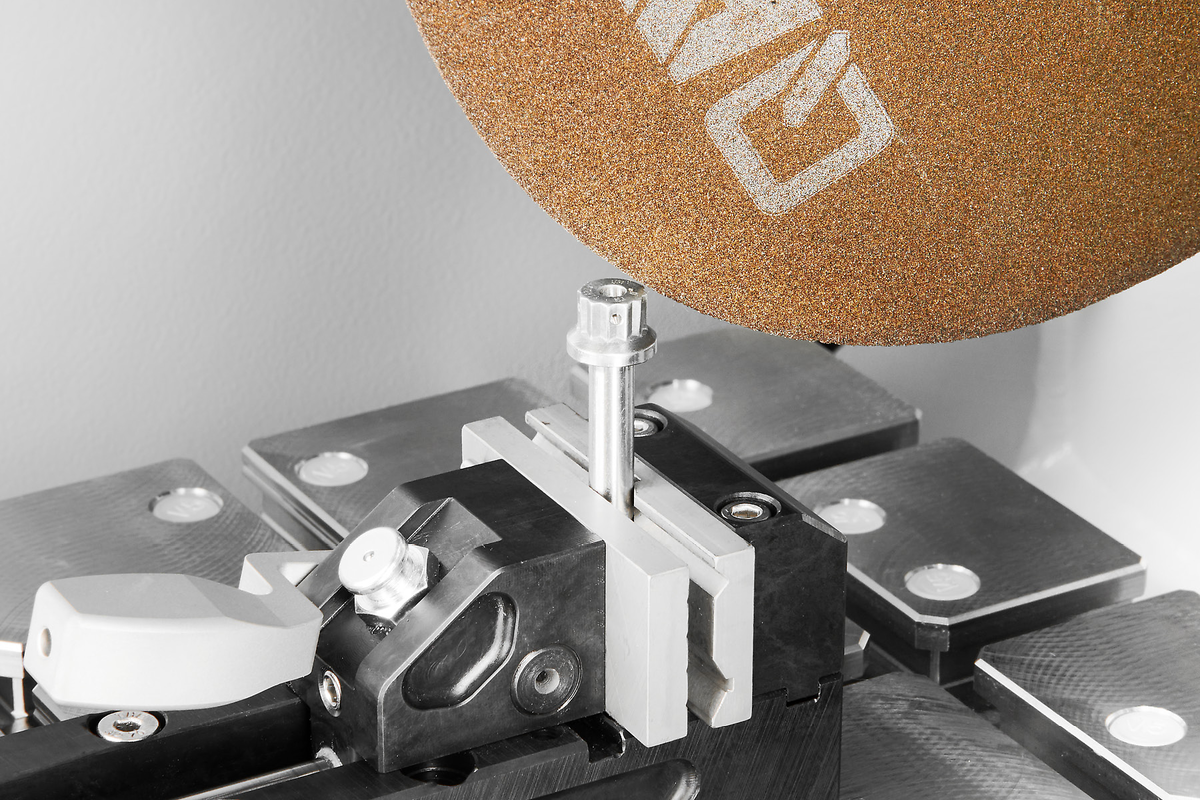

Intelligent component detection

• Proven automatic component detection and a new type of exit detection (auto-stop function)
• Start and end points of the cutting process are automatically detected and process times are shortened

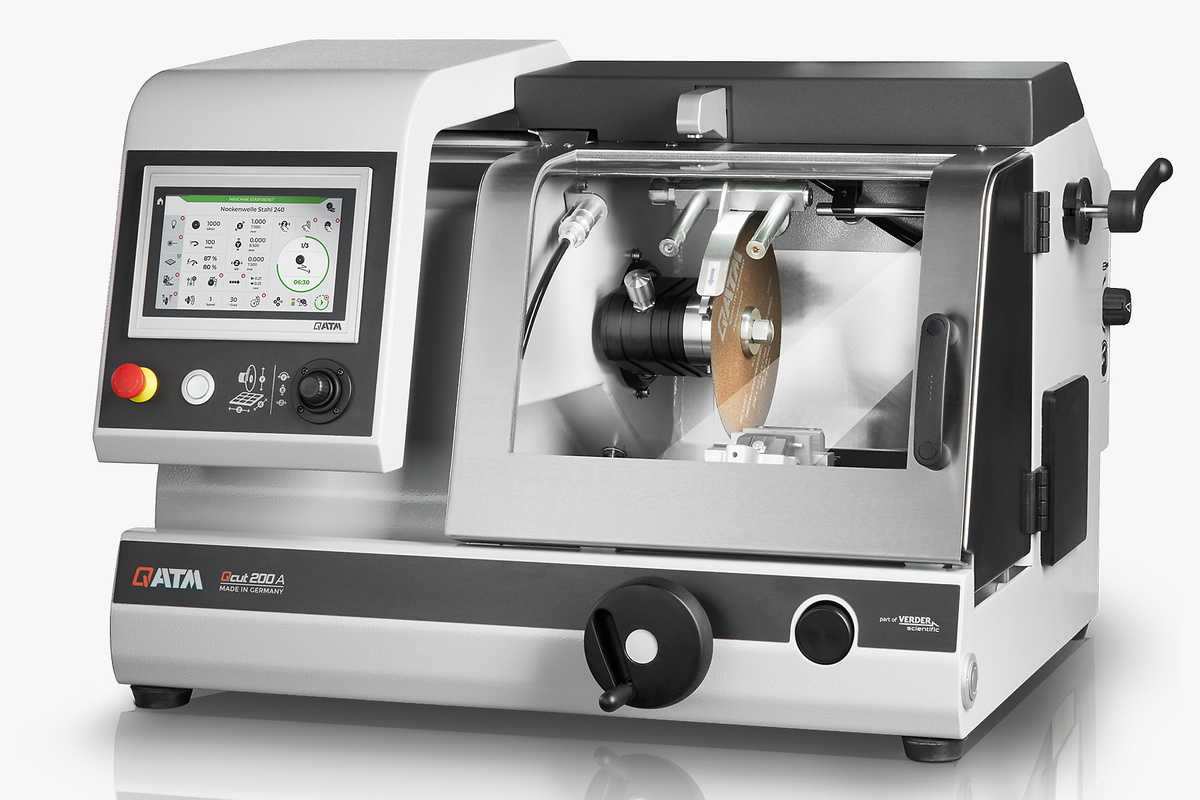

Highest precision thanks to robust design

• Durable and low vibration thanks to stable construction
• Cutting or grinding (using a cup wheel) of delicate samples with maximum precision
• Excellent access to the cutting chamber thanks to large sliding door
• Quick and secure attachment of versatile clamping devices on the large machine table

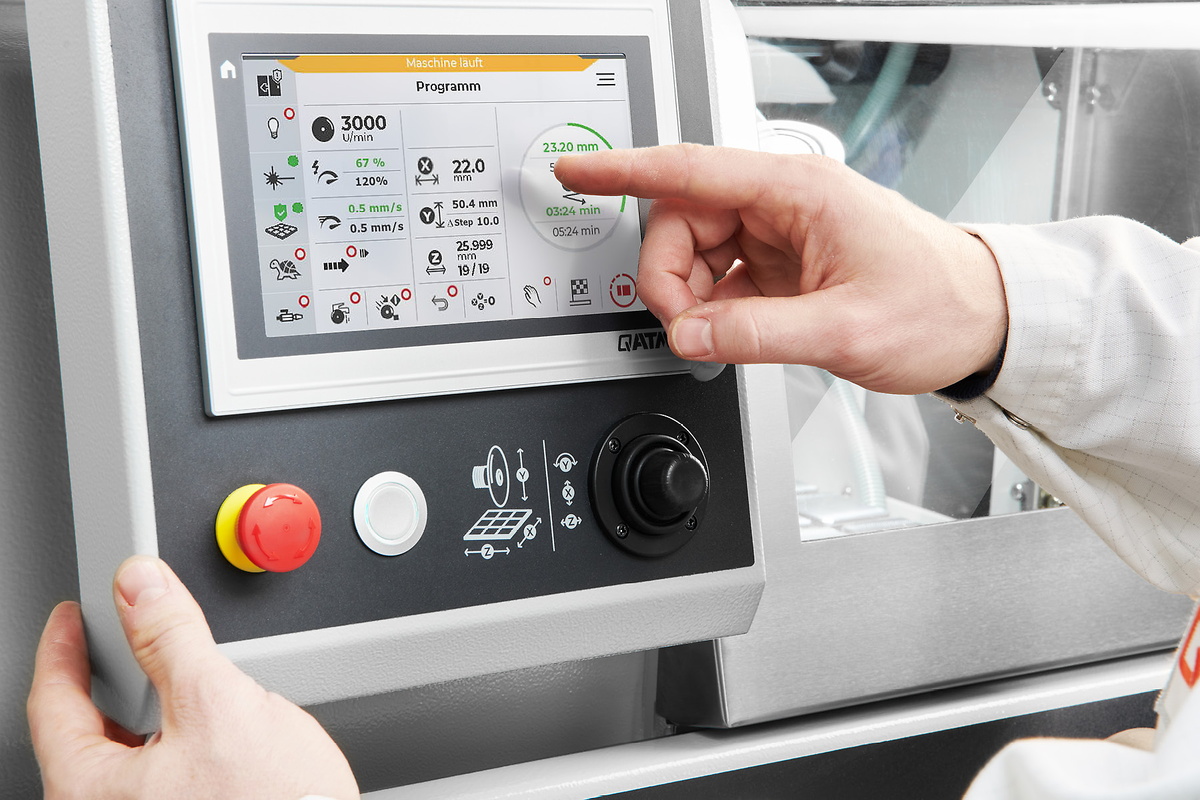

Intuitive and simple operation

• Large 7" industrial touchscreen with ergonomic user guidance
• Easy operation of the user-friendly software
• Comfortable movement of automatic axes using the Joystick

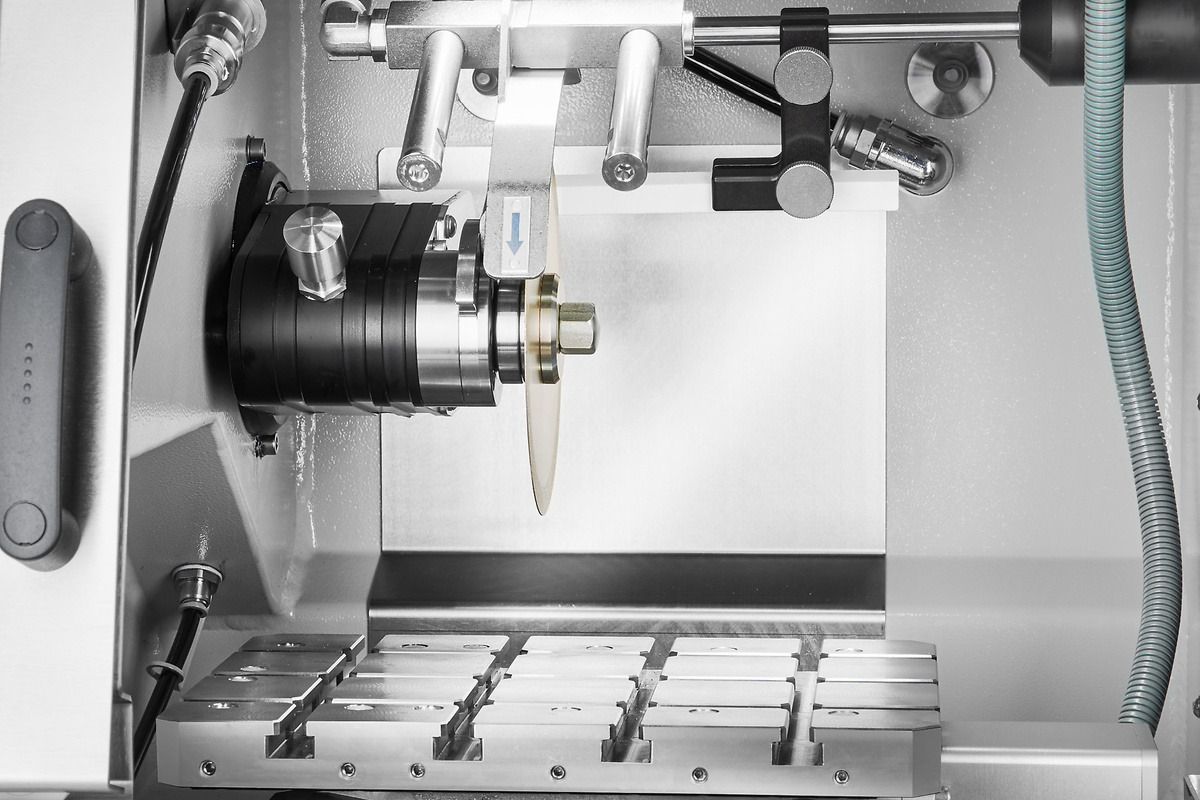

Flow monitoring

• Optional flow monitoring ensures constant cooling of sensitive samples even during long cutting processes
• The cutting process is automatically interrupted as soon as a critical threshold value is reached

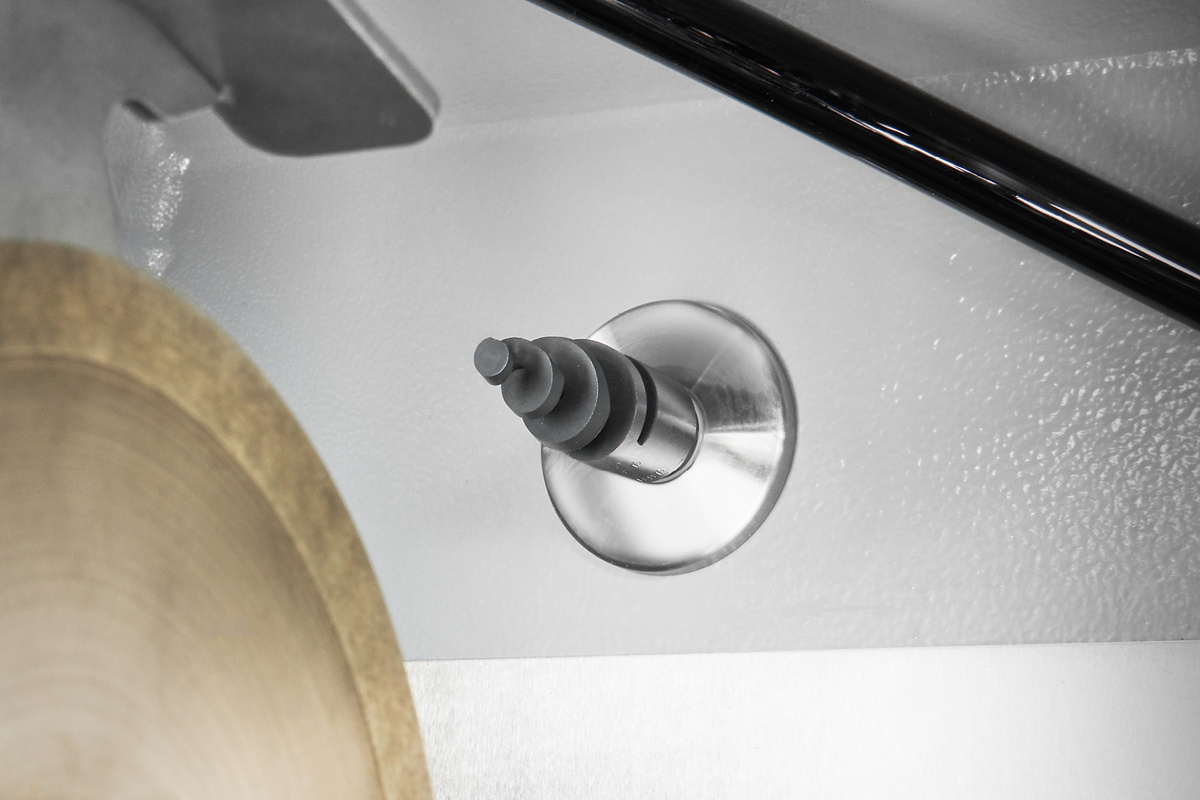

Automatic cleaning function

• Fully automatic machine cleaning thanks to spiral nozzles in the cutting chamber
• Cleaning can be switched on individually and starts automatically after each cut if required
• Clear view during the cutting process: cleaning can be activated during the running process

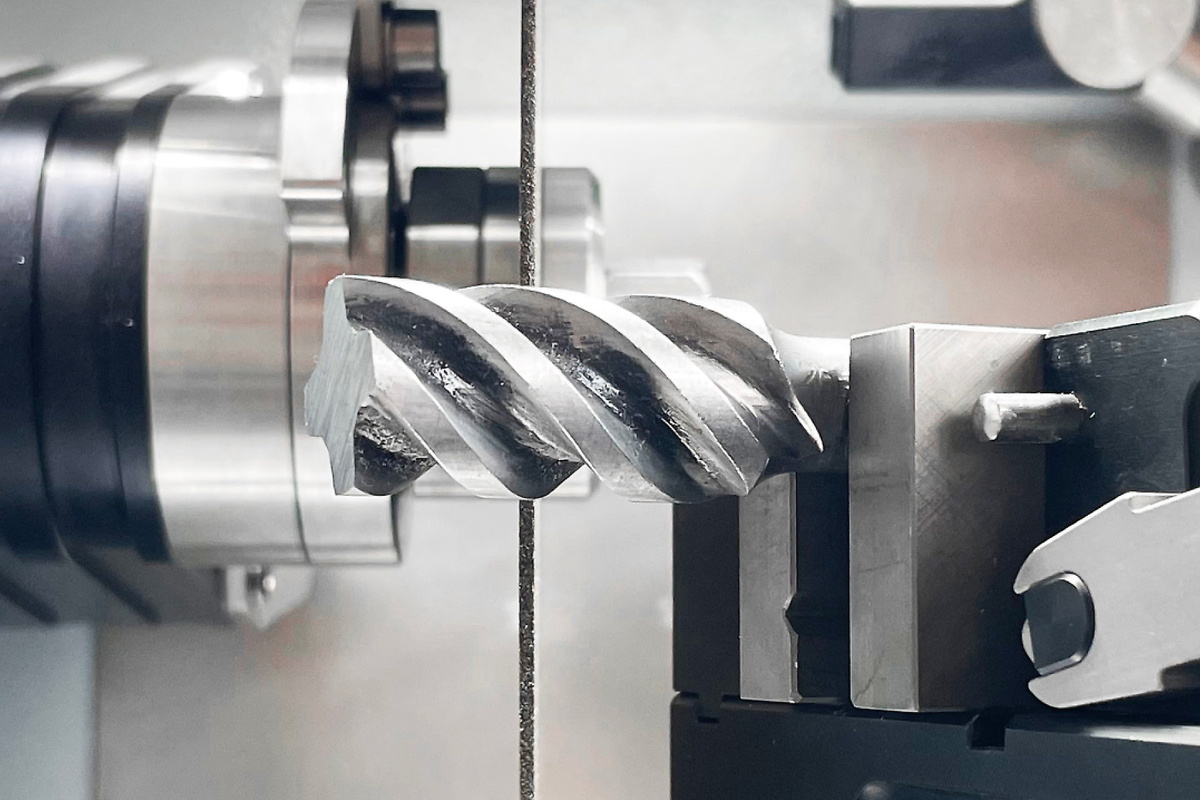

Extensive cutting programs

• Depending on the geometry of the component, the travel or chop cut is used to minimize the contact area to the cut-off wheel
• Cut the workpiece layer by layer and optimize the angle of action using the step cut functions – particularly suitable for solid material

Optimal accessories for Qcut 150 A and 200 A Recirculation cooling systems

Optimal cooling is essential during sectioning. Excessive heat generation during the sectioning process damages the specimen and increases the wear of the cut-off wheel. The cooling and corrosion protection agent dissipates the heat and simultaneously removes the chips from the cut-off chamber.

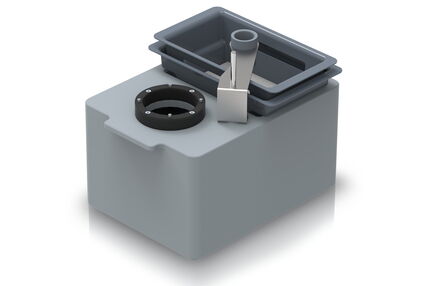

15L Recirculation cooling system

• Portable system with filter cartridge and lid
• Small footprint required
• Easy to integrate into existing laboratory furniture
• Two-chamber system for filtration

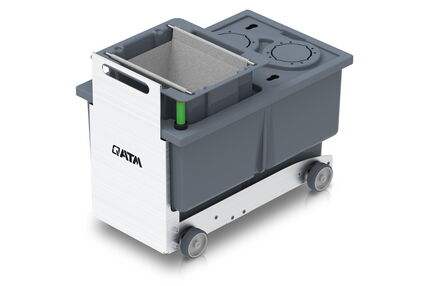

45L Recirculation cooling system (Mobile)

• Mobile unit with inlet strainer, filter bag and overflow
• Can be placed under a lab bench or floor-to-ceiling cabinet
• Expandable with optional pump module for cut-off chamber flushing
• Two-chamber system for filtration with removable separating slide

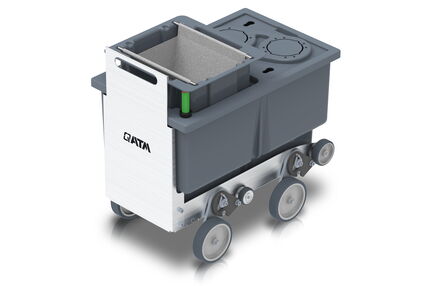

45L Recirculation cooling system (System lab)

• Mobile unit with retractable mechanism
• Can be conveniently integrated into QATM system laboratory cabinets and cabinets with undershelves
• Expandable with optional pump module for cut-off chamber flushing
• Inlet strainer, filter bag and overflow
• Two-chamber system for filtration with removable separating slide
