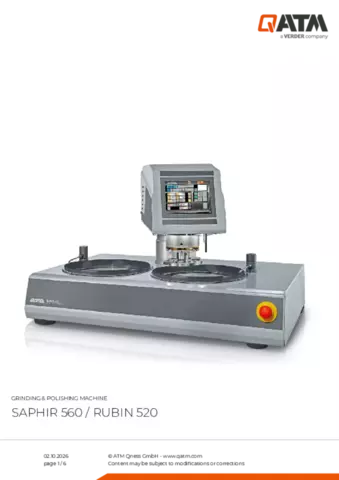

The SAPHIR 560 with RUBIN 520 is a twin wheel grinder and polisher of recent generation with an innovative grinding and polishing head for working wheels Ø 200-300 mm.
The head RUBIN 520 is equipped with an automatic protective hood and sets a new standard for operational safety. Single and central pressure, memory function, integrated dosing system, material removed measurement are only a few of the possibilities.
Motor-driven height setting with pneumatic clamping and all characteristics of the basic unit Saphir 360 meet the highest demands. The removal height can be pre-determined with 0.01 mm accuracy. The material removed measurement takes place automatically. After reaching the preset value, the machine switches off.
Grinding and polishing is more reliable, safe and efficient when processed with the right ingredients: knowledge, care and the right choice of consumables and instruments.
| Working wheels | ø 200-300 mm |
| No. of samples (single pressure) | 1-6 samples ø 50 mm |
| Single pressing force | 5-80 N |
| Central pressing force | depending on holder |
| Connection power | 5.5 kVA |
| Drive power (base) | 2x 0.75 kW S6/40% |
| Drive power (head) | 0.17 kW S1 |
| Speed (grinder) | 50 - 600 rpm |
| Speed (head) | 30 -150 rpm |
| W x H x D | 1020 x 550 - 650 x 660 mm |
| Weight | ~ 110 kg |
| Water connection | 1x fresh water connection R½" max. 6 bars |
