Mobile Image Evaluation

For Portable Evaluation of Brinell Hardness Testing Indentations

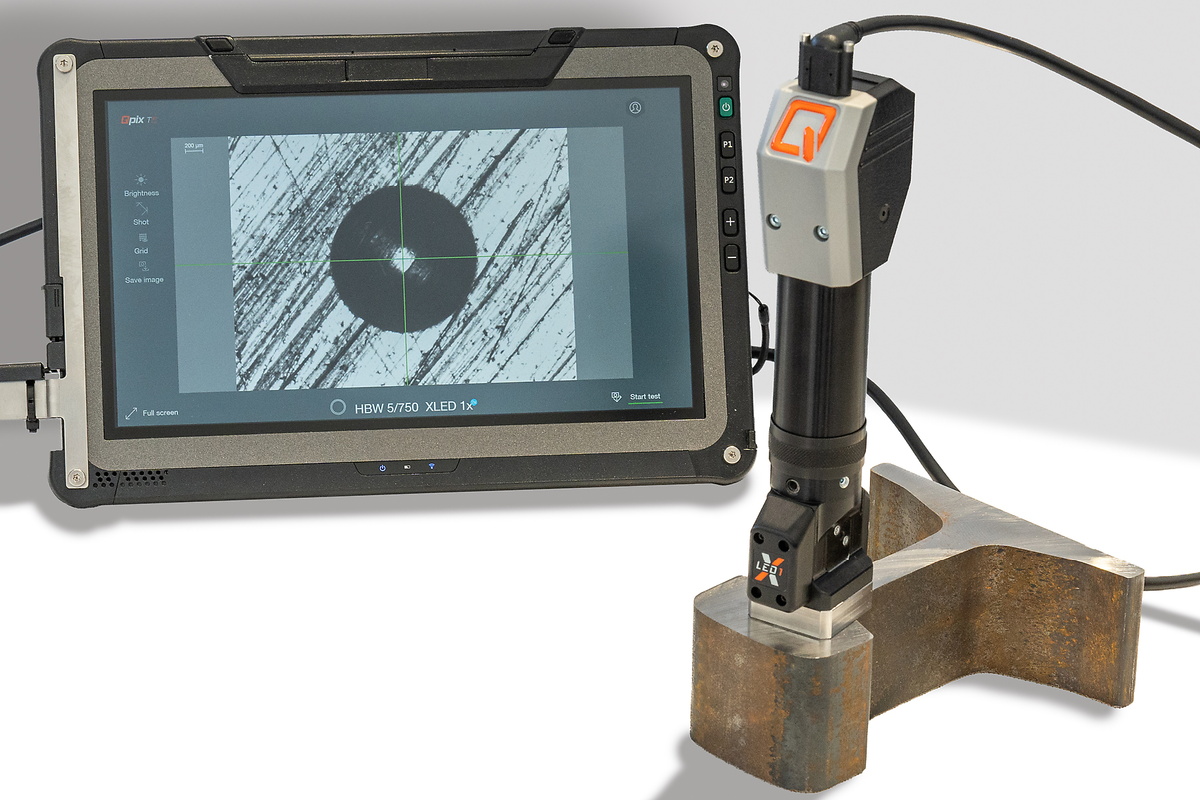

Qmobile EVO is a mobile image evaluation unit for standard-compliant Brinell evaluation in accordance with DIN EN ISO 6506 and ASTM E-10. The user-friendly Qpix T2 software runs on an industrial tablet and enables testing directly in the field for fast data acquisition and quality control.

Product Advantages

Consignment includes case
State-of-the-art technology
QAI Image evaluation via built-in microscope and XLED Optic
Replaceable head for customer-determined applications
Innovative Qpix T2 Software
Industry compatible tablet PC
Data output via interfaces (USB 3.0)
Ergonomic system design

Mobile Image Evaluation Qmobile EVO Features

Evaluation with Brinell XLED technology

Replaceable support

Indirect calibration using a hardness test block

Integrated conversion for measuring the Brinell hardness of shear pin hardness tests, hammer blow method (shear pin - hardness testing) Suitable for steel and cast iron, conversion to HB 30, HRC, kg/mm²

Mobile Image Evaluation Qmobile EVO Technical Data

Hardness test evaluation	Brinell: HBW 10/3000, HBW 5/750, HBW 2.5/187.5
Field of view	7.9 x 5.9 mm
Camera	5 Megapixel
Interfaces	1 x USB 3.0
Weight of Qmobile EVO	0.7 kg
Tablet screen	11.6”
Options	Operation via external PC
