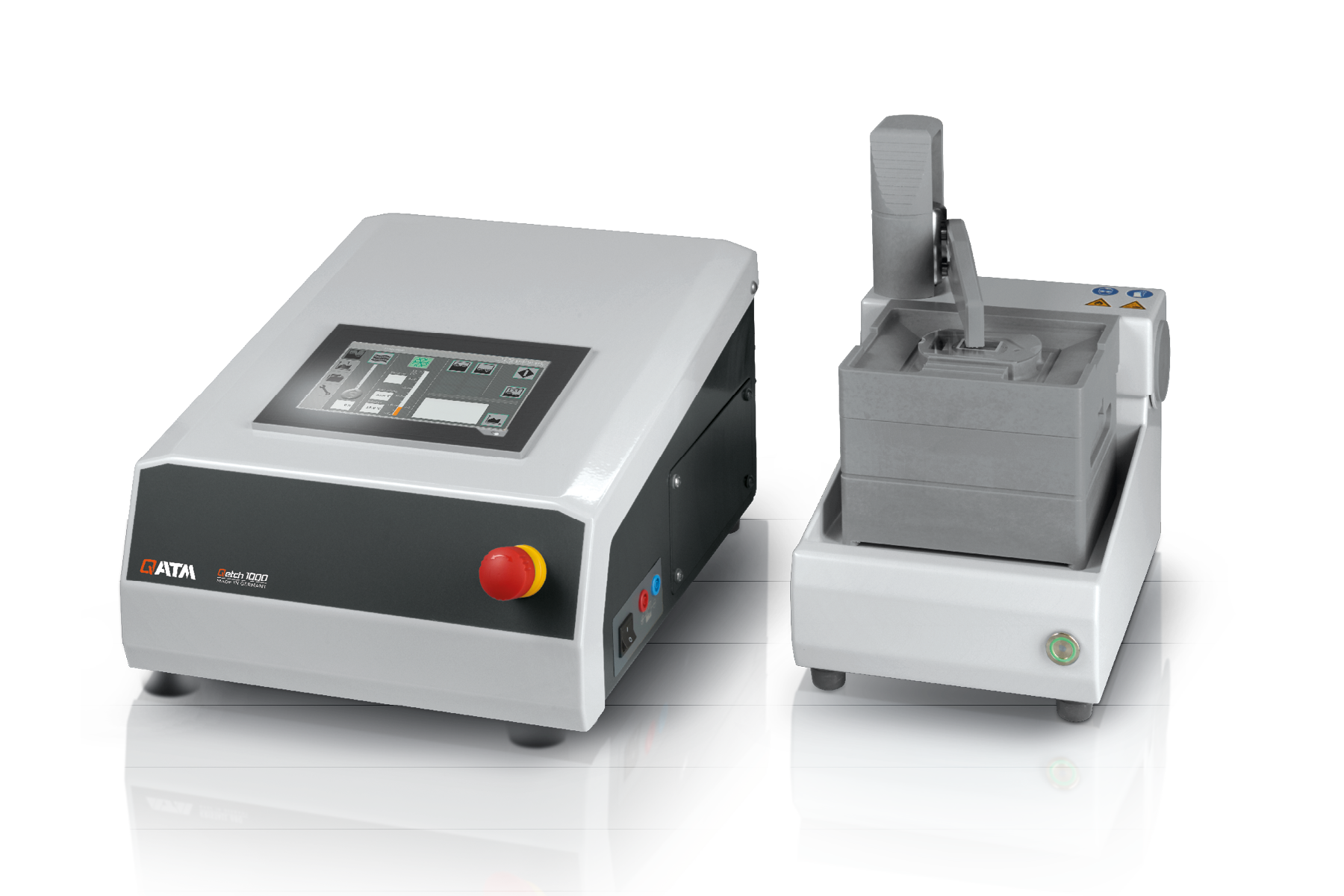

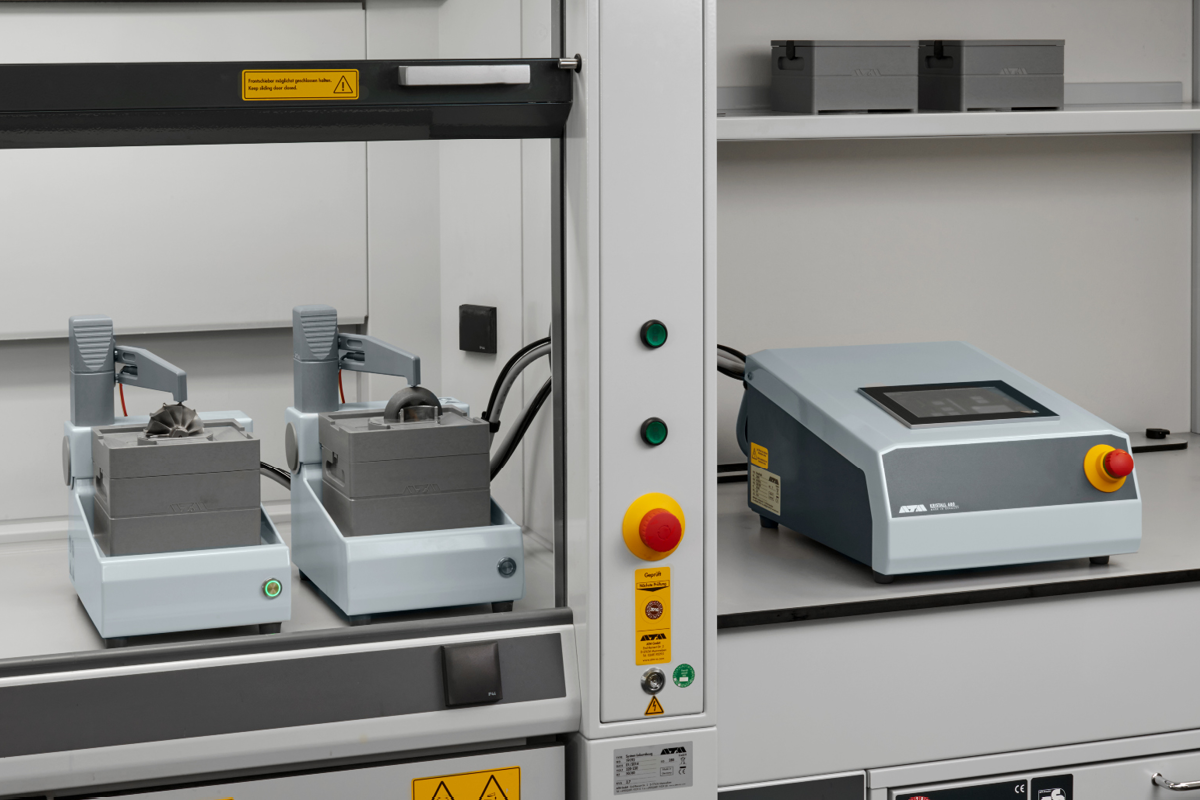

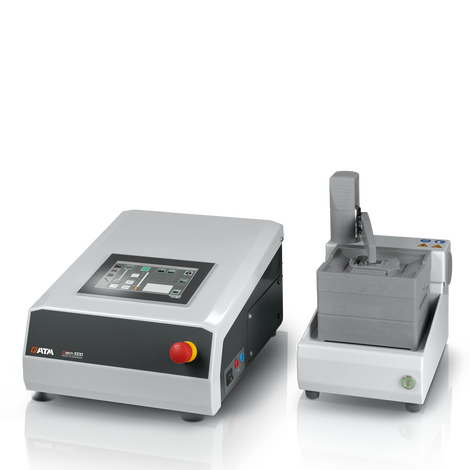

The Qetch 1000 is a fully automatic electrolytic polisher and etcher with intuitive touch-screen operation. Polishing and etching unit and control unit are separated, also the Qetch 1000 can be used in the lab fume cabinet. A scan function displays the current voltage curve of a material and provides polishing results quickly without structural changes.
Handling of the polishing and etching unit was facilitated significantly by the interchangeable 1 ltr. electrolytic tanks. Different electrolytes can be changed and easily stored with lid. The unit is cleaned with water by a washing program
Product Advantages
- Automatic, electrolytic polishing & etching device
- Touch-screen display with QATM-software control
- Up to 200 programs with all parameters storable, protected per password
- Current & voltage diagram in real time
- Variable output voltage and process duration

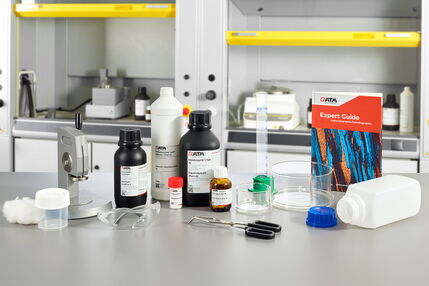

Perfect Etching - Consumables by QATM
Etching is more reliable, safer and more efficient when performed with the right equipment: Knowledge, exercising care and the right choice of consumables and equipment are crucial.
Electrolytic Polishing & Etching Machine Qetch 1000 Technical Data
| Connection power | 2 kVA |
|---|---|
| Max. voltage | 90 V DC |
| Max. current | 14 A |
| Polishing duration | 1 sec - 25 min |
| Etching duration | 1 sec - 5 min |

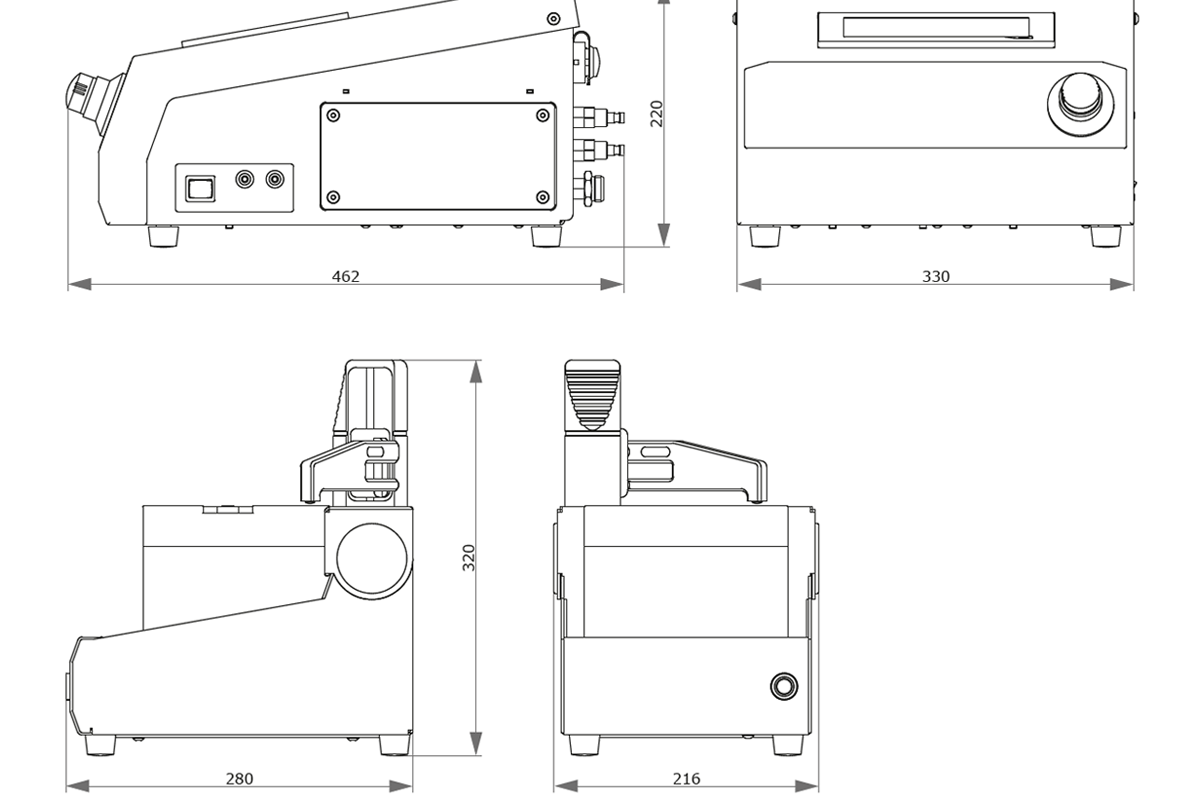

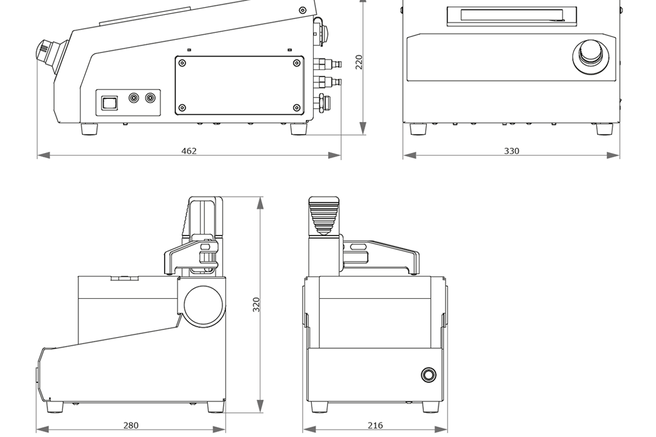

| W x H x D | 330 x 220 x 400mm |
| Weight | ~ 7 kg |
Electrolytic Polishing & Etching Machine Qetch 1000 Downloads
Consumables

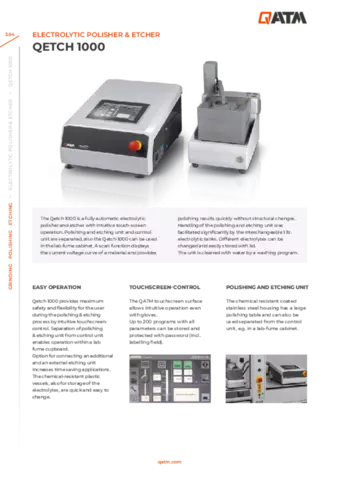

Product data sheet Qetch 1000
