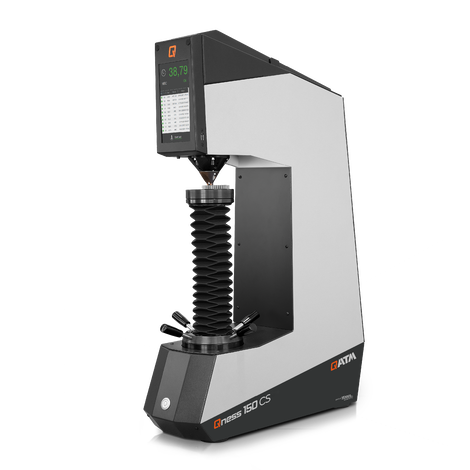

The Rockwell hardness tester Qness 150 CS combines high-quality workmanship with maximum operation simplicity. The characteristic "C" shaped machine frame in robust and compact design (“S” for “small”) gives the product its name.
The proven concept with fixed test head and up/down moving spindle has been standard in Rockwell hardness testing for many decades and is ideally suited for small to medium-sized test pieces and application in almost any work surroundings.
Product Advantages
- Large test force range (1 kg - 250 kg)
- Direct depth gauging system
- Robust, welded steel frame
- High-quality steel sheet covers
- Integrated LED workspace lighting
- Capacitive 7” touch screen display
Product Video
Rockwell Hardness Tester QNESS 150 CS
Normcompliant with a direct depth-gauging system
Maximum QATM-Standard precision
QATM configures the Rockwell hardness tester Qness 150 CS and CSA+ with a direct, ultra-precise HEIDENHAIN depth-gauging system, positioned exactly on the axis of the indenter. This omits measurement inaccuracies caused by deformation in the system. Another unbeatable benefit: Indenting depth can be gauged directly – and can be easily calibrated in accordance with the latest Rockwell norms.
Rockwell Hardness Tester QNESS 150 CS
Test Methods & Force Range
| HBT (not acc. to standards) |
| HVT (not acc. to standards) |
| Plastics |
|---|
DIN EN ISO 2039
| 49.03 N | 132.9 N | 357.9 N | 961 N |
Integrated conversions: DIN EN ISO 18265, DIN EN ISO 50150, ASTM E140
IoT - Internet of things The platform for remote access to your devices
All QATM hardness testers with QpixControl2 and QpixT2 software seamlessly integrate into the Verder Scientific IoT platform, providing enhanced functionality and seamless connectivity.
- Real-time Monitoring: Monitor your machinery in real time, from anywhere in the world. This data-driven approach empowers you to make informed decisions with ease.
- Live Notifications: Be ahead of the curve with immediate alerts and updates. Real-time notifications ensure you stay informed about your equipment's performance, leading to proactive maintenance.
- Effortless Backup: Simplify your data protection. Whether you need to back up a single device or an entire fleet, our platform streamlines the process, minimizing downtime and data loss.
- Automatic & Free Software Updates: Bid farewell to manual updates! Verder Scientific IoT ensures your customers' machines are consistently equipped with the latest software, optimizing performance and reliability.
Rockwell Hardness Tester QNESS 150 CS Sophisticated Construction, Ultra-Simple Operation
Compact Design - Latest technology
- Controlled force application (1kg to 250kg)
- Machine versions to serve all applications and test piece size
- Direct depth-gauge-system (0.05μm resolution)
- Robust welded steel frame and sheet steel covers

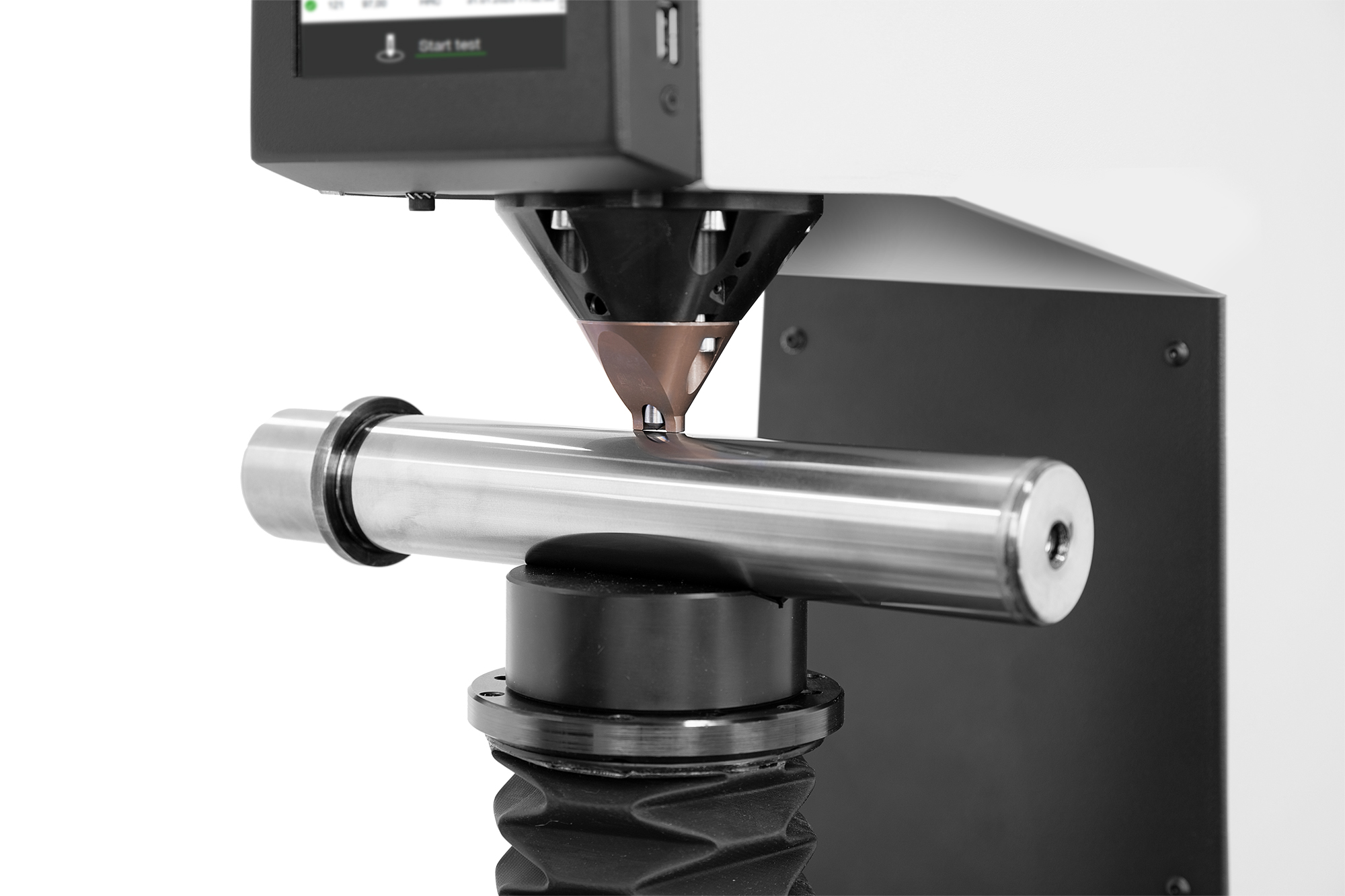

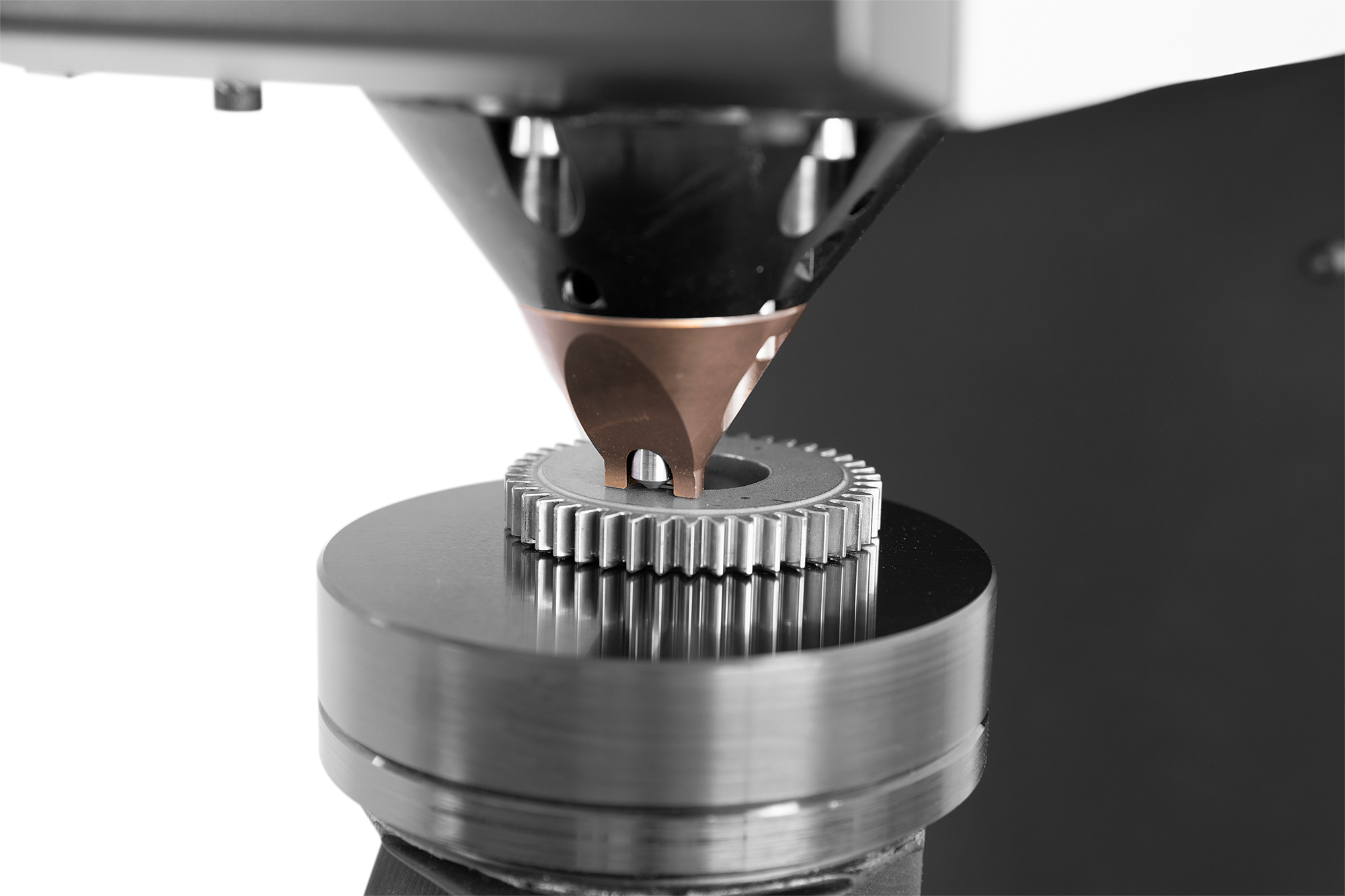

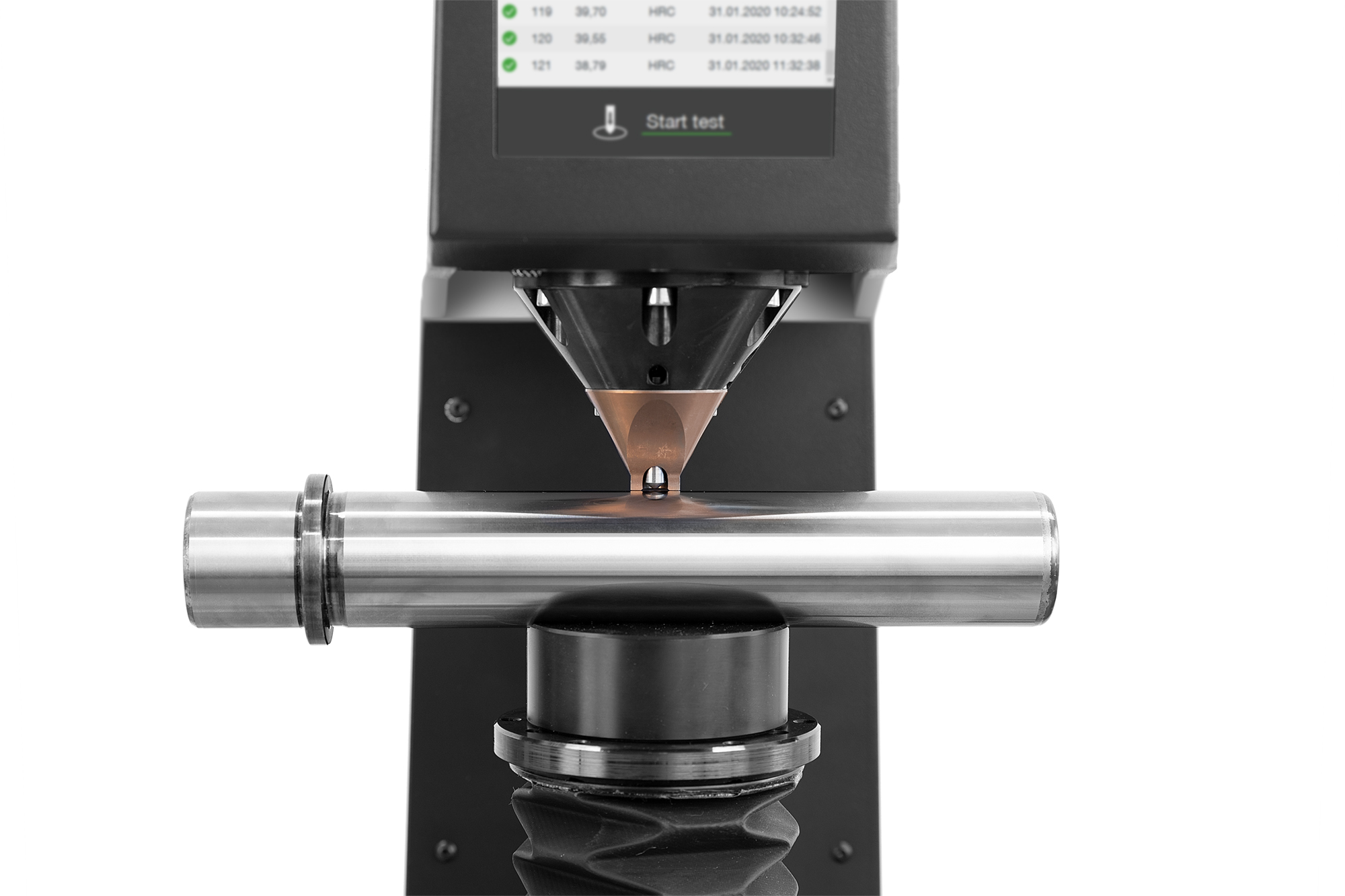

Removable downholder
No need for long retooling breaks due to inaccessible test points. The clamping head can be removed via 2 screws. Now, even test points in hard-to-reach contours can be accessed with ease.
Made in Austria
Unmatched in its class! We know how important a long-serving superior-quality device can be and guarantee excellent quality from our new Rockwell hardness tester series. Developed and manufactured in Austria!
Rockwell Hardness Tester QNESS 150 CS Intuitive features and operation

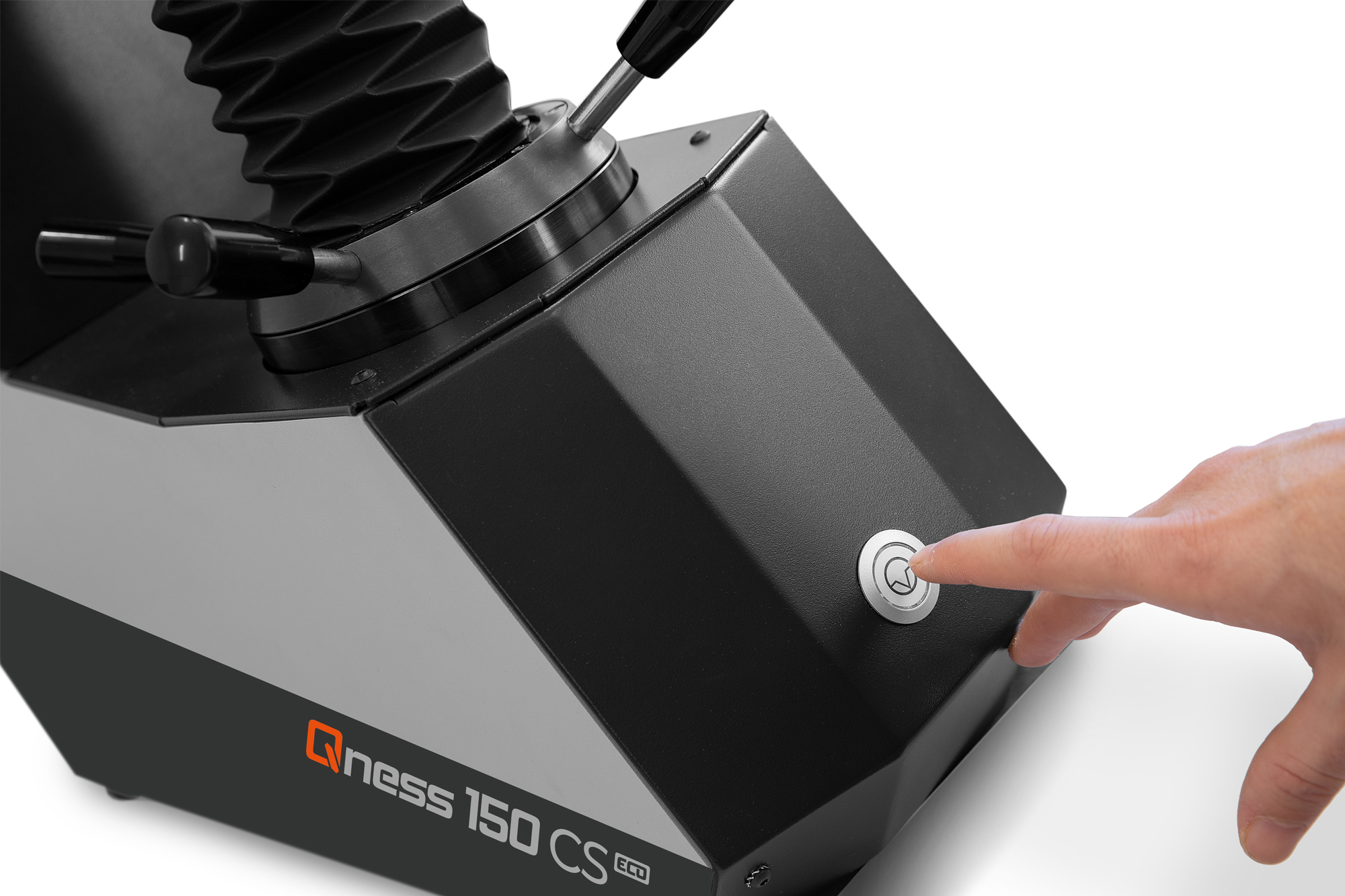

Start Button
Simple and rapid start via the start button at the front of the Rockwell hardness tester (particularly when wearing gloves) or via touchscreen control.

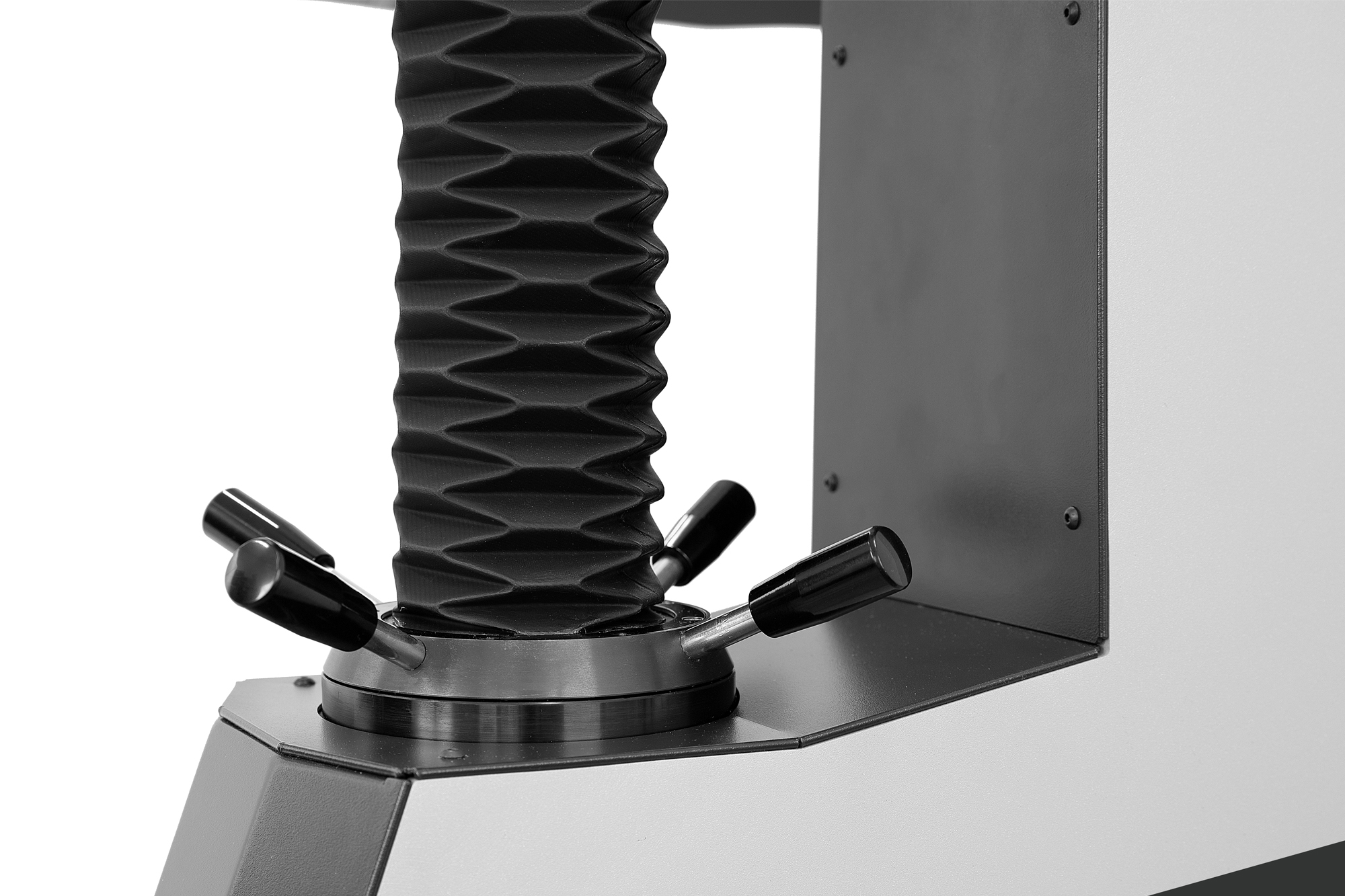

Test table height adjustment
Via stable, ultra-precise roller-bearing spindle guide. Solid, nomaintenance structure. Each Rockwell hardness tester is available with a Ø25 mm table mount (optional ¾” adapter available) facilitating the use of a wide range of test tables and devices.

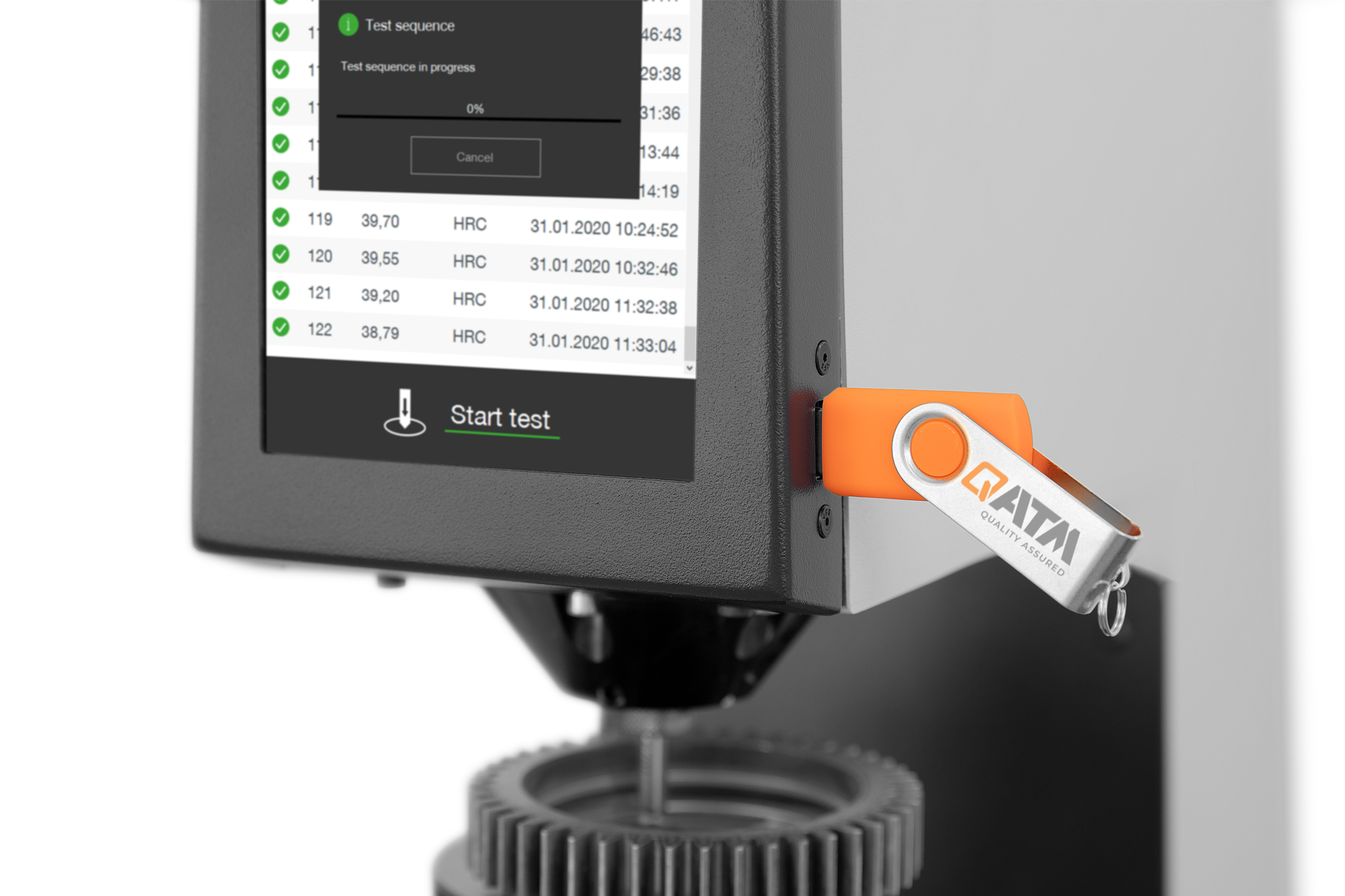

Digital data export
Test results and all related information can be transferred to other data storage mediums via the USB port at the side.
The perfect introduction to Rockwell hardness testing
Built-in LED workspace lighting simplifies the precise positioning of the test piece, thus enhancing operating convenience.

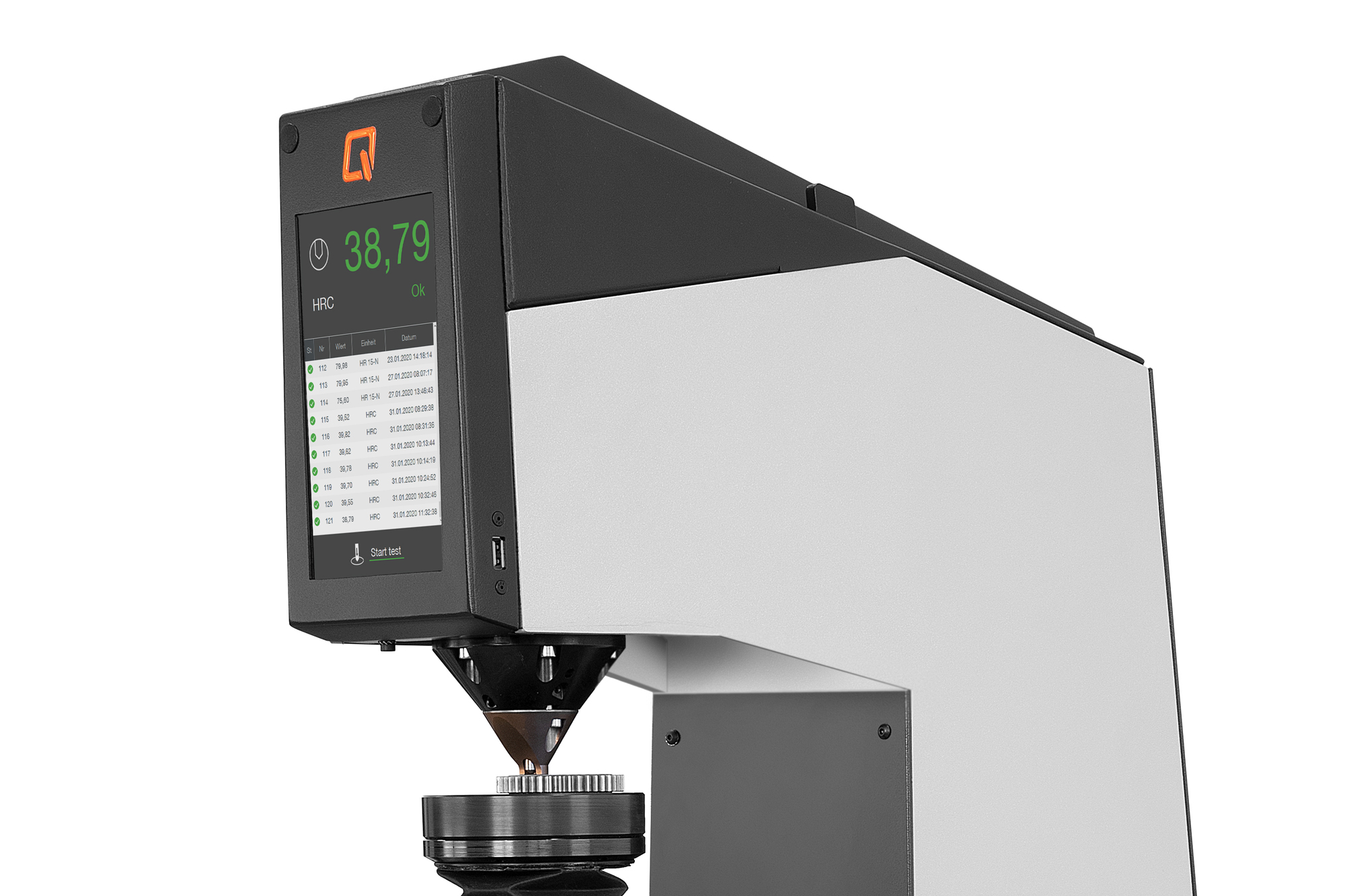

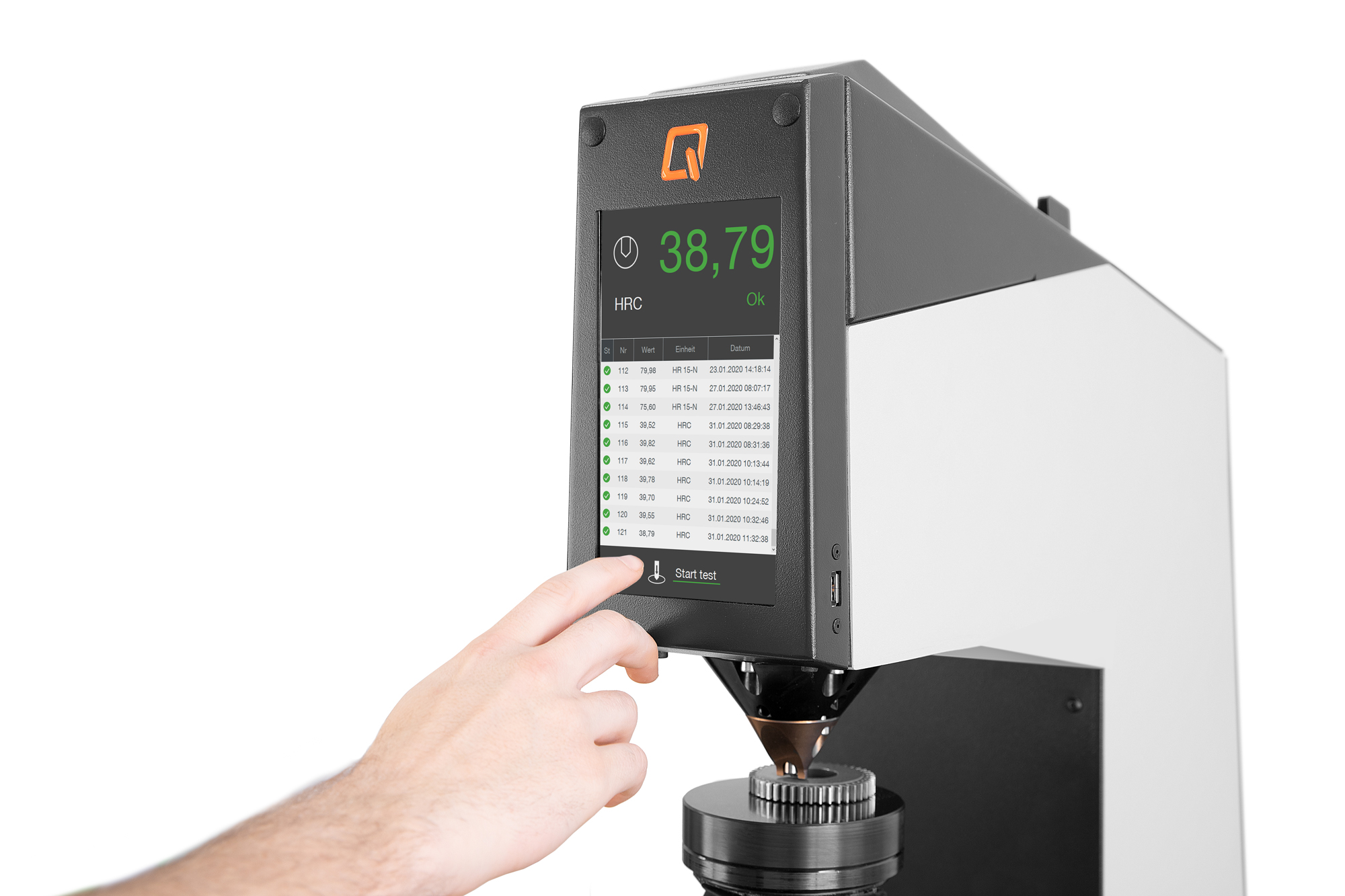

Rockwell Hardness Tester QNESS 150 CS Operation display and Qpix TE-software
We have developed a 7” color display with a robust sheet steel frame for the new Rockwell hardness tester series. The display uses capacitivetouch technology and has been optimized to guarantee operational precision and rapid reaction times. The new Qpix TE software guarantees simple operation with larger buttons and a more modern and intuitive software interface.
Features:
- Extra-large, clearly-visible presentation of test results
- High-/low-quality evaluation of results featured in green and red according to the tolerance levels set
- Test results list for 999 values
- Statistics overview (min/max/range/cp/cpk/average)
- Conversion
- Surface corrections
- Simple test method changeover
- Wide range of operating languages
- Password protected area for expanded range of settings
Perfect hardness testing - Consumables by QATM
Hardness testing is more reliable, safe and efficient when processed with the right ingredients: knowledge, care and the right choice of consumables and instruments.
Rockwell Hardness Tester Configure Your Hardness Tester to Match Your Application
With the QATM Configurator, you can easily tailor your hardness tester to your individual requirements. Select the appropriate device version, equipment, and accessories, and submit your configuration directly as a non-binding request for quotation to QATM.
Your benefits at a glance:
- Configure individually: Select the device, equipment, and accessories to match your application
- Simple & clear: Step by step to your desired device configuration
- Request directly: Submit your configuration easily as a free and non-binding request for quotation
- Personal support: QATM experts assist you in selecting the right solution
Alternatively, you can also submit your inquiry directly via our contact form.

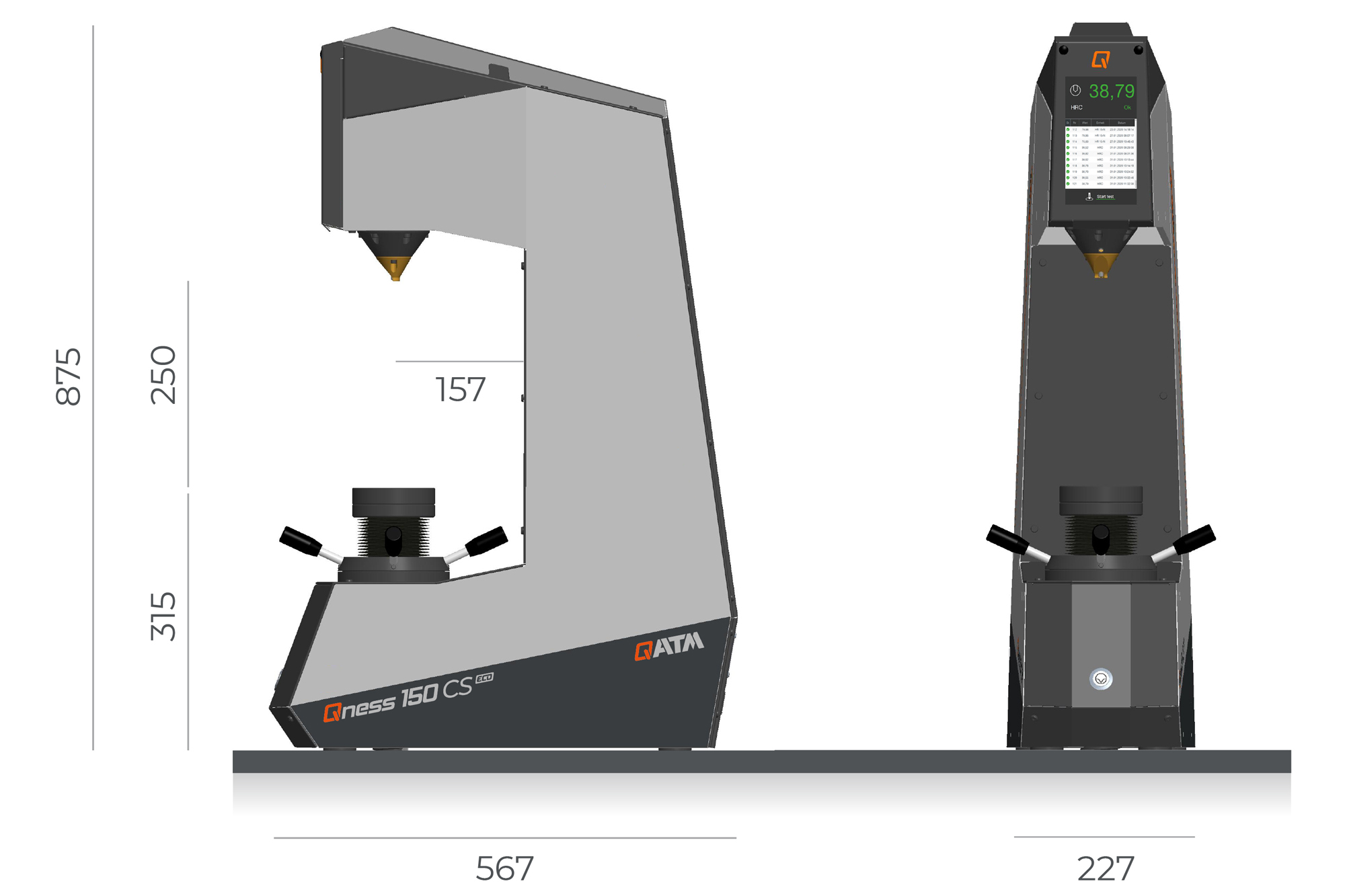

Rockwell Hardness Tester Qness 150 CS Technical Data
| Test force range | 1 - 250 kg (9.81 - 2452 N) |
|---|---|
| Height adjustment | manual / spindle |
| Test height | 250 mm |
| Throat depth | 157 mm |
| Test table | Ø 100 mm |
| Max. workpiece weight | 100 kg |
| Weight of basic device | 77 kg |
| Test sequence | fully automated / electronic force application |
| Software | Qpix TE |
| Display | 7" capacitive touch (color) |
| Interfaces | 1x USB |
| Power connection | 100 - 240 V, ~1/N/PE, 45 - 65 Hz |
| Max. power consumption | ~60 W |
| Accessories | Additional indenters, hardness test bocks, machine pedestal, prisms |
Rockwell Hardness Tester Qness 150 CS Downloads
Consumables

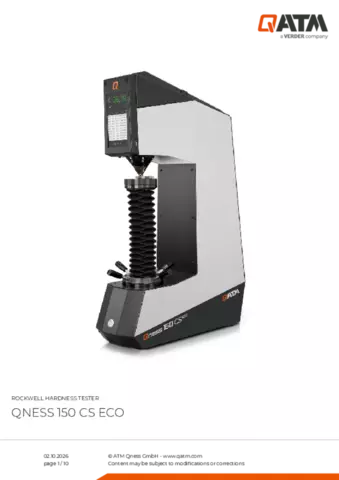

Product data sheet Qness 150 CS
