Rockwell Hardness Tester Q 60/ 150 RCS for rapid processing

Qness 60 / 150 RCS Product Advantages

Extremely fast hardness testing cycle - under 2 seconds
State-of-the-art technology, innovative design
Innovative Siemens S7 controls
Siemens 4“ touch display
Workspace illumination
Data output via RS232 interface
2 load ranges available: HRC or HBT 2.5/62.5 (others on request)
Snug-fit roller-bearing spindle guide
Can be integrated into production lines for automation

Perfect hardness testing - Consumables by QATM

Hardness testing is more reliable, safe and efficient when processed with the right ingredients: knowledge, care and the right choice of consumables and instruments.

To the product range

Rockwell Hardness Tester Configure Your Hardness Tester to Match Your Application

With the QATM Configurator, you can easily tailor your hardness tester to your individual requirements. Select the appropriate device version, equipment, and accessories, and submit your configuration directly as a non-binding request for quotation to QATM.

Your benefits at a glance:

Configure individually: Select the device, equipment, and accessories to match your application

Simple & clear: Step by step to your desired device configuration

Request directly: Submit your configuration easily as a free and non-binding request for quotation

Personal support: QATM experts assist you in selecting the right solution

Alternatively, you can also submit your inquiry directly via our contact form.

Configurator for Rockwell Hardness Testers

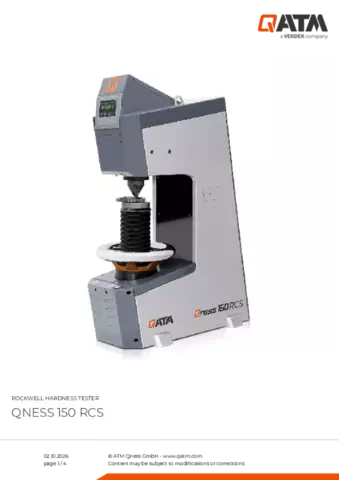

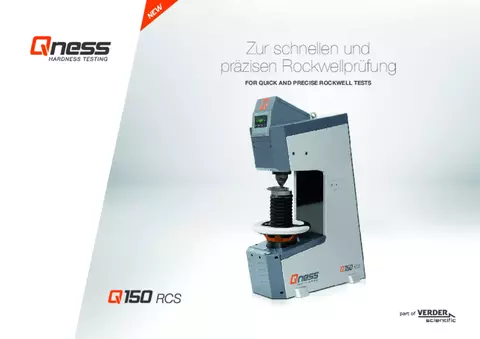

Rockwell Hardness Tester Qness 150 RCS Technical Data

Test method	Qness 150 RCS: HRC \| Qness 60 RCS: HBT 2.5
Test force area	Qness 150 RCS: 150 kg (1471.5 N) \| Qness 60 RCS: 62.5 kg (613.1 N)
Height adjustment	Handwheel
Test height \| horizontal reach	180 mm / 180 mm
Test anvil	Ø 100 mm
Weight of basic device	120 kg
Interfaces	1 x RS232 C, 1 x RJ45 (Ethernet)
Power supply	230~1/N/PE, 110~1/N/PE
Max. power consumption	~ 360 W
Accessories and Options
General	Penetrator (Rockwell, Brinell)
Inline - solution	to be agreed
Options	Customised devices, customised test anvil, pro bus, sorting lamps, flashlight
