Metallographic Preparation of Cast Iron Overview and Preparation
От блоков двигателей до уличных фонарей и посуды, чугун используется в широком спектре областей применения благодаря его превосходной отливке и экономической эффективности. Его свойства во многом зависят от типа и формы содержащегося в нем углерода, что делает металлографический анализ необходимым для понимания и обеспечения качества компонентов чугуна. Здесь вы найдете необходимую информацию о металлографическом приготовлении чугуна, включая его различные виды, классификацию, и рекомендуемые методы приготовления.
Темы
- Overview
- Metallographic preparation of cast iron
- Cutting and mounting
- Grinding and polishing
- Etching
- FAQ
Overview
Cast iron is an iron-based alloy family containing more than 2.06% carbon, typically around 3% carbon and 2% silicon, along with elements such as manganese, phosphorus, and sulphur. Shaped primarily through casting, cast iron can be classified by the shape of the graphite it contains. Gray cast iron (CJL) features lamellar graphite, providing excellent castability, vibration damping, high thermal conductivity, and good machinability. Ductile iron (CJS) contains nodular graphite formed by adding magnesium or cerium; this results in high ductility and mechanical properties similar to steel. Compacted graphite iron (CGI; CJV) contains worm-like graphite shapes, produced by adding smaller amounts of magnesium or cerium, and offers a balance of strength and thermal conductivity. White cast iron is the only type that does not contain free graphite.
Cast iron stands out as one of the most cost-effective construction materials, offering excellent castability and minimal shrinkage during solidification. However, it is brittle, has limited strength at high temperatures, and cannot be plastically deformed. Thanks to its properties, cast iron is widely used for large components such as engine blocks, machine housings, crankshafts, building parts, as well as cookware and radiators.
Metallographic preparation of cast iron
The metallographic preparation of cast iron is a vital step in quality control, as the mechanical properties of the material are strongly affected by the morphology (e.g., shape, volume) of the graphite. The characterization of graphite in cast iron can be performed directly on the polished, unetched sample, usually using standard reference charts or image analysis methods. However, etching is required to reveal and assess the structure of the iron matrix itself. Precise metallographic analysis is essential not only for process control during production, but also for the ongoing development and optimization of cast iron materials.
Cutting and mounting
Due to its brittle nature and relatively high hardness, cast iron requires careful sectioning to avoid introducing microstructural damage such as cracks, overheating, or graphite pull-out. The cutting strategy depends on the type of cast iron:
- White cast iron is extremely hard due to its high carbide content, with hardness values exceeding HV 600. For reliable sectioning of this material, we recommend using resin-bonded silicon carbide cut-off wheel, such as the QATM FS-E, available in diameters from 250 to 600 mm.
- Gray cast iron and other graphite-containing types (e.g., ductile iron, CGI) are somewhat easier to cut, although still relatively hard. For these materials, we recommend using cut-off wheel type FS-D or alternatively type FS-E for optimal performance.
To ensure clean and damage-free cuts, it is important to use a precision cut-off machine with adequate coolant flow to prevent overheating. Apply moderate feed pressure to avoid microcracks or chipping, and make sure the sample is firmly clamped to prevent movement or vibration during cutting.
Mounting is recommended for cast iron samples that require high edge quality and consistent preparation, such as in failure analysis or detailed microstructural evaluation. However, for large specimens or routine quality control, unmounted preparation is commonly used to save time and resources.
When mounting is necessary, hot mounting is the preferred method due to its speed and durability. We recommend using EPO BLACK a high-performance, mineral- and glass-filled epoxy resin. It offers very low gap formation, excellent edge retention, and high parallelism. The high filler content also improves machinability, especially important for harder types of cast iron. For standard applications Bakelite is a cost-effective alternative.
Grinding and polishing

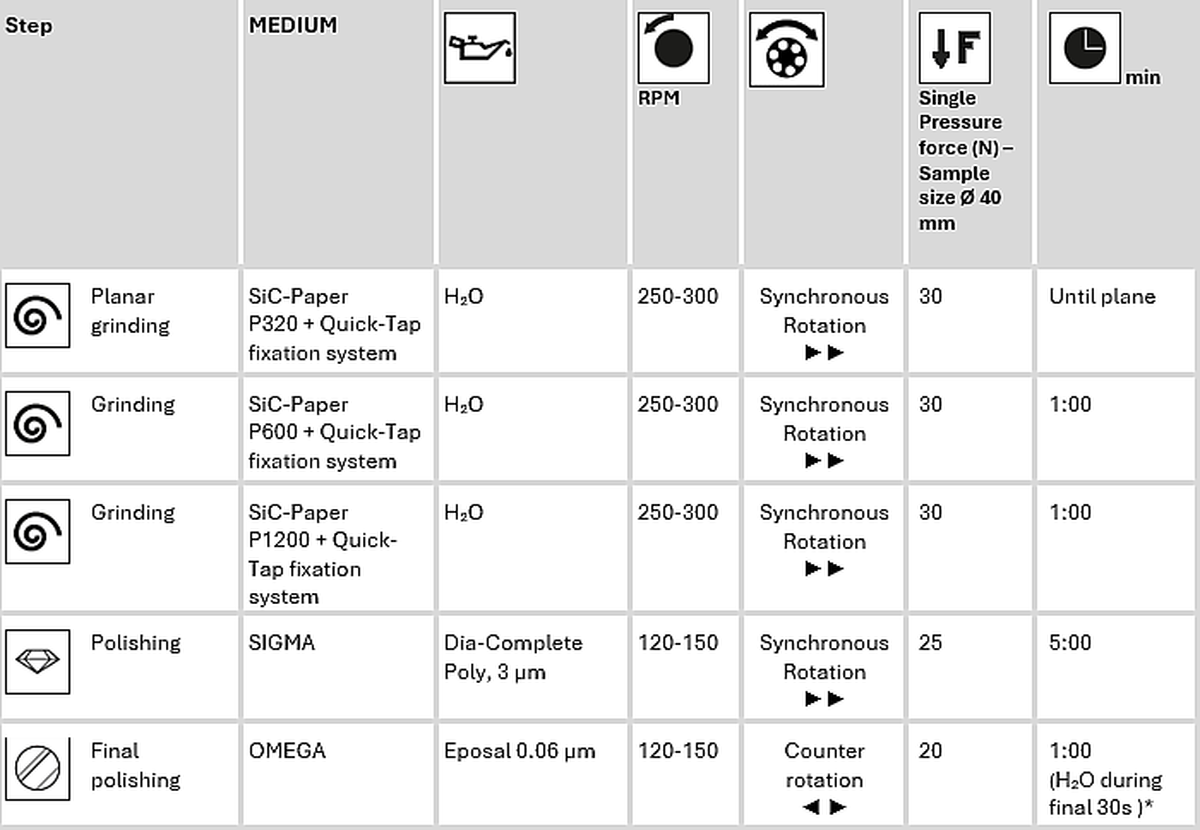

Proper grinding and polishing are essential for revealing the microstructure of cast iron without introducing deformation or damaging the graphite structure. The goal is to produce a flat, scratch-free surface that preserves both the graphite morphology and the matrix, enabling accurate metallographic evaluation. A recommended preparation method for CJS and CJL type cast iron is shown in the table.
Cast iron is prone to corrosion during and after preparation, so cleaning must be done quickly and carefully. Always use cold water for the initial rinse but avoid leaving the sample exposed to water for extended periods. Follow immediately with a thorough rinse in ethanol and dry the specimen using warm air.
Etching
When evaluating the graphite morphology in cast iron, i.e. the shape, size, and distribution of graphite, etching is not necessary, as graphite is already visible on the polished, unetched surface. However, to study the metallic matrix and phases within the microstructure in more detail, chemical etching is required. An overview of the most common etchants for cast iron is given in the table below:
Safety Notice: Acids must be used with caution. Wear protective equipment and follow lab safety guidelines.
| Composition | Etching Conditions | Description |
|---|---|---|
| 100 ml ethanol, min. 96% 1-10 ml nitric acid, 65% (Nital) |
5 – 60 seconds depending on material | Etches ferrite, pearlite, and martensite. Graphite remains unchanged. |
| 100 ml Ethanol (96 %) 2-4 g Picric acid |
10 – 120 seconds depending on material | Etches pearlite, martensite and bainite. Uniform etching, even with segregations. Fe3C stained light yellow. |
Часто задаваемые вопросы - Metallographic Preparation of Cast Iron
Why is metallographic preparation important for cast iron?
Metallographic preparation is essential for evaluating the internal structure of cast iron. It allows you to assess features like graphite distribution and matrix phases, which directly influence mechanical properties such as strength, ductility, and wear resistance.
What are the different types of cast iron and how do they differ?
Common types include gray cast iron (CJL), ductile cast iron (CJS), compacted graphite iron (CGI), and white cast iron. They differ primarily in the form and distribution of carbon, which affects their performance, machinability, and application areas.
Can cast iron be prepared without mounting?
Yes, especially for large components or routine quality checks. However, for detailed analysis and edge-sensitive applications, mounting the sample — typically using hot compression mounting — provides better control and repeatability.
What makes cast iron difficult to prepare?
Cast iron is brittle and often hard, which makes it prone to cracking, chipping, or graphite pull-out during cutting and grinding. Selecting the right tools and process parameters is crucial to avoid introducing preparation artifacts.
How can I avoid corrosion during sample preparation?
To minimize corrosion, clean cast iron samples quickly using cold water, rinse thoroughly with ethanol, and dry with warm air. Avoid prolonged exposure to moisture and use water-free alcohol for especially corrosion-sensitive specimens.
Do I really need to etch cast iron to assess its microstructure?
It depends on what you want to examine. Graphite features — such as shape and distribution — are visible on a polished, unetched surface. But to analyze the metallic matrix (e.g., pearlite, ferrite, or carbides), etching is required, typically using Nital or Murakami’s reagent.
