The compact fully automatic grinding and polishing robot Qpol 250 BOT combines the complete grinding and polishing process, including ultrasonic cleaning in one machine. 16x disc changer, 6x dosing unit and an integrable sedimentation tank fits perfectly into the System lab.
Intuitive user interface via touch screen and a user friendly fixation system for central force sample holder enable preparation results in shortest time. All parameters can be adjusted during the automatic process.
The benefits of automation with the Qpol 250 BOT:
- Automated Processes: Grinding, polishing, and cleaning are fully automated.
- Flexible Media Selection: Choose customized media tailored to your specific needs.
- High Reproducibility: Ensure consistent results through reliable processes.
Product Advantages
- Grinding- and polishing system with central pressure
- Aluminium case, powder-coated
- Polishing head with variable speed
- Removal measurement
- Electronic control with touch screen
- Automatic abrasive changer
- Cleaning station with water, air and ethanol
- Ultrasonic cleaner
- 6-fold dosing unit (4x diamond supension or lubriant, 2x fine polishing suspension)
- Storage drawer for abrasives
- Settling tank 45L
- Light barrier to secure danger area
Grinding & Polishing Robot Qpol 250 BOT Convincing benefits

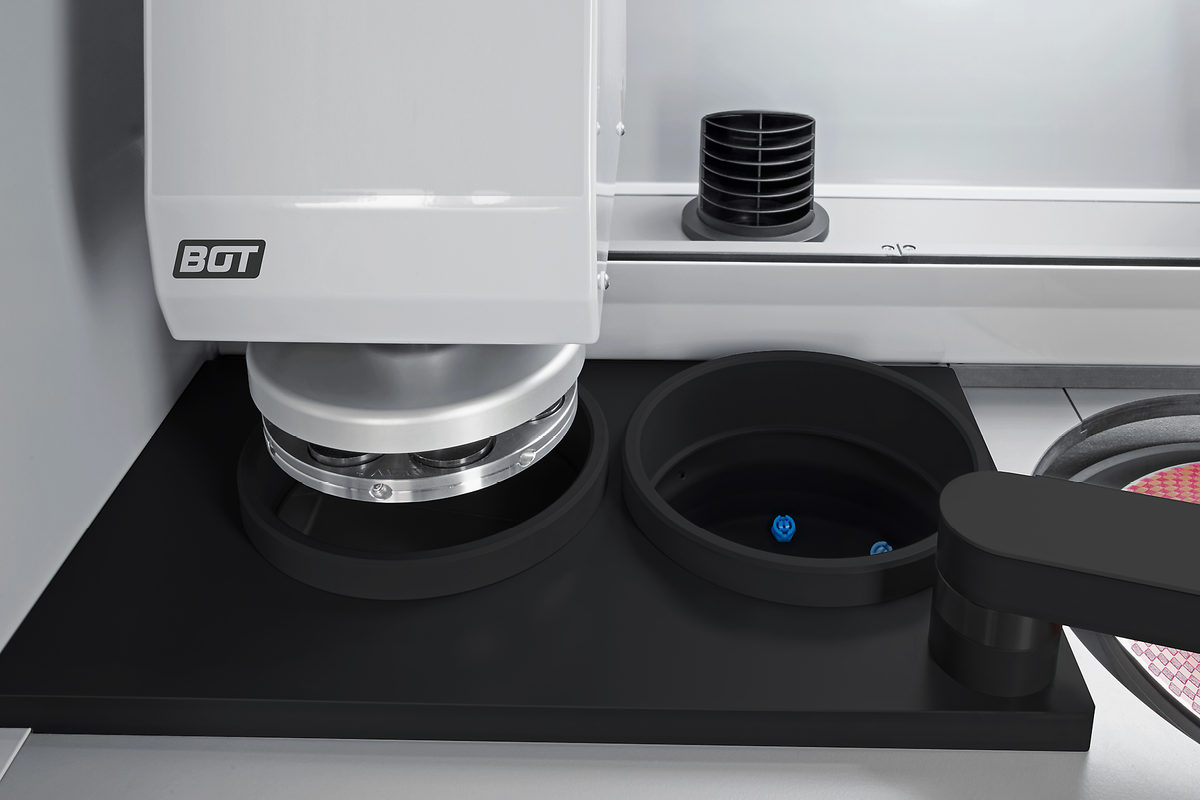

Cleaning station
The cleaning station enables a fully automatic multi-step cleaning of the sample with water, air and alcohol. Cleaning times and steps are completely adjustable as needed. The ultrasonic cleaning station provides intermediate or final cleaning.

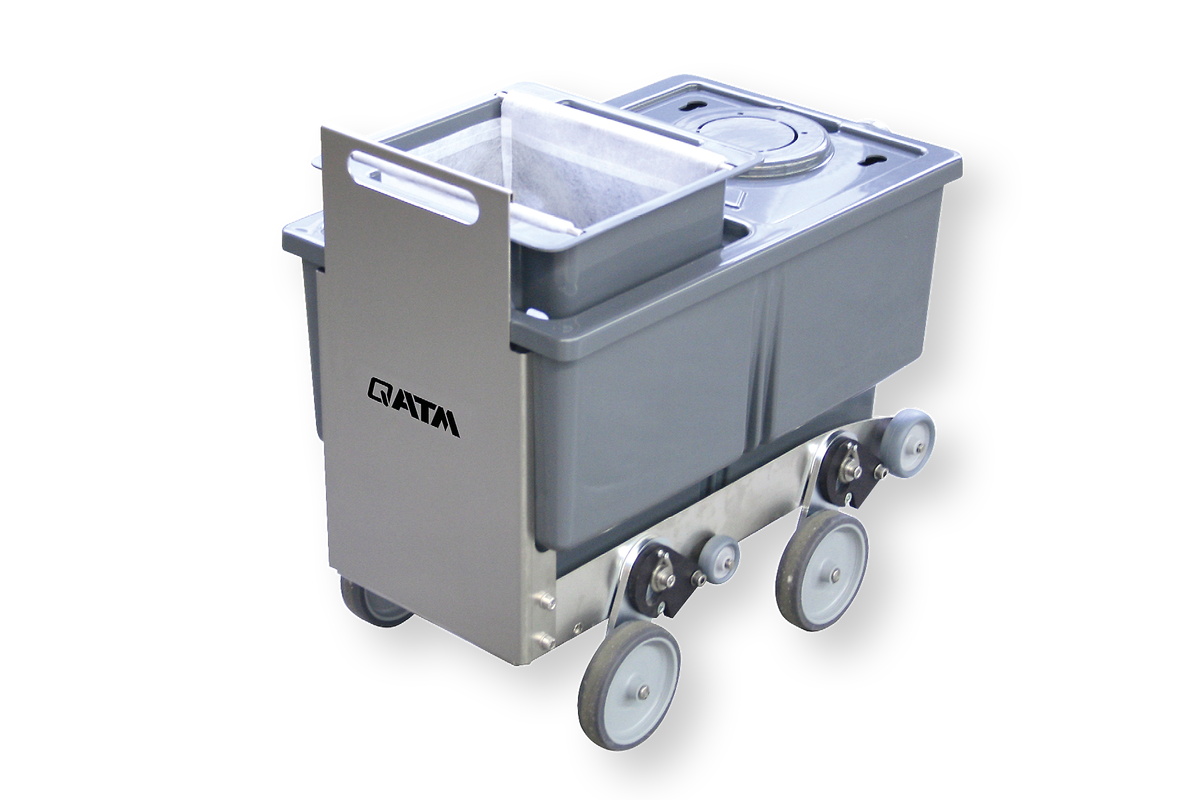

Settling tank
The insertible settling tank is invisibly integrated into the cabinet with all its connections (option).
- 2-chamber PVC tank 45 liter
- mobile, with insertion mechanism for System Lab cabinets
Disc changer
The storage elevator contains up to 16 different grinding discs, such as SiC paper or Galaxy discs. During cleaning the sample, the foil changer replaces the grinding media and fixes it with the Vacu- Jet system automatically.
Dosing unit
Dosing and bottles depot are easily accessible and clearly arranged in the cabinet. Optional level monitoring and magnetic stirrer.
Grinding & Polishing Robot Qpol 250 BOT Superiority in detail
1. Robust housing
- Robust powder-coated aluminum housing
- Seamless integration into the system laboratory
2. Integrated cleaning station
- Cleaning with ultrasound, water, and ethanol
- Drying via compressed air
- No contamination
3. Media changer
- Up to 16 grinding and polishing media
4. 10" industrial touchscreen
- Intuitive QATM user interface
- Up to 200 user-defined preparation methods
5. Intelligent tool head
- Removal measurement thanks to force sensors
- Variable speed
6. Sophisticated safety concept
- Light barrier prevents access to the danger zone
This instrument is ideally suited for geology and mineralogy applications
Perfect grinding and polishing – Consumables by QATM
Grinding and polishing is more reliable, safe and efficient when processed with the right ingredients: knowledge, care and the right choice of consumables and instruments.
Perfect grinding and polishing – Consumables by QATM
Grinding and polishing is more reliable, safe and efficient when processed with the right ingredients: knowledge, care and the right choice of consumables and instruments.
Grinding & Polishing Robot Qpol 250 BOT Technical Data
| Working wheels | Ø 250 mm |
|---|---|
| Drive power | 1.1 kW S3/40% |
| Sample holder-ø | 160 mm |
| Drive power polishing head | 0,17 kW S1 |
| Speed (head) | 30 - 150 rpm |
| Speed (grinder) | 50 - 600 rpm |
| Controlled removal measurement (display accuracy) | 0.1 mm |
| Water connection | 1x fresh water R½" max. 6 bar |
| Water outlet | 1x waste water DN50 |
| Compressed-air connection | 6 bar. coupling connector NG8 |
| W x H x D | 1320 x 1500 x 800 mm |
