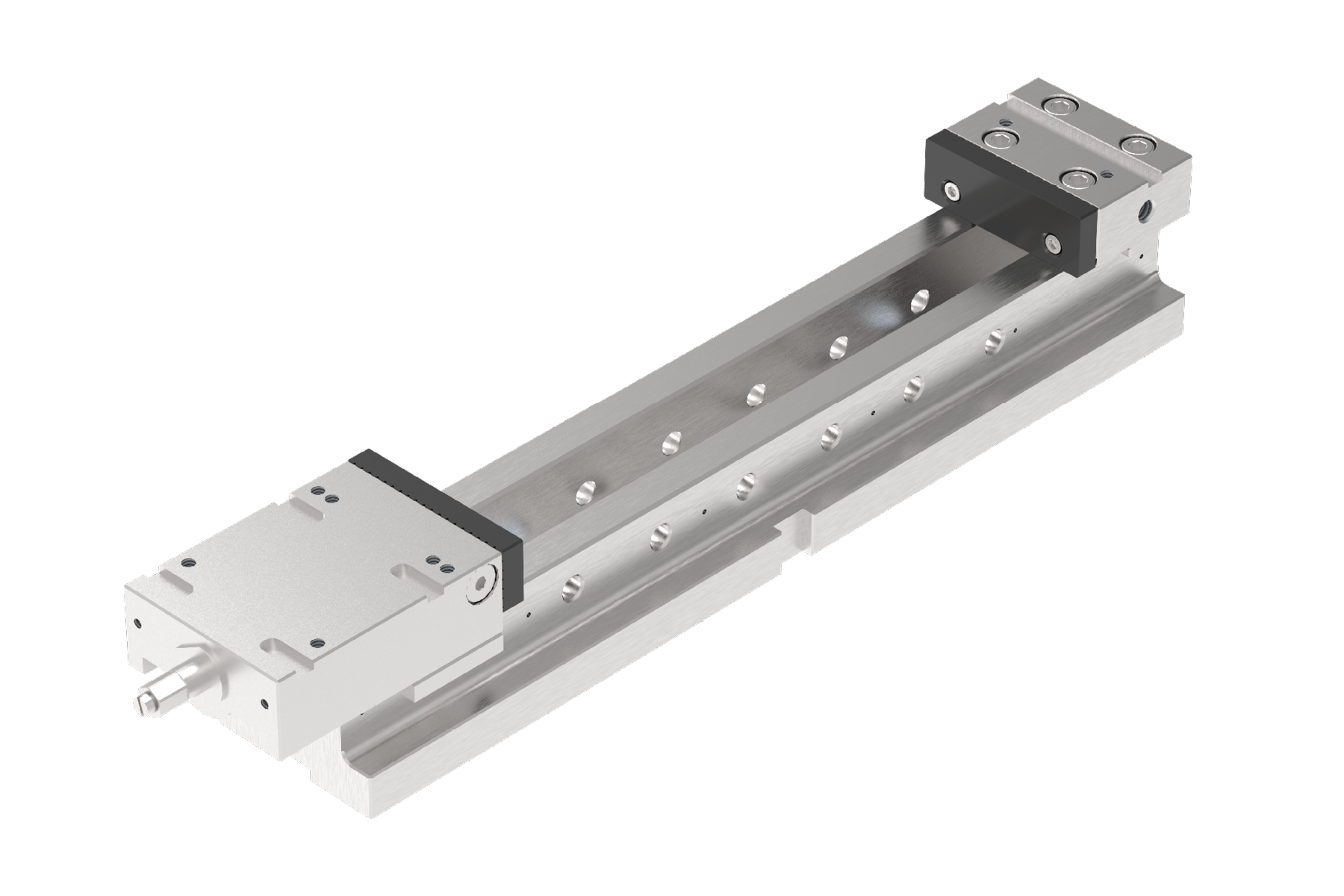

Universal power clamping system 100/540 Highlights
- Integrated mechanical-hydraulic power transmission
- Incl. fastening material for T-slots 12 mm
- Max. clamping force 25 kN
- W x H x D: 100 x 104 x 625 mm
| Clamping range | Jaw width | Jaw height | Clamping force | |
|---|---|---|---|---|
| Universal power clamping system 100/540 | 0 - 365 mm | 100 mm | 30 mm | 28 kN |
Compatibility Universal power clamping system

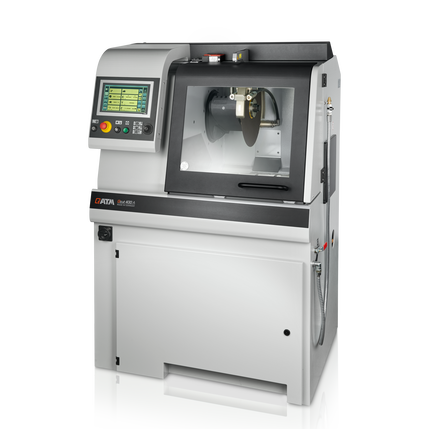

| Compatible with cut-off machine | Qcut 400 A | Qcut 500 A | Qcut 600 A/BOT | Qcut 800 A |
|---|---|---|---|---|
| Direct mounting via T-slot nut / spacing |
✓ | ✓ | ✓ | ✓ |
Accessories for clamping system 100/540
With the accessories, the power clamp can be individually modified to suit the components to be cut and the clamping situation.

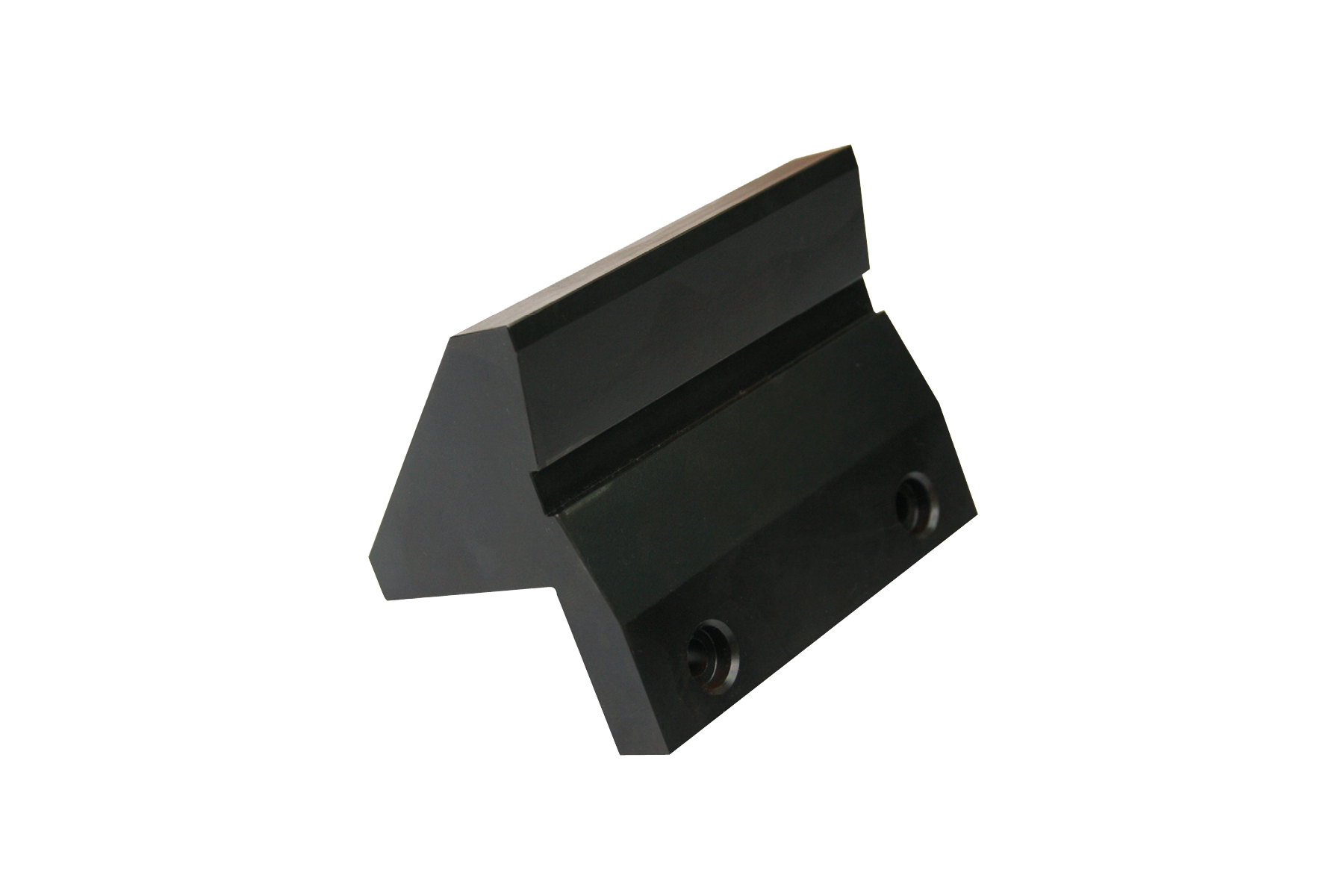

Prism clamping jaw
- Horizontal prism
- Can be combined with flat clamping jaw
- Jaw width: 100 mm
- Prism for Ø 10 - 100 mm

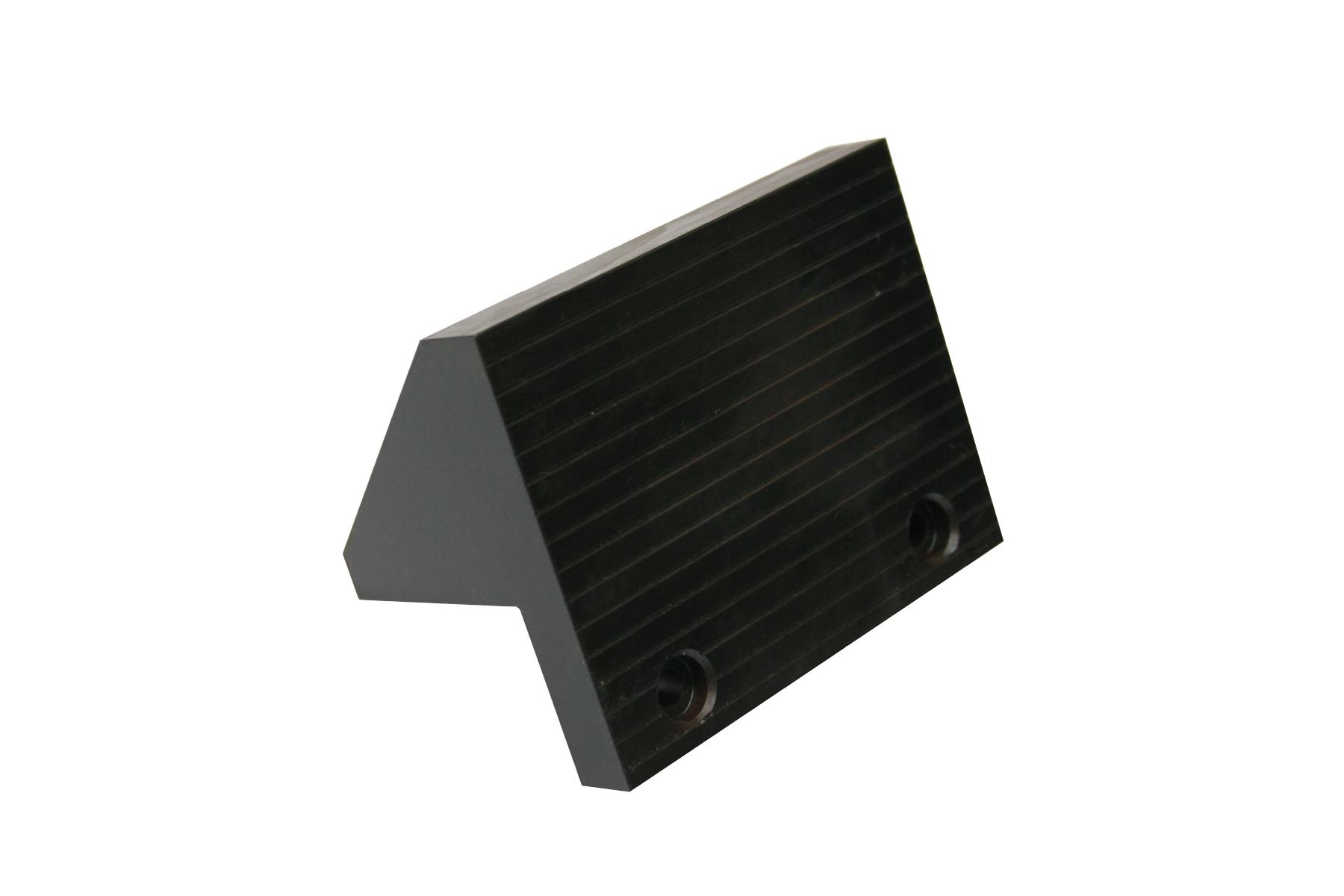

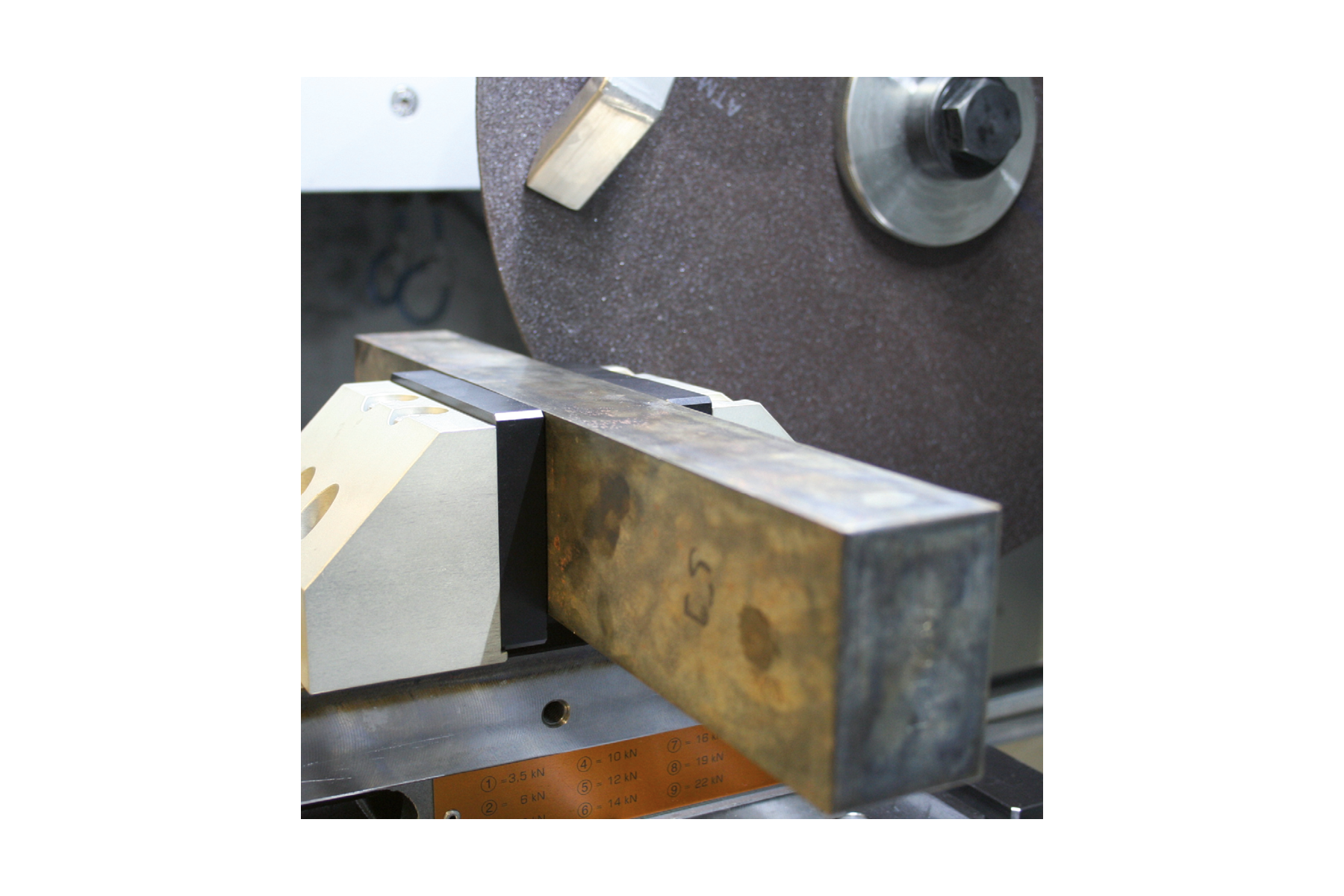

Clamping jaw flat
- Jaw height: 80 mm
- Jaw width: 100 mm
- Ribbed clamping surface
- For clamping parallel bodies
- Can be combined with prism clamping jaw

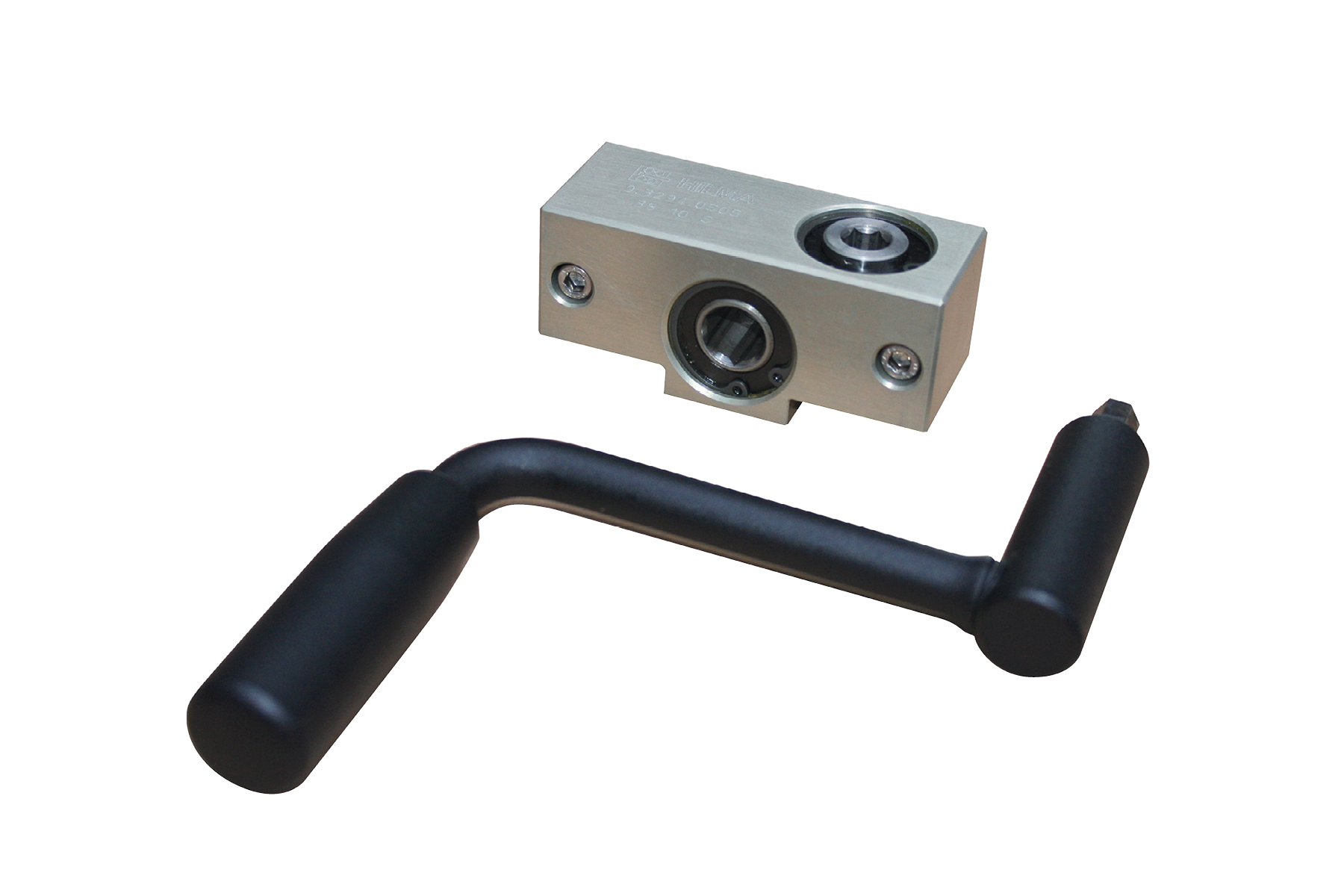

Angular drive
- Possibility to clamp the component comfortably from above
Through extensive testing, we are able to provide the right clamping solution for every application.

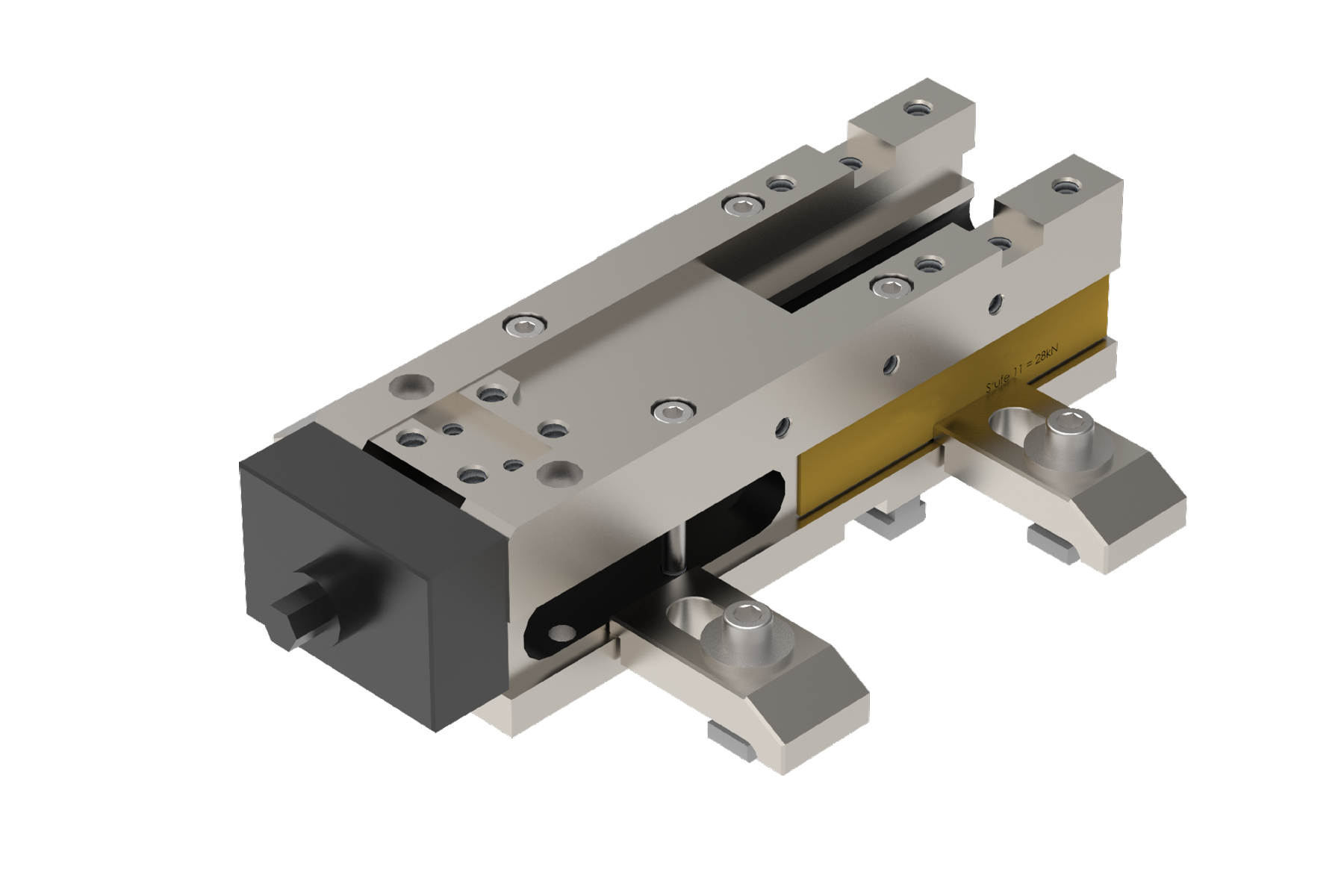

Universal power clamping system LC 90 Highlights
- Simple and safe clamping of a wide variety of workpieces
- A wide variety of easy-to-change clamping jaws
- Low effort due to mechanical force transmission
- Clamping force pre-adjustable in 11 steps (up to 28 kN)
- incl. fastening material for T-slots 12 mm and hand crank
| Clamping range | Jaw width | Jaw height | Clamping force | |
|---|---|---|---|---|
| Universal power clamping system LC 90 | 0 - 217 mm | 100 mm | 70 mm | 25 kN |
Compatibility Universal power clamping system LC 90
| Compatible with cut-off machine | Qcut 400 A | Qcut 500 A | Qcut 600 A/BOT | Qcut 800 A |
|---|---|---|---|---|
| Direct mounting via T-slot nut / spacing |
✓ | ✓ | ✓ | ✓ |
Accessories for clamping system LC 90
The LC 90 power clamp builds the basis of the clamping system. Depending on the application, it is supplemented with one of the following modules. It can be used to powerfully and securely clamp a wide range of irregularly shaped components

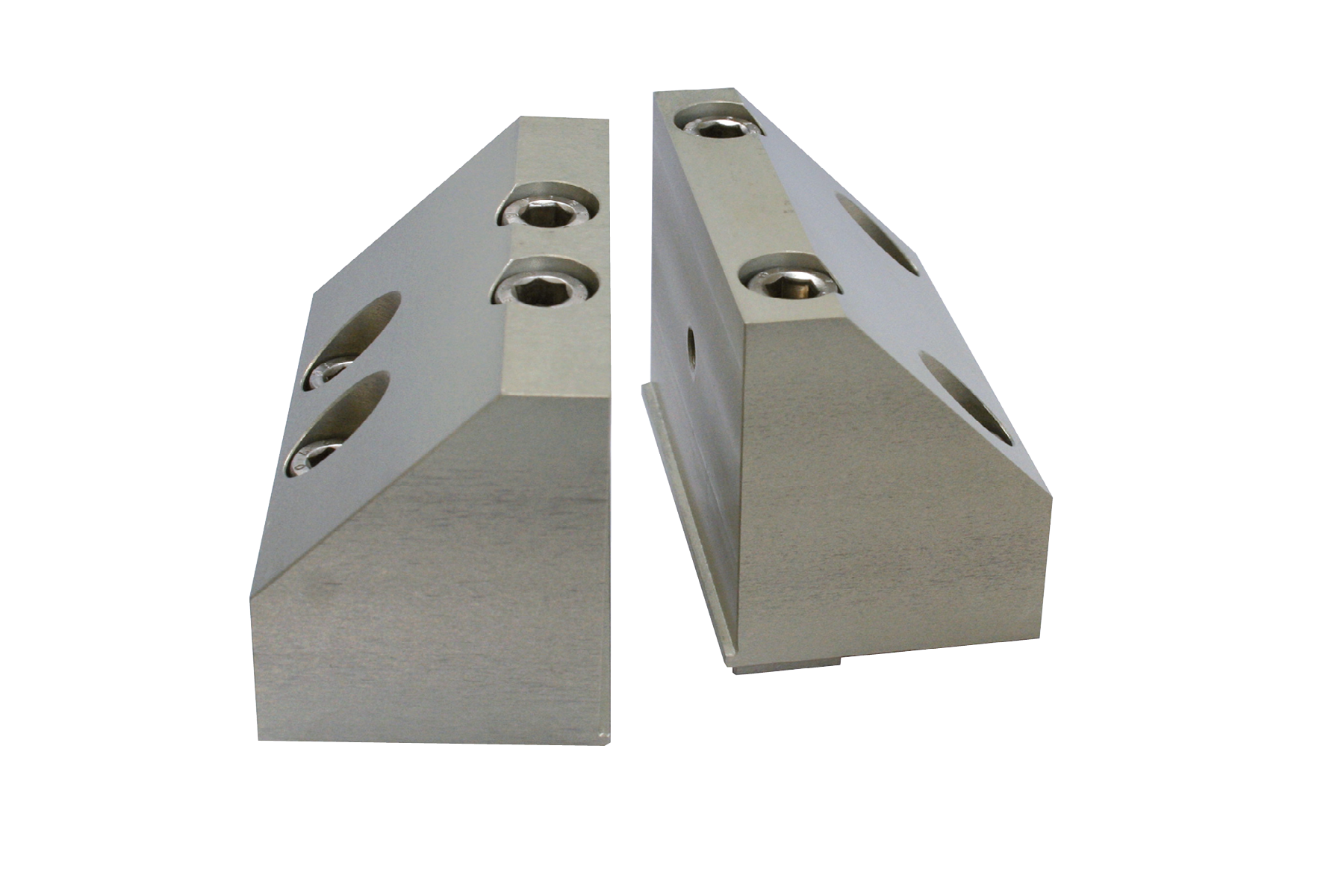

Carrier Claws LC 90
- Carrier module for clamping jaws
- Base for prism jaw and V-groove jaw 100
- Made of high-strength aluminium with ceramic coating
- Jaw width: 100 mm

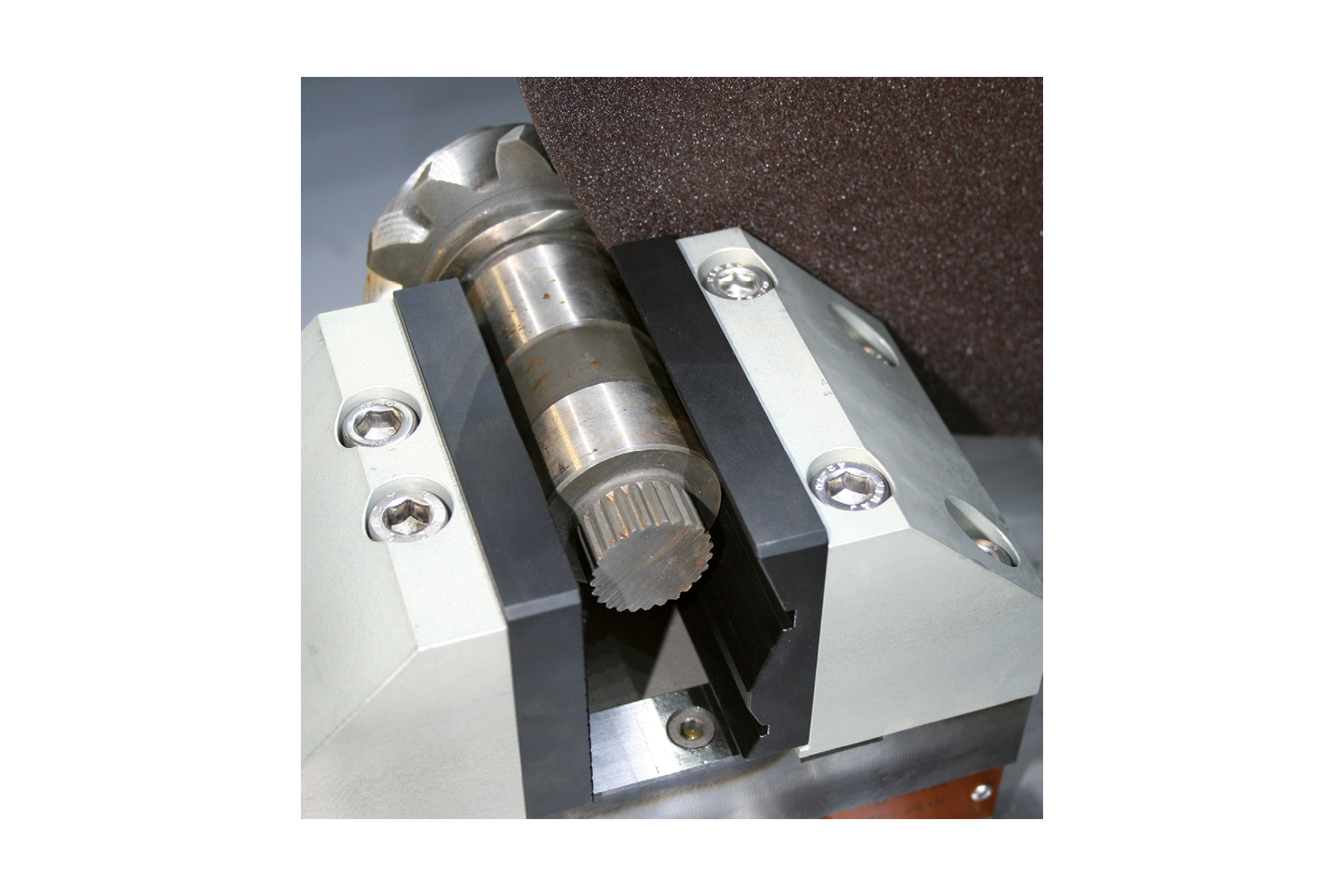

V-Groove jaw 100
- Jaw height: 70 mm
- Jaw width: 100 mm
- 1 pc., can be combined with clamping jaw flat
- Rotatable jaw made of hardened steel
- Surface with two horizontal prisms for clamping round material from Ø 10 to 100 mm
Clamping jaw flat
- Smooth clamping surface
- For clamping parallel bodies
- 1 pc., can be combined with V-groove jaw 100

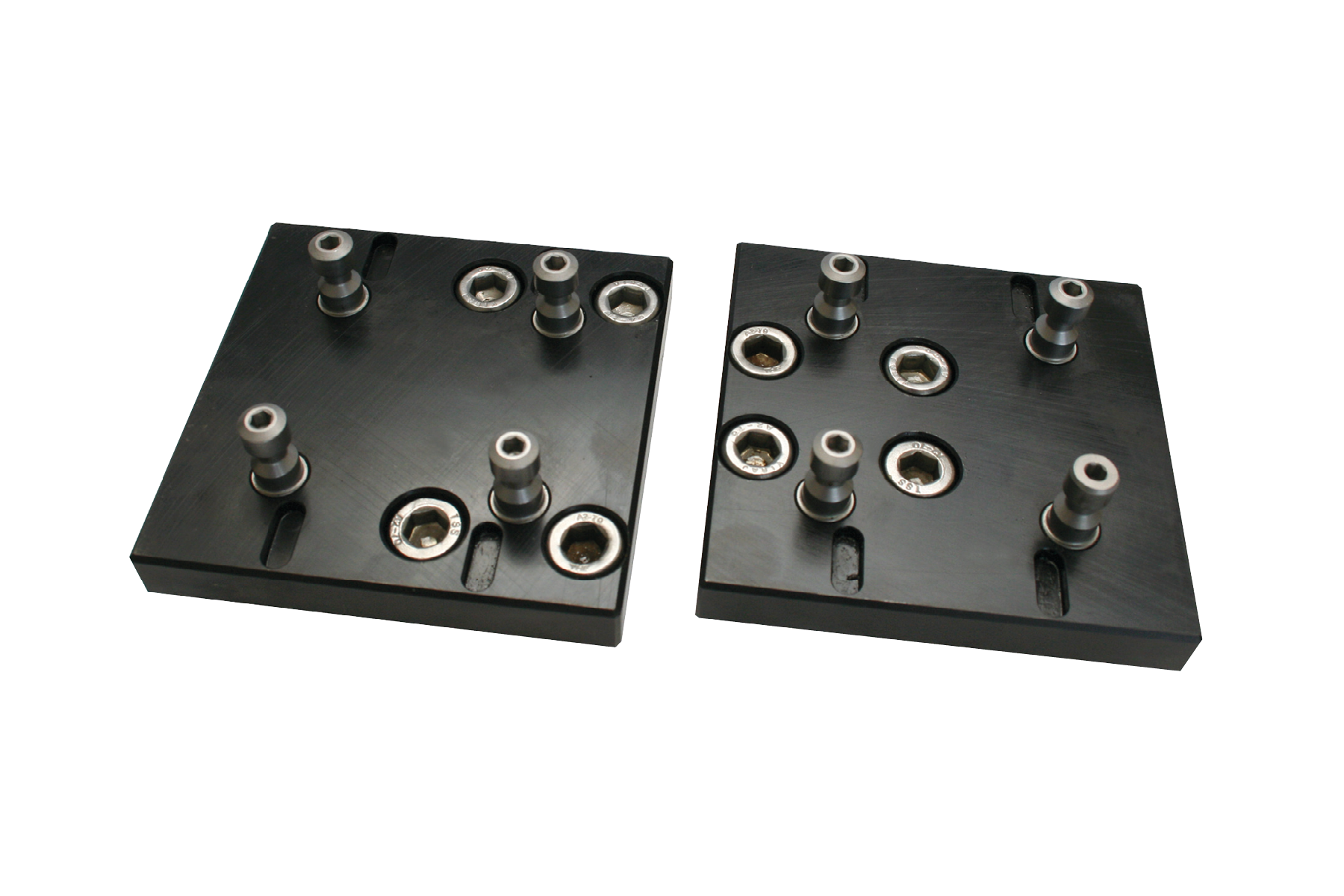

Quick-change adapter
- Fast and secure connection of the individual modules by means of pull-down pins
- For fastening
- Step jaw 100
- Clamping system X-Clamp 100
- Customer-specific solutions

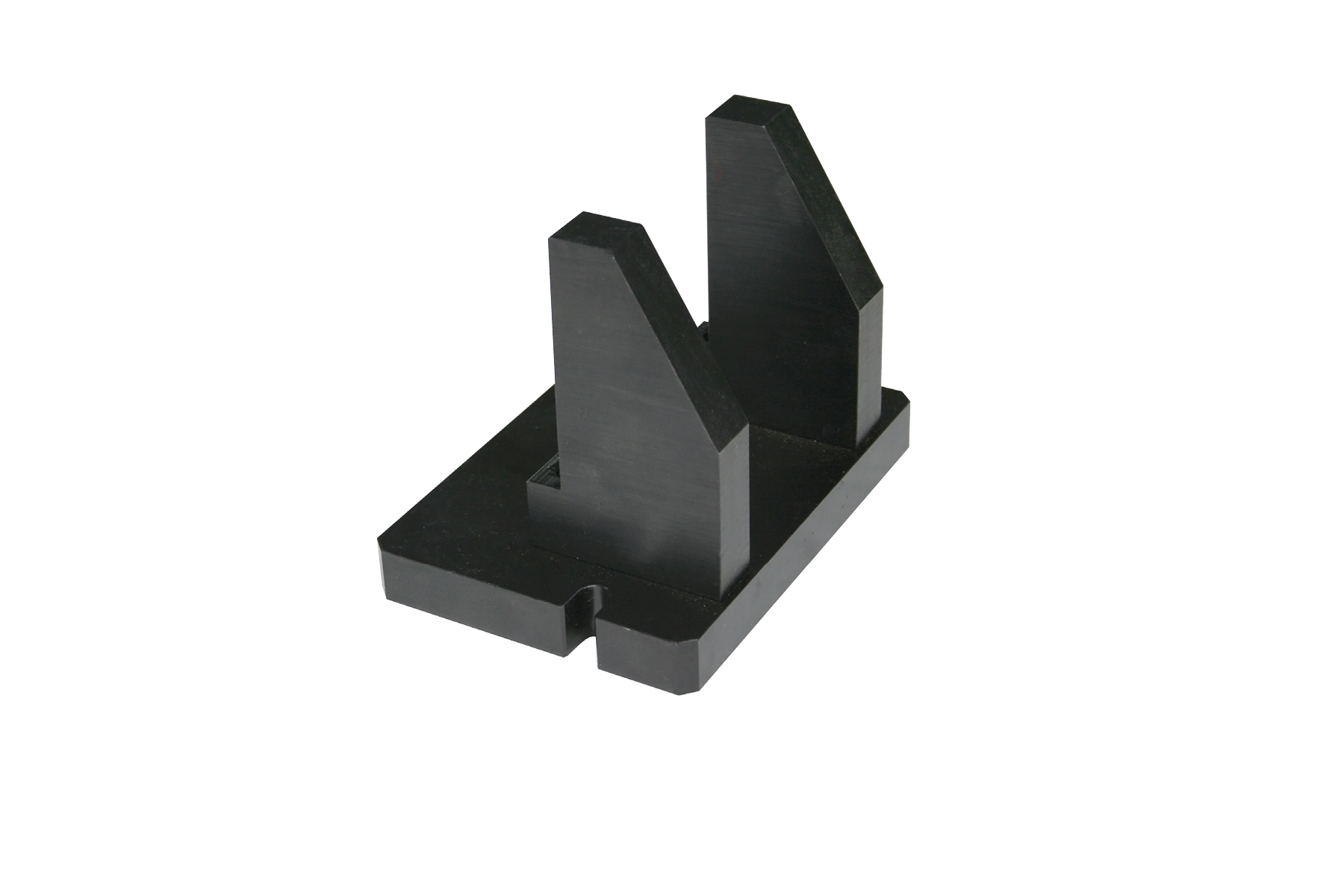

Socket 90°
- For assembly of the basic module LC 90 in lateral position 90°
- For T-slots DIN 650 12 mm

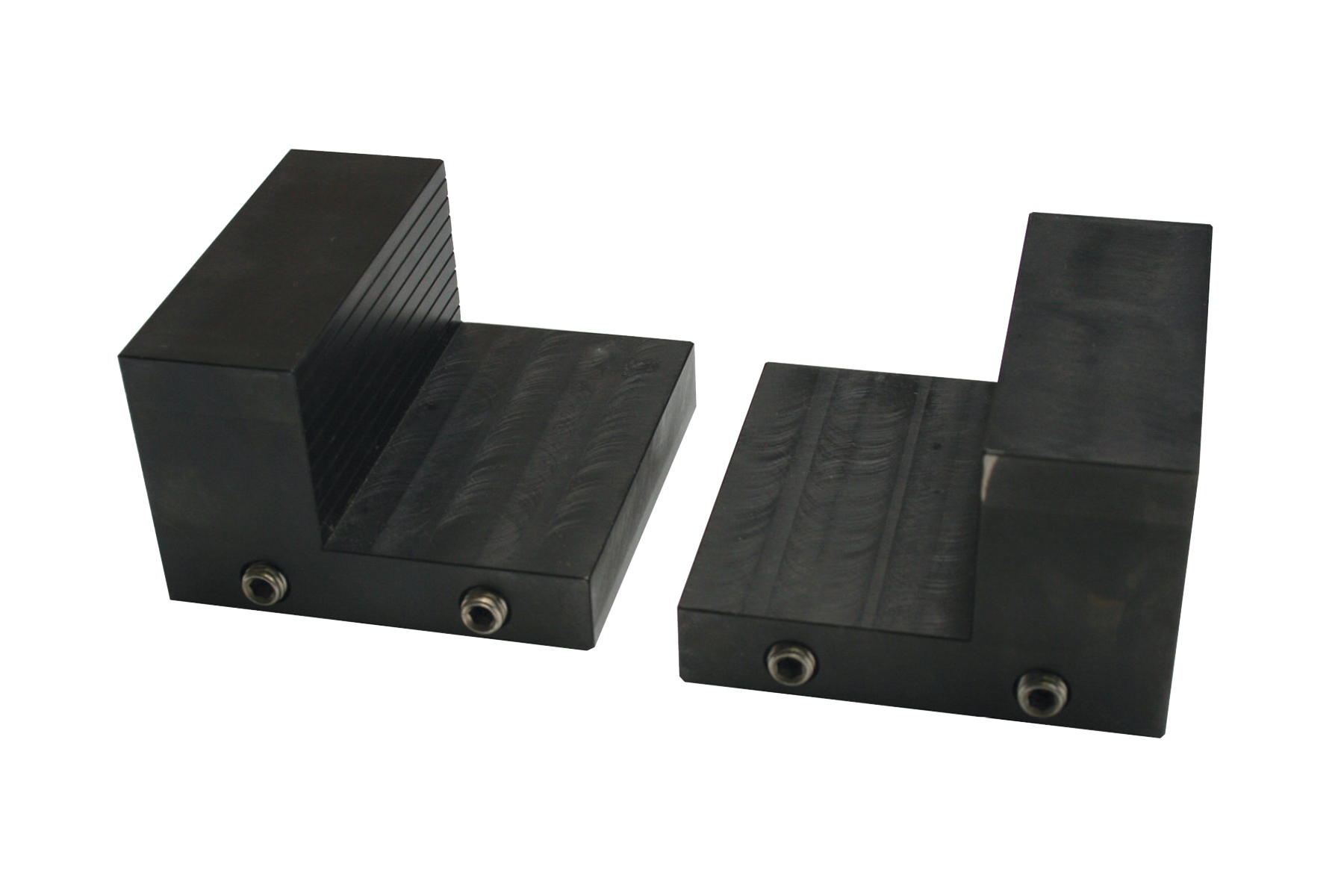

Step jaw 100
- Jaw height: 65 mm
- Jaw width: 100 mm
- Clamping of parallel workpiece surfaces
- Clamping force generation via basic module LC 90
- Step jaw can be rotated 180°
- Use only with quick-change adapter

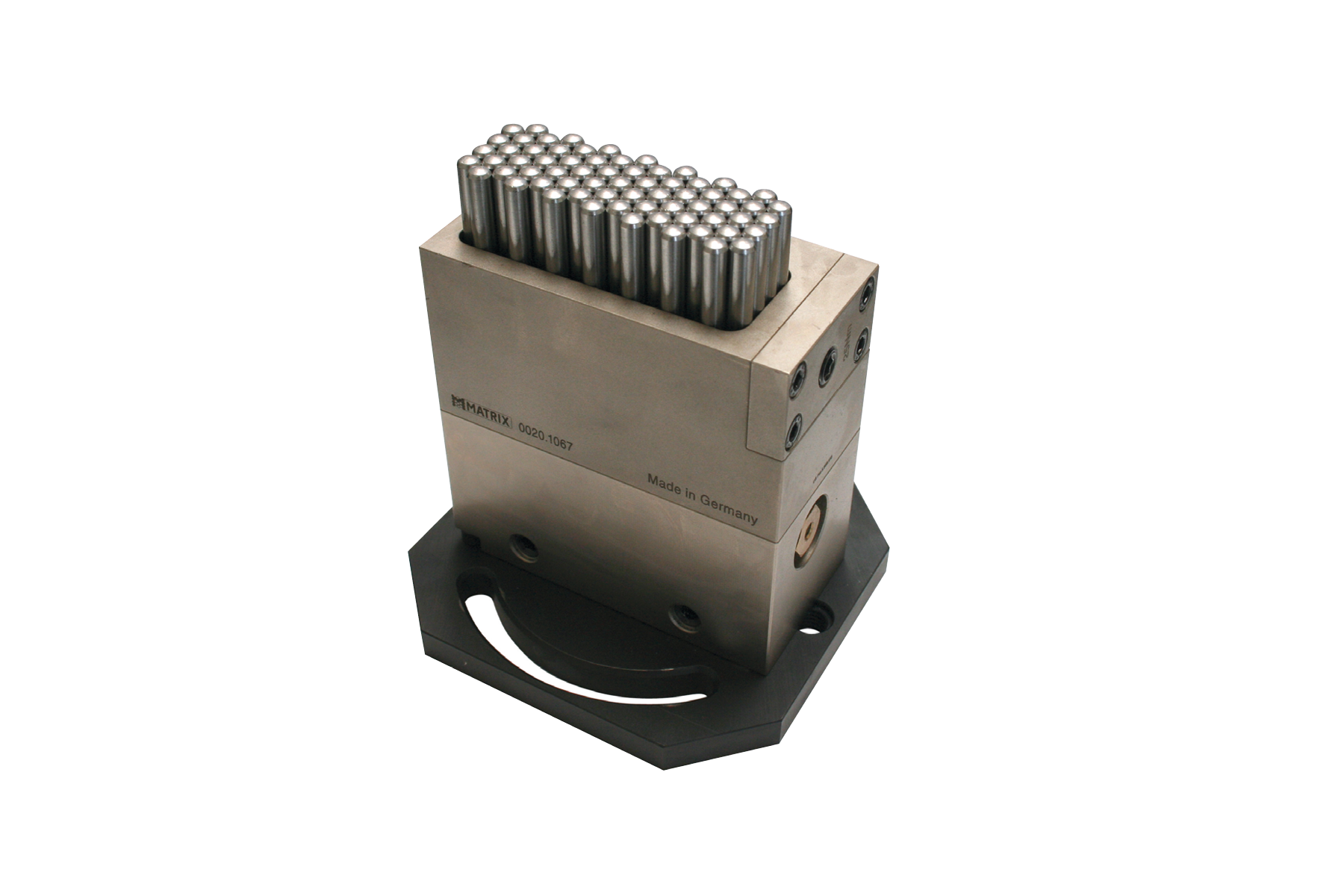

Support Element
- Jaw height: 70 mm
- Jaw width: 100 mm
- 1 piece for supporting long components
- Reduction of vibrations
- Spring-loaded rams attach themselves to the workpiece
- Additional fixation of the component from above with universal clamp possible
- Fast and safe connection of the individual modules by means of pull-down pins

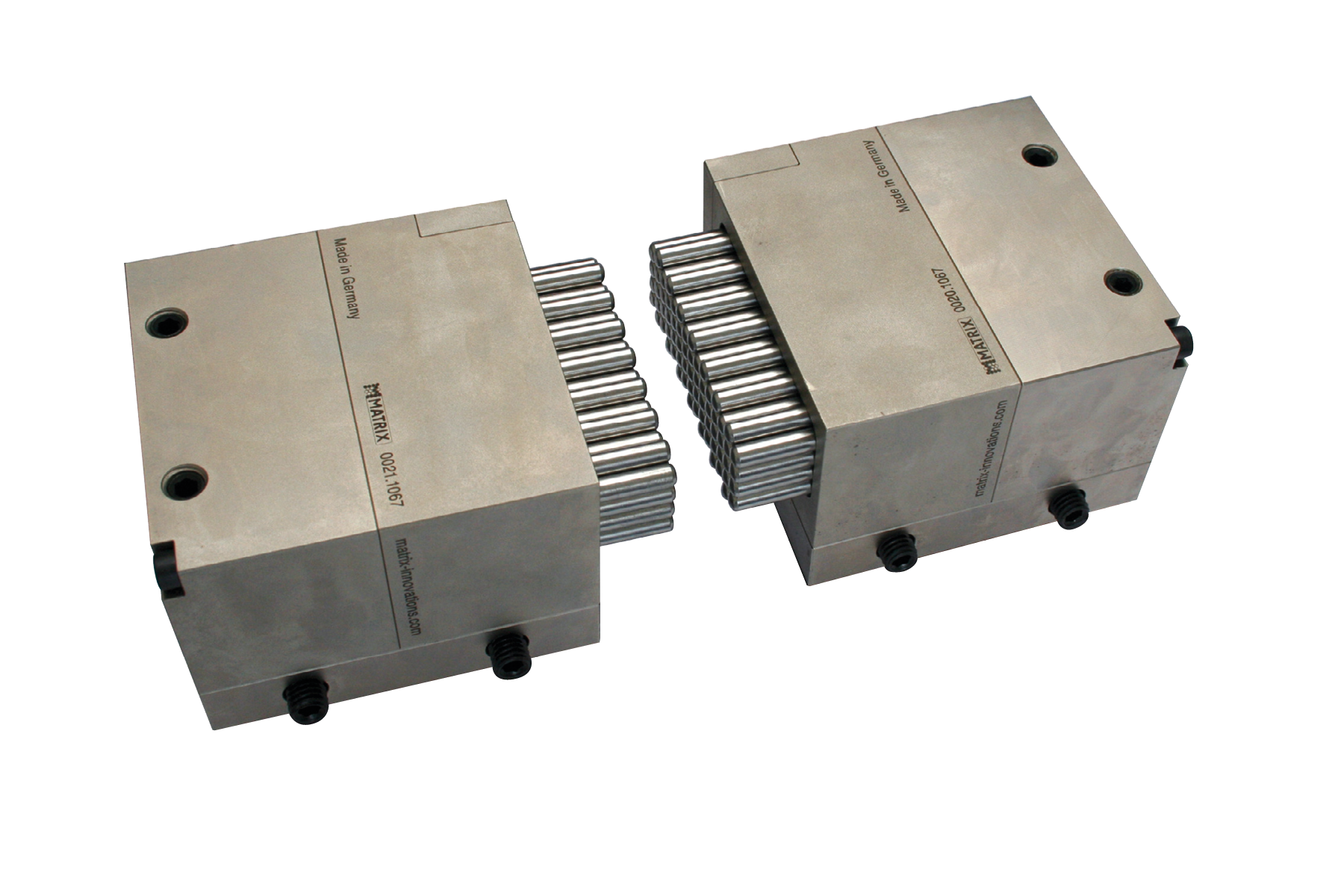

Clamping system X-Clamp 100
- Индивидуальный и безопасный зажим самых разных образцов и деталей свободной формы с помощью индивидуально подпружиненных таранов из нержавеющей стали
- Идеальная посадка с минимальным усилием зажима
- Минимальные временные затраты
- Используйте только с быстросменным адаптером
- включая крутящий ключ и крепежные винты

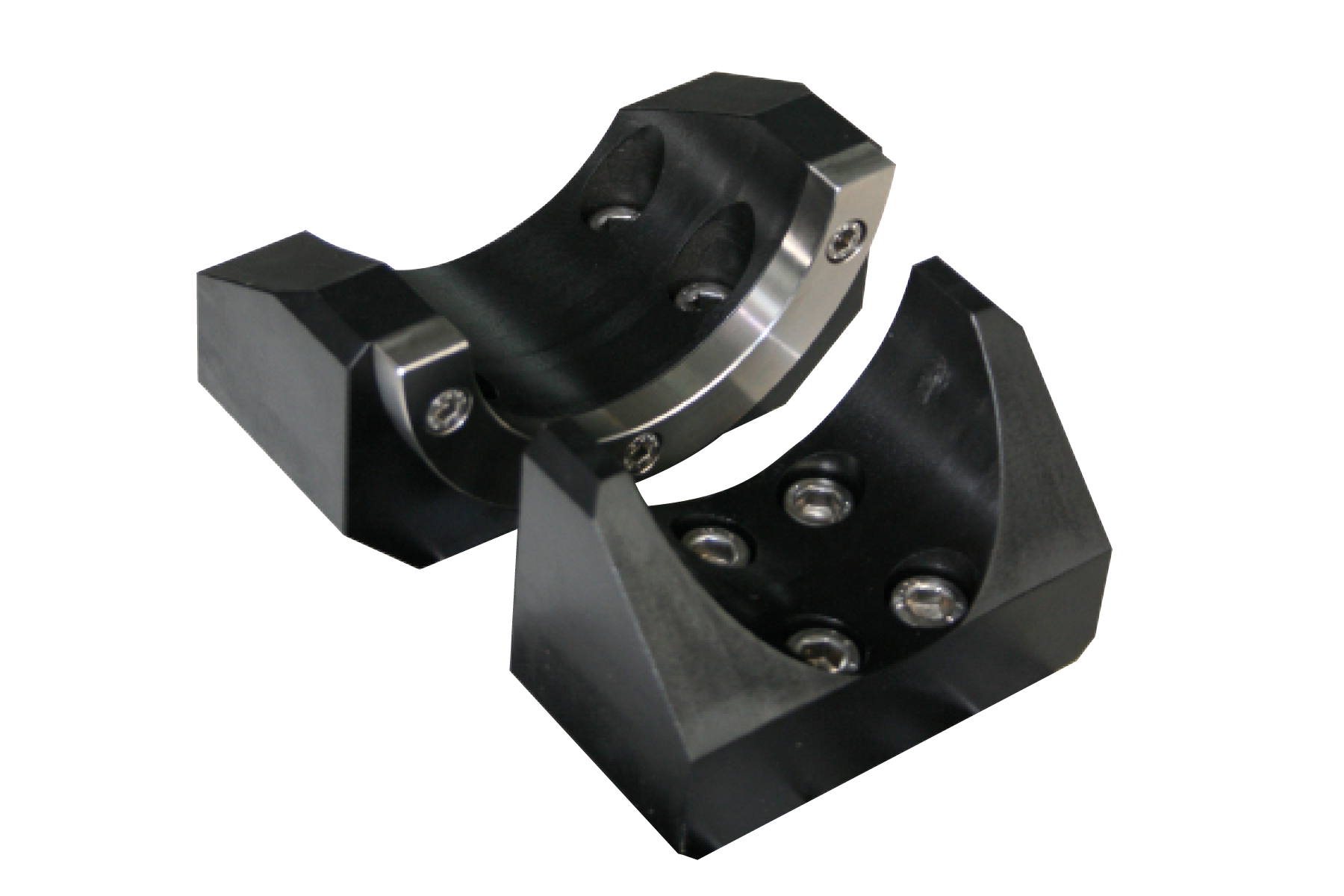

Special clamping jaws
- QATM Service: Send us your component drawing as DXF or DWG file or photos of your component. We plan your optimal clamping device
Идеальная резка – инструменты QATM
Резка более надежна, безопасна и эффективна, если для ее обработки используются правильные ингредиенты: знания, забота и правильный выбор расходных материалов и инструментов.
Do you already know which clamping unit you need? Then request a quote here!
