IoT - Internet of things The platform for remote access to your devices
All QATM hardness testers with QpixControl2 and QpixT2 software seamlessly integrate into the Verder Scientific IoT platform, providing enhanced functionality and seamless connectivity.
- Real-time Monitoring: Monitor your machinery in real time, from anywhere in the world. This data-driven approach empowers you to make informed decisions with ease.
- Live Notifications: Be ahead of the curve with immediate alerts and updates. Real-time notifications ensure you stay informed about your equipment's performance, leading to proactive maintenance.
- Effortless Backup: Simplify your data protection. Whether you need to back up a single device or an entire fleet, our platform streamlines the process, minimizing downtime and data loss.
- Automatic & Free Software Updates: Bid farewell to manual updates! Verder Scientific IoT ensures your customers' machines are consistently equipped with the latest software, optimizing performance and reliability.
Perfect hardness testing - Consumables by QATM
Hardness testing is more reliable, safe and efficient when processed with the right ingredients: knowledge, care and the right choice of consumables and instruments.

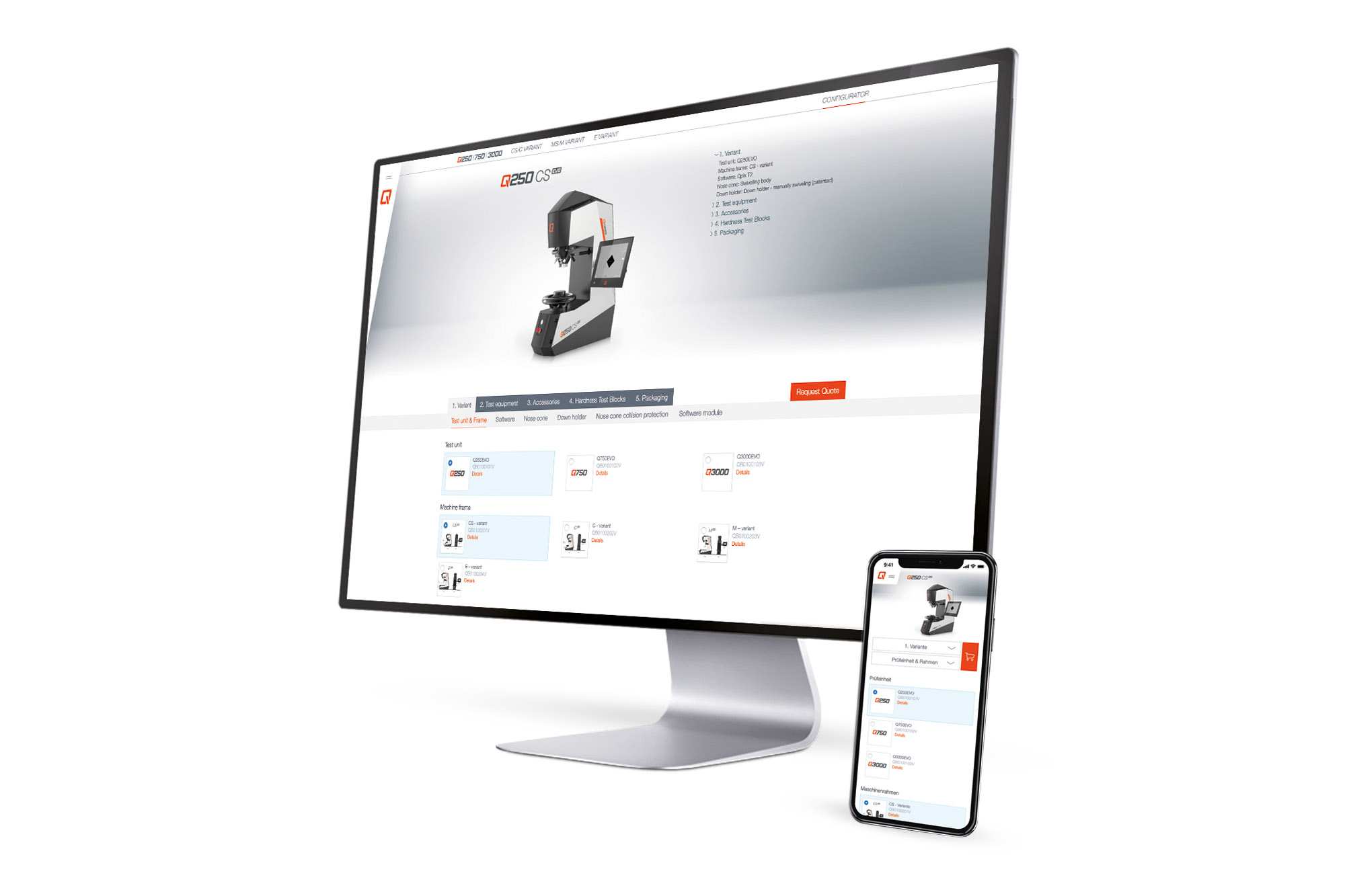

Macro Hardness Testers Configure Your Hardness Tester to Match Your Application
With the QATM Configurator, you can easily tailor your hardness tester to your individual requirements. Select the appropriate device version, equipment, and accessories, and submit your configuration directly as a non-binding request for quotation to QATM.
Your benefits at a glance:
- Configure individually: Select the device, equipment, and accessories to match your application
- Simple & clear: Step by step to your desired device configuration
- Request directly: Submit your configuration easily as a free and non-binding request for quotation
- Personal support: QATM experts assist you in selecting the right solution
Alternatively, you can also submit your inquiry directly via our contact form.
Macro Hardness Tester Qness 200 CSA+ Technical Data
| Test force range | 0.5 - 187.5 kg (4.9 - 1839 N) |
|---|---|
| Tool positions | 5 (toolchanger) |
| Software | QPIX CONTROL 2 |
| Height adjustment | motorized |
| Test height | 140 mm |
| Throat depth | 238 mm |
| Test table | 180 x 200 mm |
| Traverse path | X 220 / Y 220 mm |
| Max. workpiece weight | "unlimited" |
| Weight of basic device | 174 kg |
| Test sequence | fully automated / electronic force application |
| Camera system / Image transfer | 5 MP ethernet industrial standard |
| Ports | 1x RJ45 (Ethernet) |
| Lenses | XLED 2, XLED 5, 5x, 10x, 20x, 50x, 100x |
| Field of view (acc. to equip) | 0.113 x 0.084 mm (100x) to 4.24 x 3.18 mm (XLED2) |
| Additional options | QATM designer pedestal, collision protection, cross laser, test anvils,prisms, data connections, barcode/QR code reader etc. |
