Fully Automated Macro Hardness Tester Qness 250 / Qness 750 / Qness 3000 A+ EVO

XLED illumination modules revolutionize the analysis of Brinell indentations. Due to beading on commercially available lenses, soft Brinell indentations in particular can be subject to imprecise gauging results. In contrast, XLED lenses guarantee precise and repeatable measurements, regardless of material type and hardness, due to direct and wide-extension illumination.

The optics system of the new hardness tester series EVO has been completely redeveloped. It was built on site in the cleanroom at the QATM plant and benefits from the company’s comprehensive expertise. All hardness testers of the new series share one universal microscope system covering all the necessary visual ranges between 0.1 mm and 8 mm in maximum clarity and contrast. The QATM system guarantees uniform illumination across the entire image, regardless of the degree of magnification, and without dark edges.

High-quality CMOS 5-megapixel cameras with Ethernet data transfer define the current industrial standard. Unlike other camera systems, a far higher transmission stability is possible here. Additionally, the PC and hardness testing device can be set up remotely at great distances from each other. This is ideal in manufacturing environments in which the control infrastructure is installed in external switch cabinets.

Fully automatic and robust XY slide with high-precision positioning drive. Dynamic joystick to control all 3 axes (XYZ). Usable support surface 450 x 300 mm or, on request, larger travels and test tables available.

For each XY test point position the Z height can be individually selected. During automatic testing, the machine changes between specimens of different height or different test levels safely and fully automatically. Thanks to the innovative CAS technology, the unit is protected against collisions. When testing clamped samples, the patented QATM “workpiece recognition” reduces the approach speed of the test head automatically via sensor detection (preserves machine and sample).

High-performance induction motor in the A/A+ version facilitates a workpiece clamping force of up to 3.200 kg. Clamping power is adapted to the test method and is automatically set to be greater than the test force. Operators do not need to set levels and can rely on the hardness tester to guarantee safe, optimized adaption.

Qness 250 A/A+ EVO-Version only: For hardness tests according to Rockwell or Brinell, parts securely fixed with the downholder are indispensable. For general processes, such as edge recognition or during the programming of test samples, however, the downholder is not required. Hence, the downholder clamp can be swivelled in or out by motor in a matter of seconds between different processes in the innovative EVO system. This improves operating convenience and further reduces cycle times.

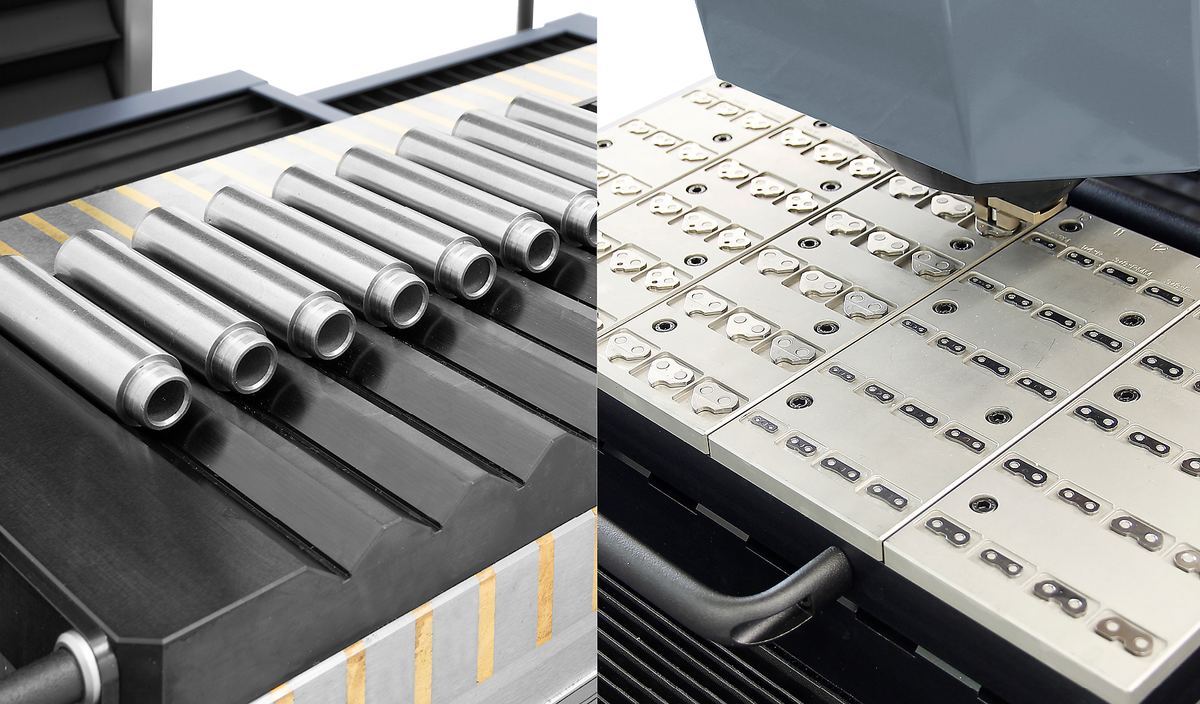

An entire range of relevant data, such as test patterns, test methods and user fields can be activated via pre-defined sample magazines. QATM can provide the most suitable clamping setup, matrices and cassette systems for every requirement.
