Simple and efficient rockwell hardness testing
The Qness 150 CSA+ incorporates the best of all proven concepts and practices: the versatility of an automatic hardness tester and the speed of our Rockwell testers.
A fully automatic XY slide will guarantee high precision hardness testing. It is ideal for fully automatic series and progression tests on parts with identical test heights. However, individual tests can be performed, too.
Product Advantages
- Large test force range (1kg – 250kg)
- Automatic 3-axis control
- Short cycle times
- Identical sample tests
- Robust, welded steel frame
- Infinitely adjustable test table height
Product Video

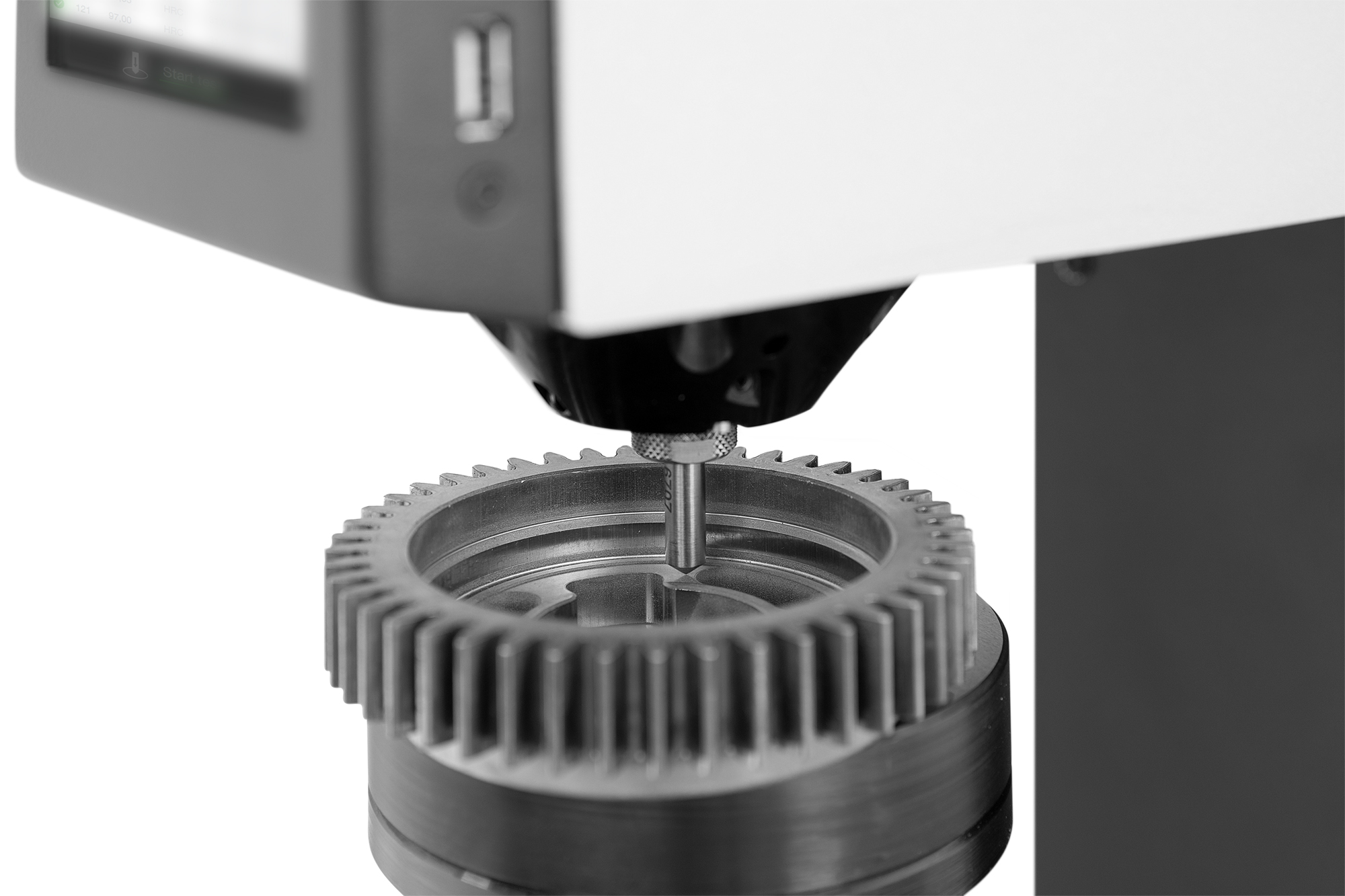

The perfect introduction to Rockwell hardness testing

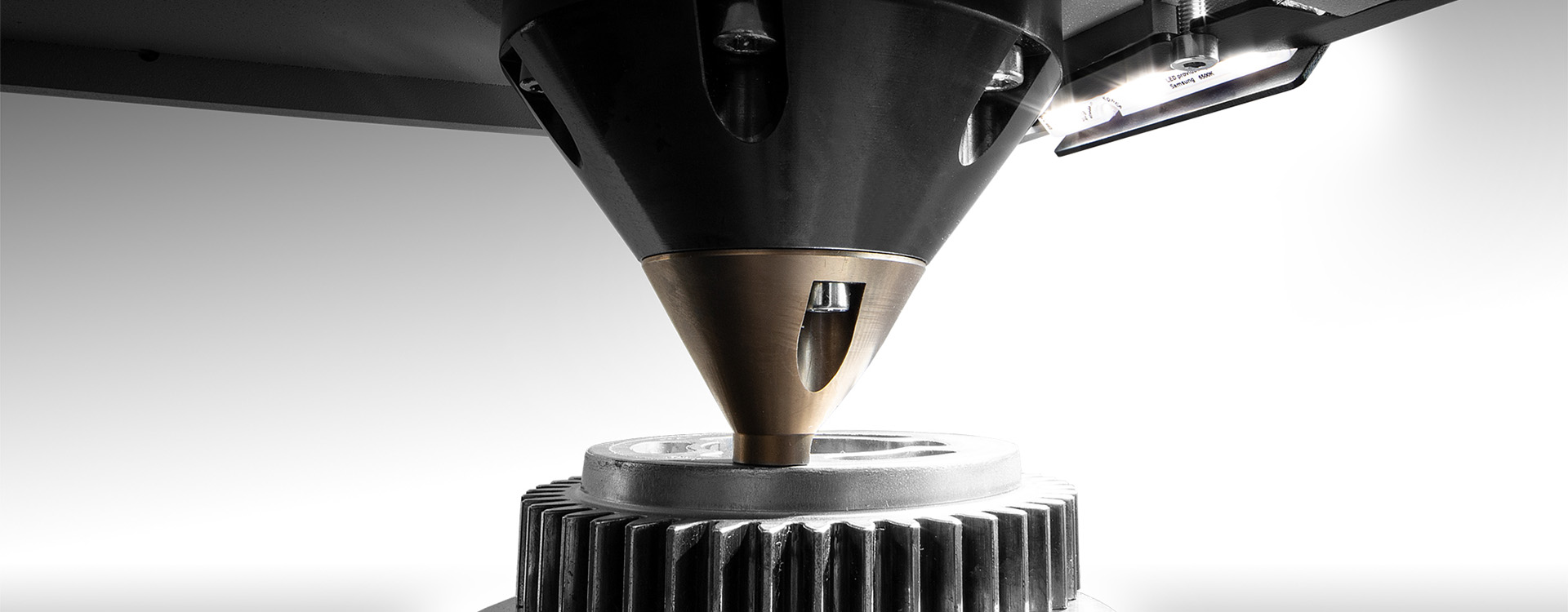

Built-in LED workspace lighting simplifies the precise positioning of the test piece, thus enhancing operating convenience.

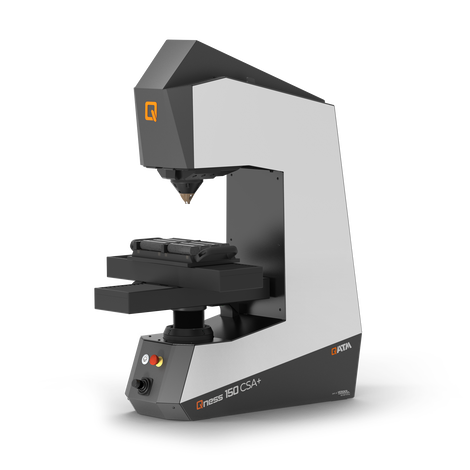

Rockwell Hardness Tester QNESS 150 CSA+
Test Methods & Force Range
| HBT (not acc. to standards) |
| HVT (not acc. to standards) |
| Plastics |
|---|
DIN EN ISO 2039
| 49.03 N | 132.9 N | 357.9 N | 961 N |
Integrated conversions: DIN EN ISO 18265, DIN EN ISO 50150, ASTM E140
Fully automated test cycle

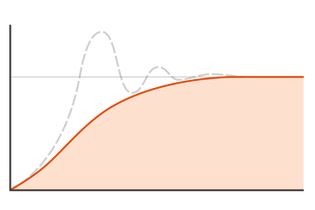

Electronic force application and closed-loop control
IoT - Internet of things The platform for remote access to your devices
All QATM hardness testers with QpixControl2 and QpixT2 software seamlessly integrate into the Verder Scientific IoT platform, providing enhanced functionality and seamless connectivity.
- Real-time Monitoring: Monitor your machinery in real time, from anywhere in the world. This data-driven approach empowers you to make informed decisions with ease.
- Live Notifications: Be ahead of the curve with immediate alerts and updates. Real-time notifications ensure you stay informed about your equipment's performance, leading to proactive maintenance.
- Effortless Backup: Simplify your data protection. Whether you need to back up a single device or an entire fleet, our platform streamlines the process, minimizing downtime and data loss.
- Automatic & Free Software Updates: Bid farewell to manual updates! Verder Scientific IoT ensures your customers' machines are consistently equipped with the latest software, optimizing performance and reliability.
Rockwell Hardness Tester QNESS 150 CSA+ Sophisticated Construction, Ultra-Simple Operation
Compact Design - Latest technology
- Controlled force application (1kg to 250kg)
- Machine versions to serve all applications and test piece size
- Direct depth-gauge-system (0.05μm resolution)
- Robust welded steel frame and sheet steel covers

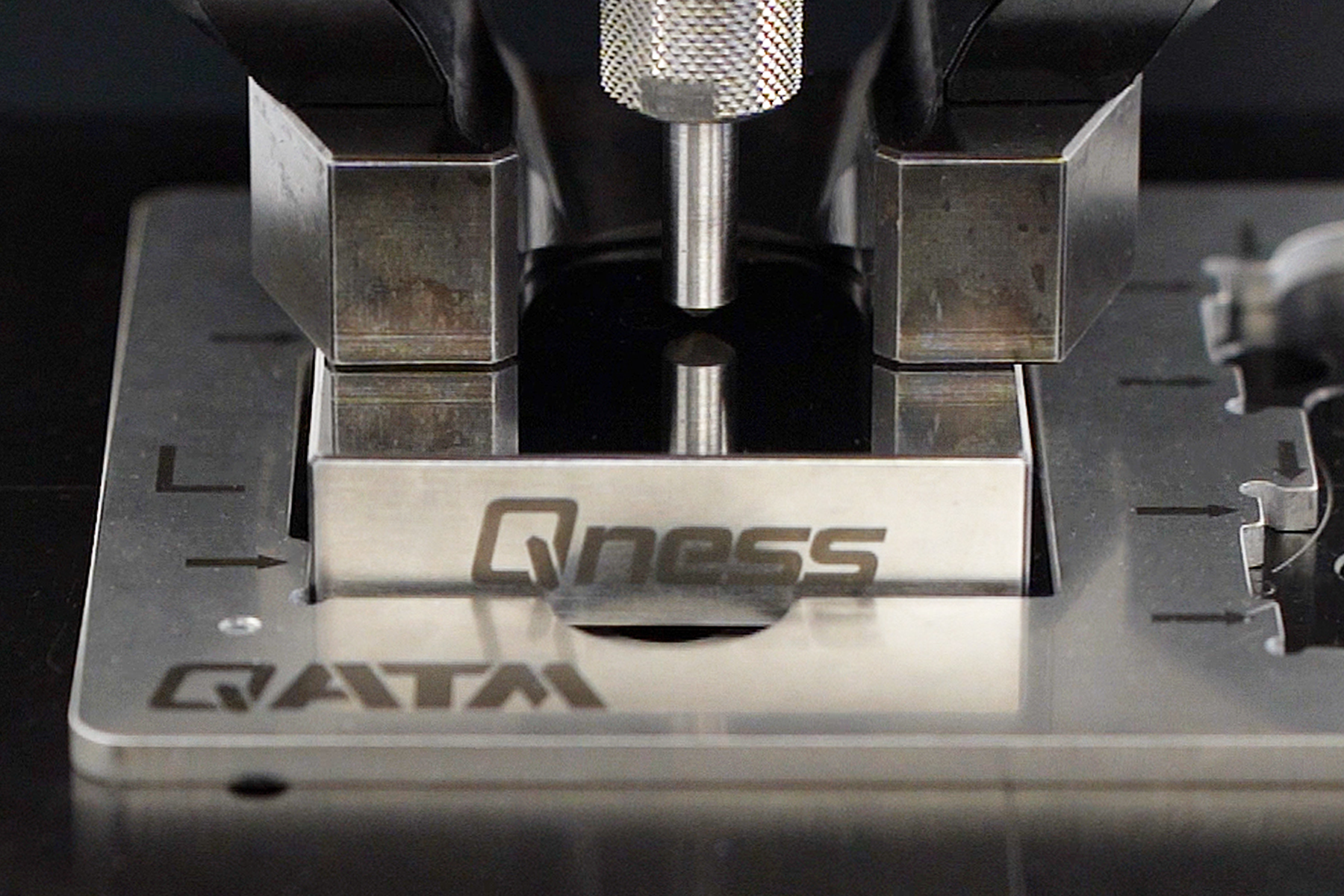

Removable downholder
- No need for long retooling breaks due to inaccessible test points. The clamping head can be removed via 2 screws. Now, even test points in hard-to-reach contours can be accessed with ease.
Made in Austria
- Unmatched in its class! We know how important a long-serving superior-quality device can be and guarantee excellent quality from our new Rockwell hardness tester series. Developed and manufactured in Austria!
Rockwell Hardness Tester QNESS 150 CSA+ Intuitive features and operation
Test Table Height Adjustment
The height of the test table is infinitely adjustable (position can be fixed) via the play-free roller-bearing spindle guide - ideal for fully automatic series and progression tests on parts with identical test height. The test sequence is performed without clamping. Individual tests can also be carried out with the patented, swivelling downholder clamp.
Automatic Progressions
The automatic XY slide with high-precision positioning drive enables extensive test series and hardness curves. External joystick for controlling the axis. Usable support surface: 180 x 200 mm, Traverse path: X 220 / Y 220 mm.

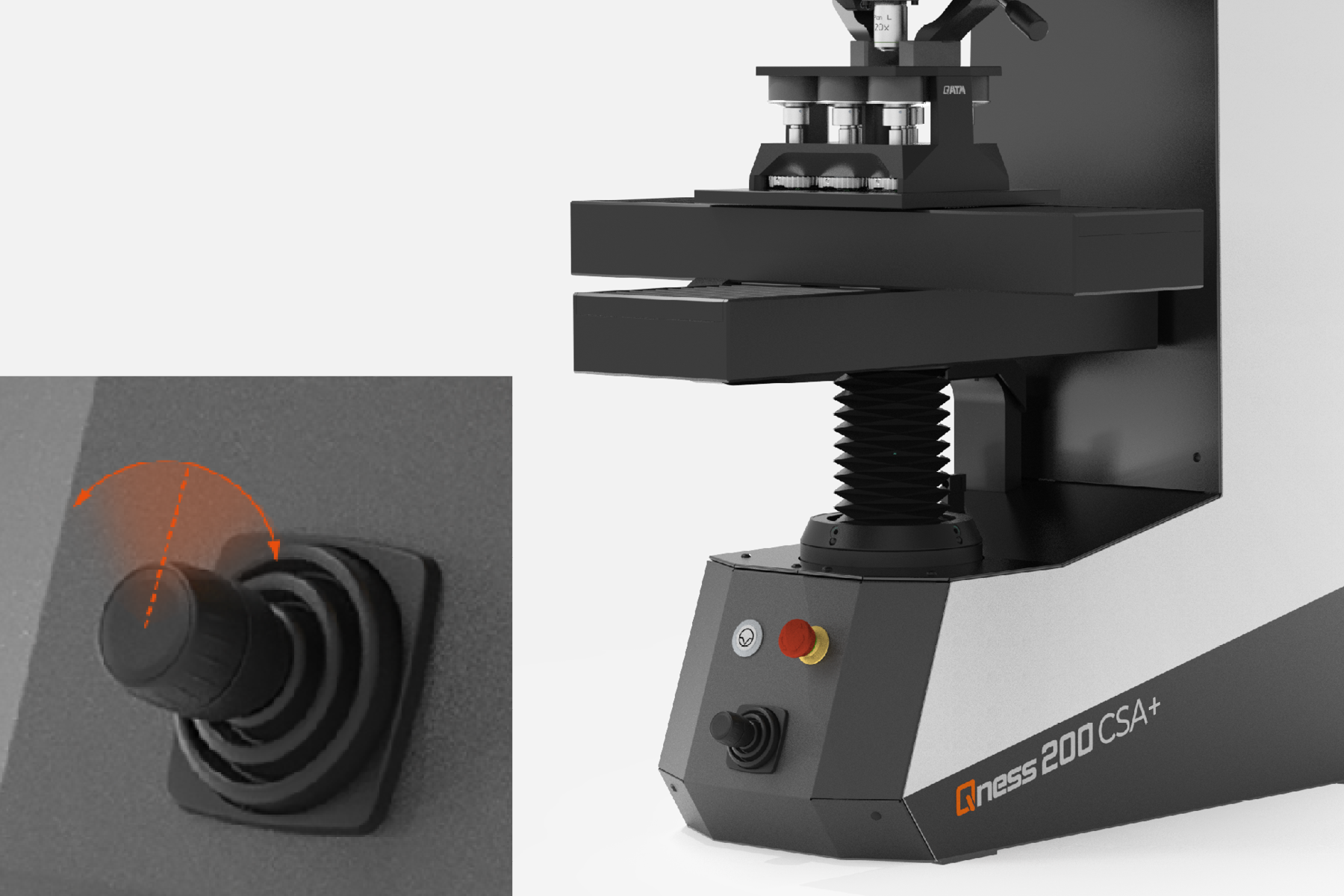

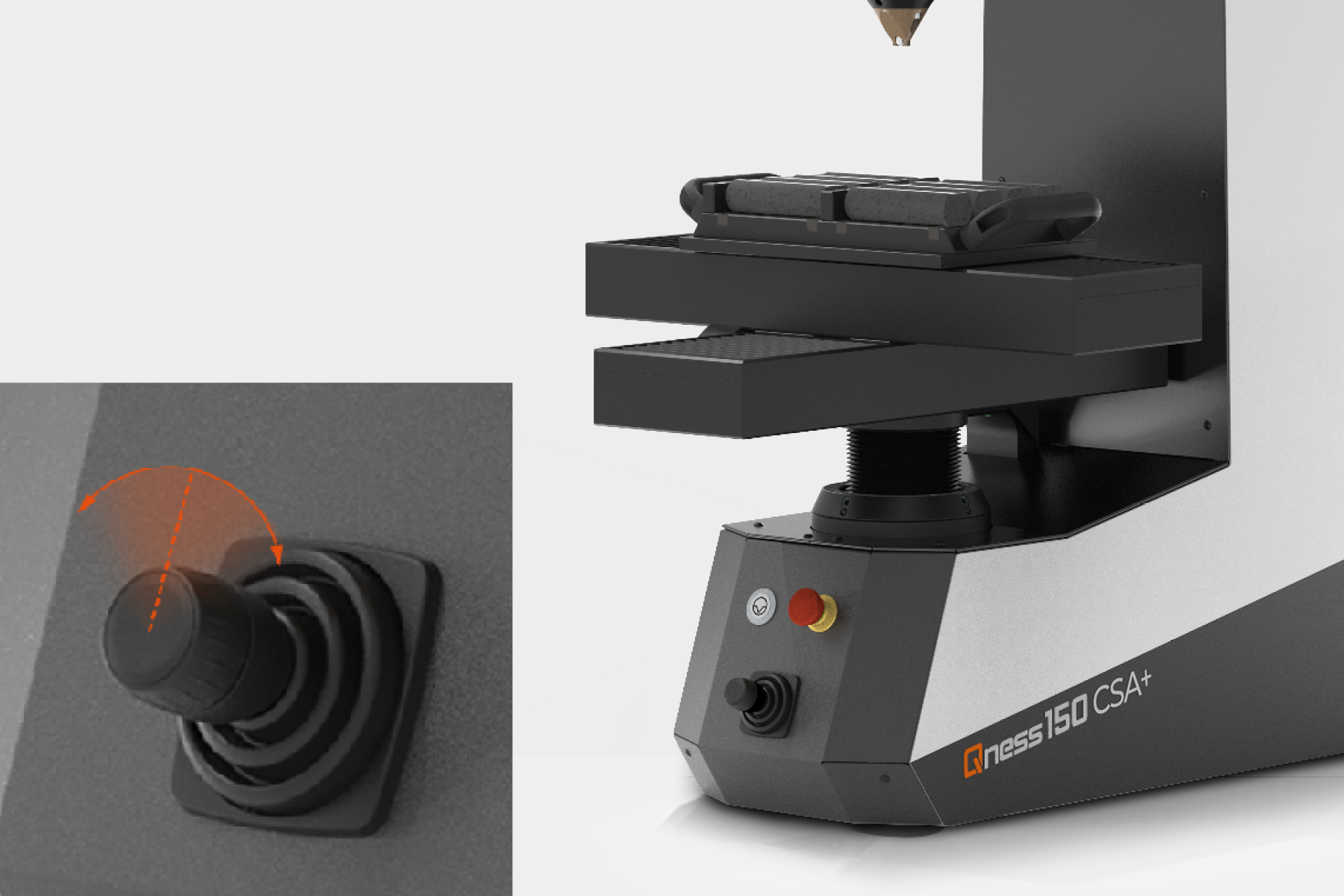

Fully automated 3-Axis Control

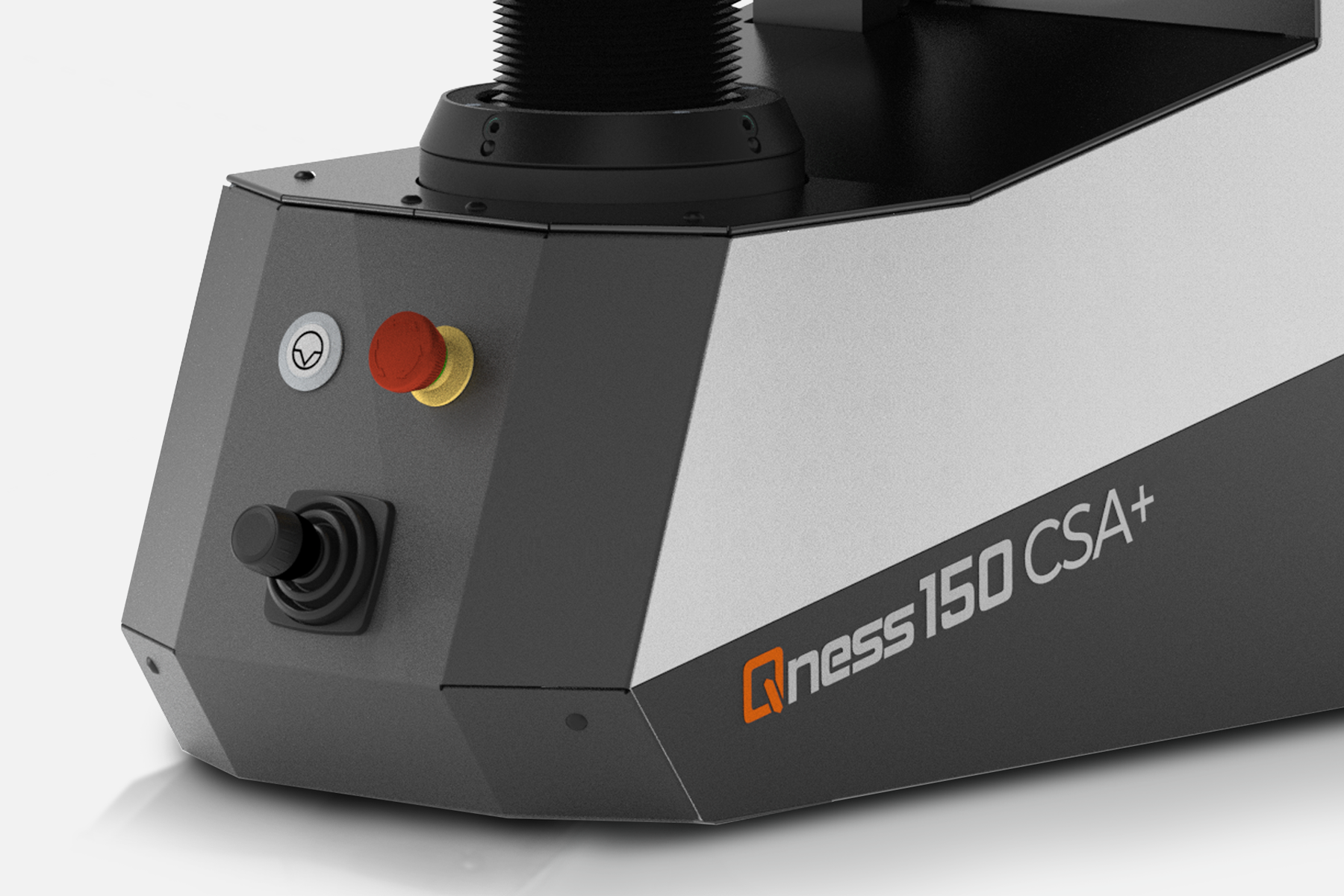

Fully automatic and robust XY slide with high-precision positioning drive. Dynamic joystick to control all 3 axes (XYZ). Usable support surface 200 x 180 mm.

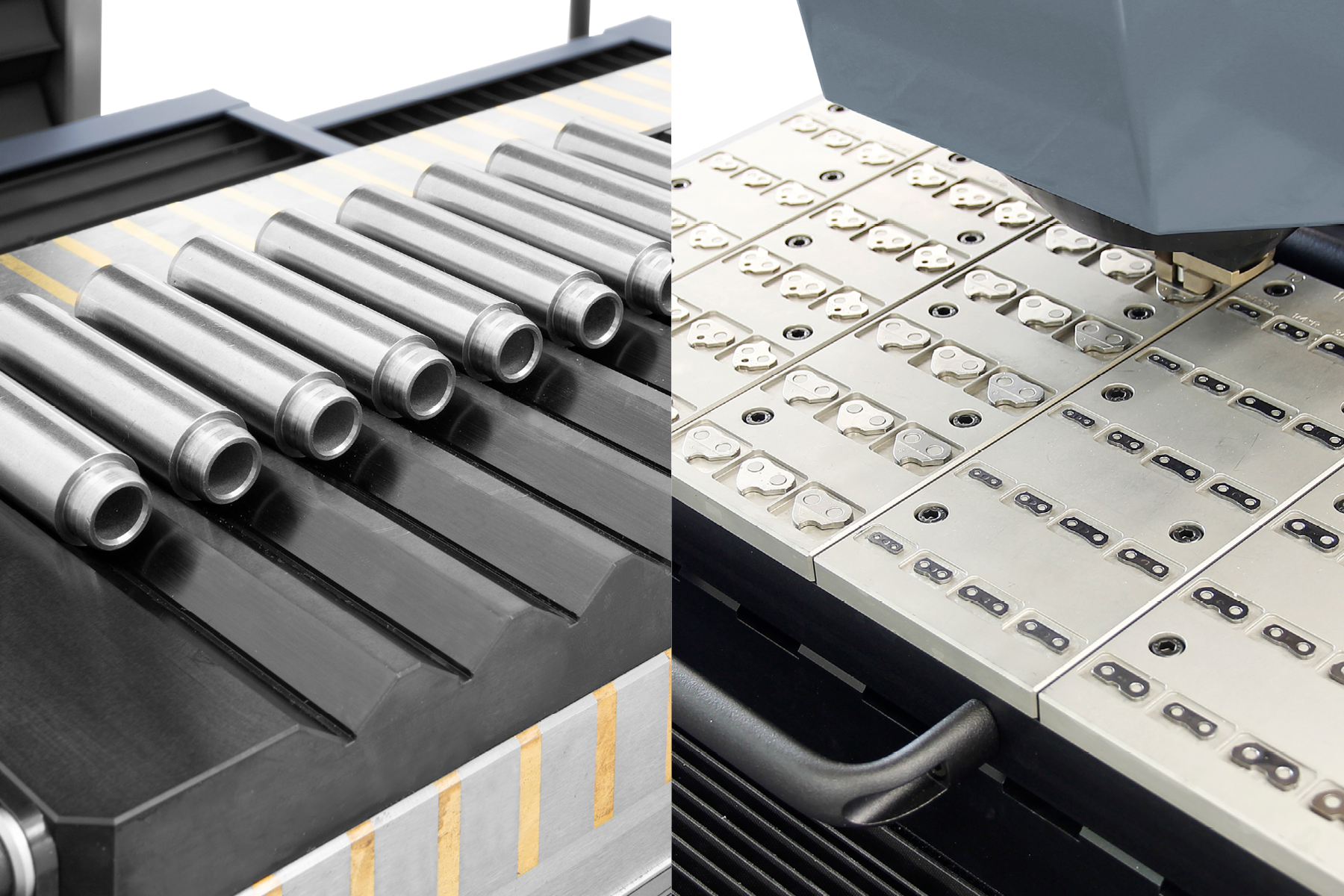

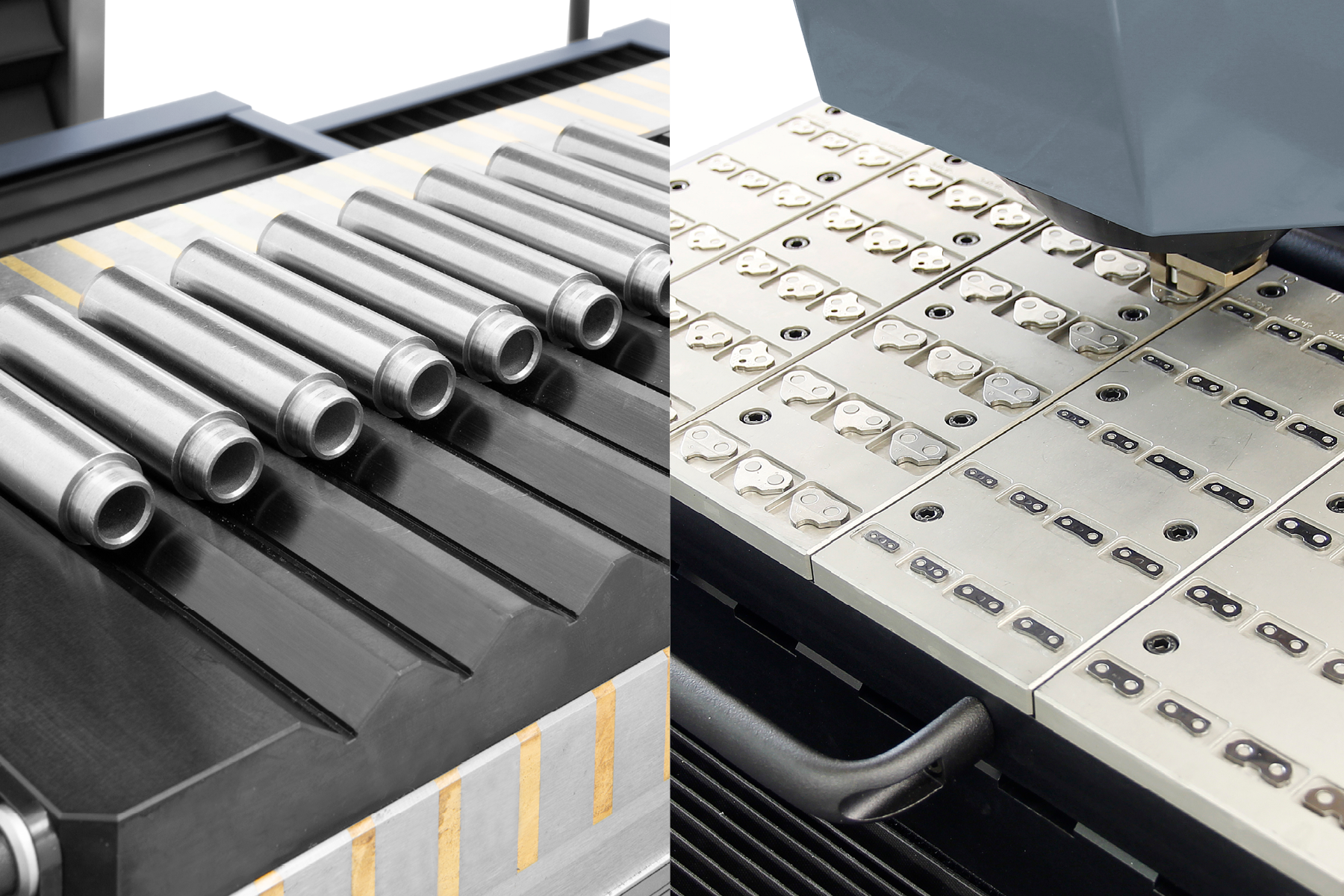

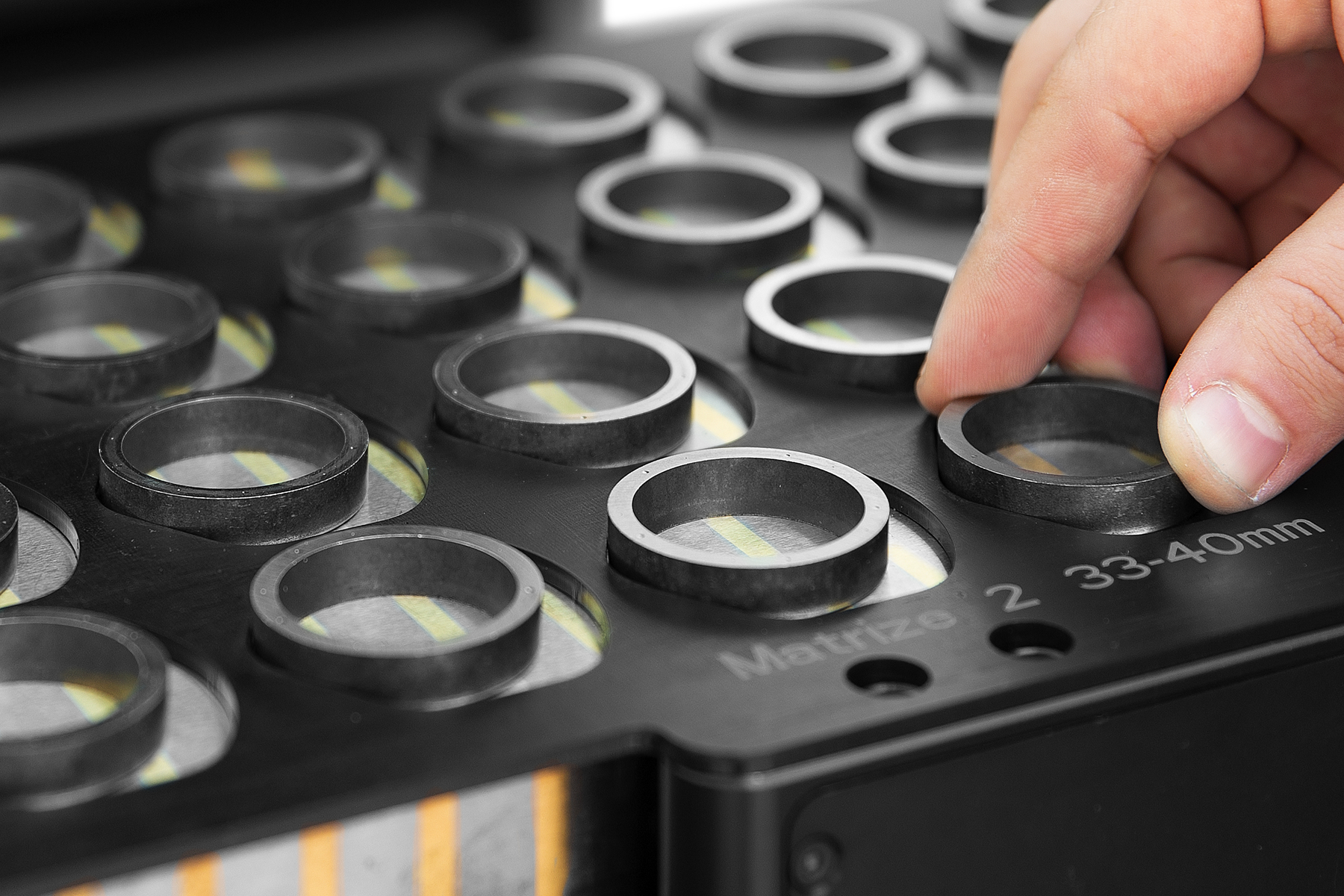

Identical Sample Tests
An entire range of relevant data, such as test patterns, test methods and user fields can be activated via pre-defined sample magazines. QATM can provide the most suitable clamping setup, matrices and cassette systems for every requirement.

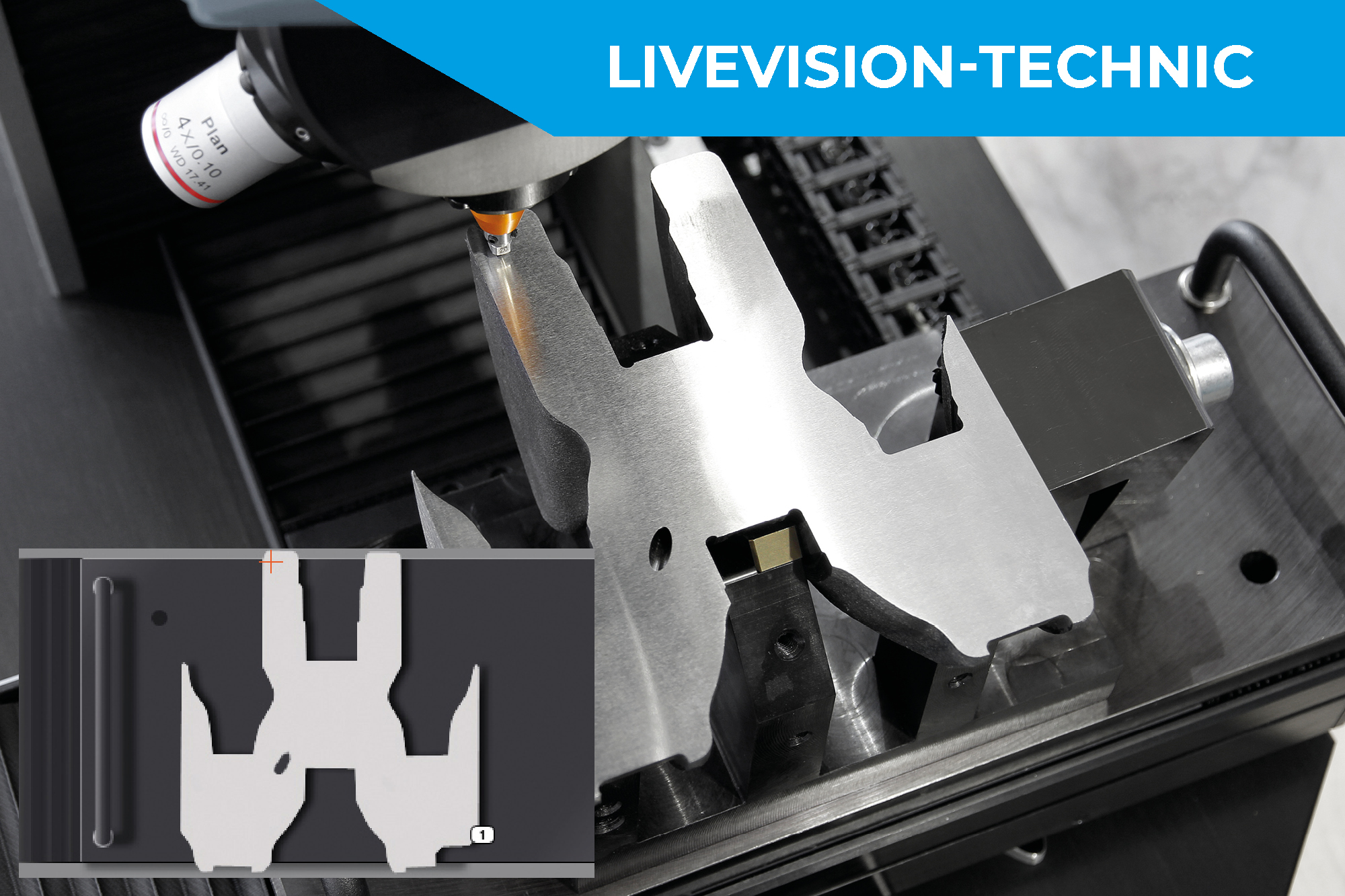

Sample Image Camera
Ultimate ease of use with 5 megapixel colour camera for recording the entire sample for a perfect overview and documentation in the protocol. It is standard in the CSA+ versions to record the entire table surface as sample image.
Maximum Clamping Safety
High-performance induction motor facilitates an ideal workpiece clamping force. Clamping power is adapted to the test method and is automatically set to be greater than the test force. Operators do not need to set levels and can rely on the device to guarantee safe, optimized adaption.

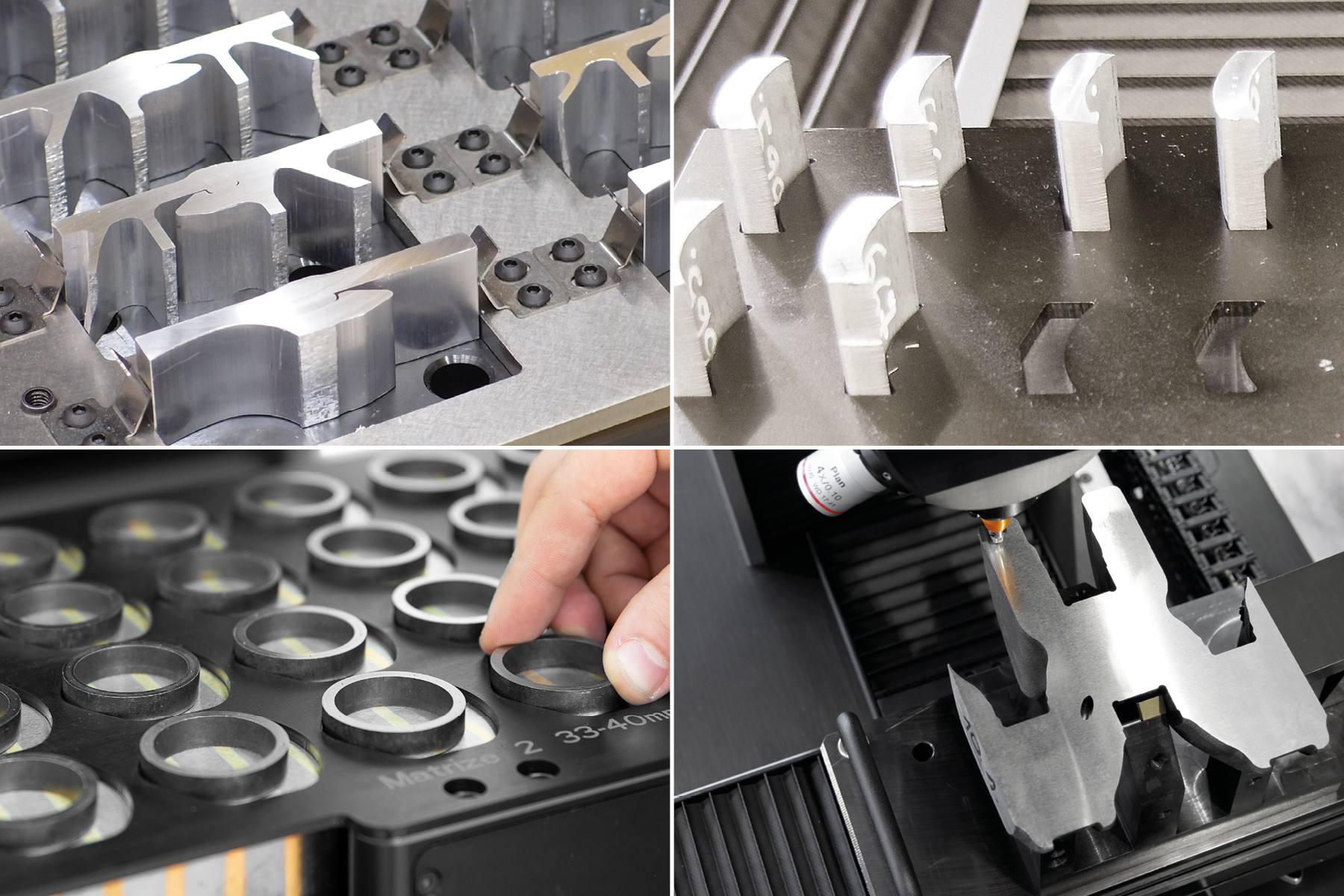

Special clamping devices
QATM is the right stop for advice on complex requirements and clamping devices! It would be our pleasure to advise, devise, customize and implement a solution for you. Only the right component clamping solution can guarantee reliable results.
Maximum QATM-Standard precision

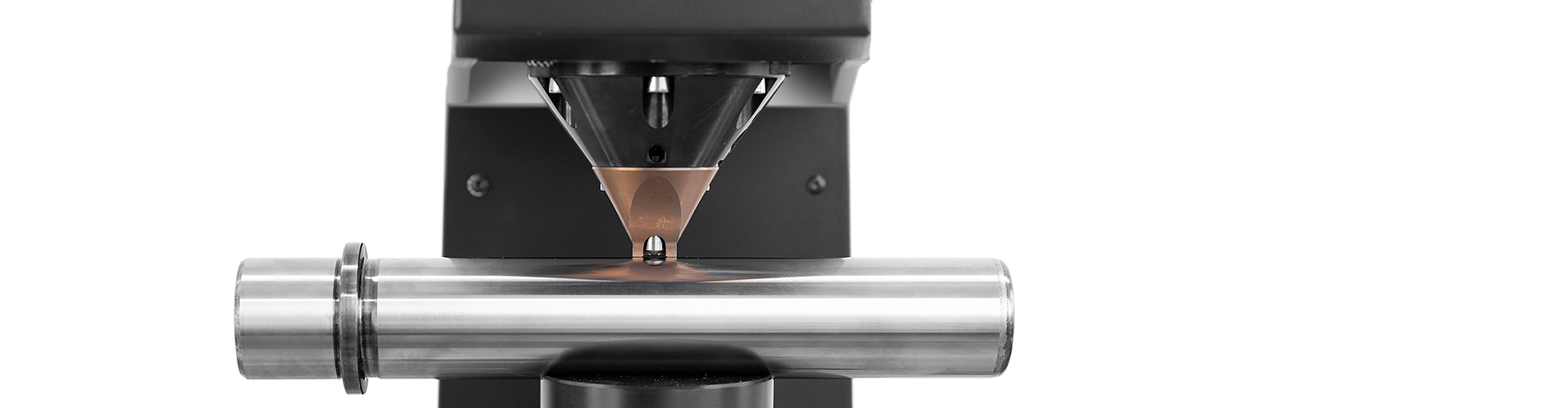

QATM configures the Rockwell hardness tester Qness 150 CS and CSA+ with a direct, ultra-precise HEIDENHAIN depth-gauging system, positioned exactly on the axis of the indenter. This omits measurement inaccuracies caused by deformation in the system. Another unbeatable benefit: Indenting depth can be gauged directly – and can be easily calibrated in accordance with the latest Rockwell norms.

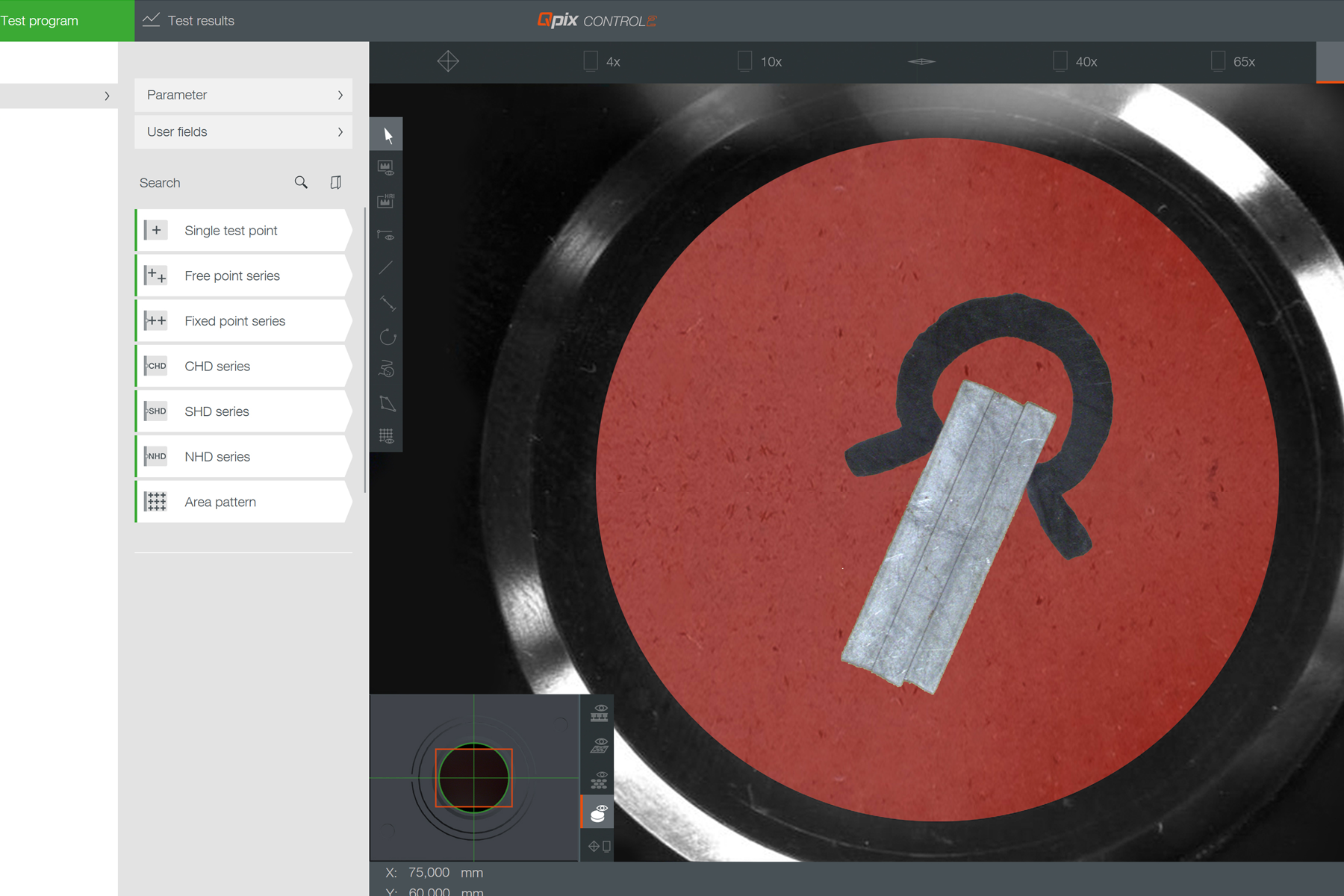

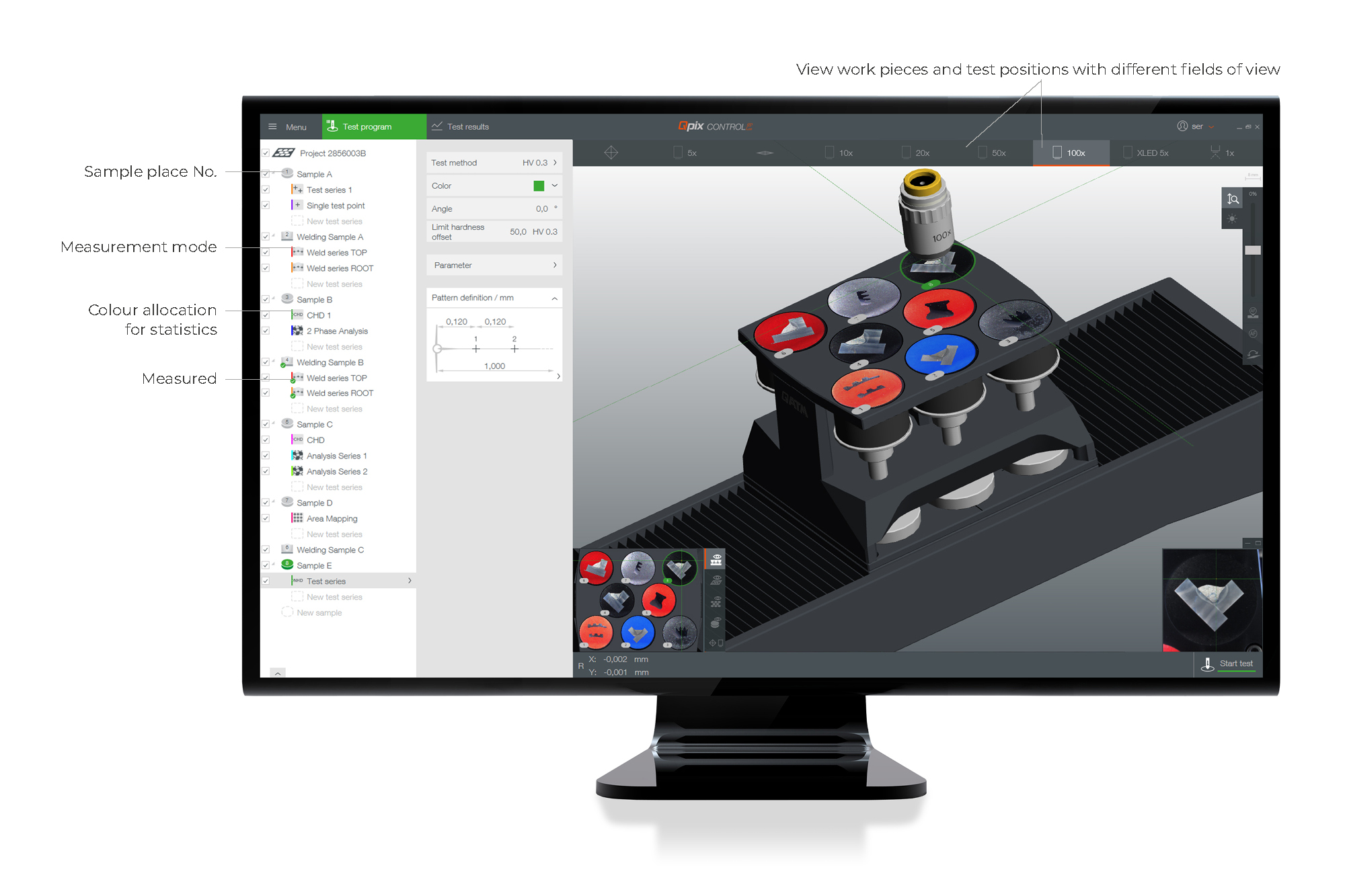

Operation via external PC-system Revolutionary 3D operating concept
Intuitive, clearly organized and professional: Qpix Control2 next-generation hardness testing software, developed based on customer feedback and input for maximum user-friendliness. 3D imaging and a whole range of easily understood control elements and views included in the software. It sets new standards in hardness testing.
Customer-specific sample holder
Identical samples can be set up in the software in scale as a 3D model.
Save time with optimum stop
Time-saving test mode ‘Complete all indentations – then evaluate’ and ‘Optimum Stop’ to complete test series as soon as the lower hardness limit has been undercut.

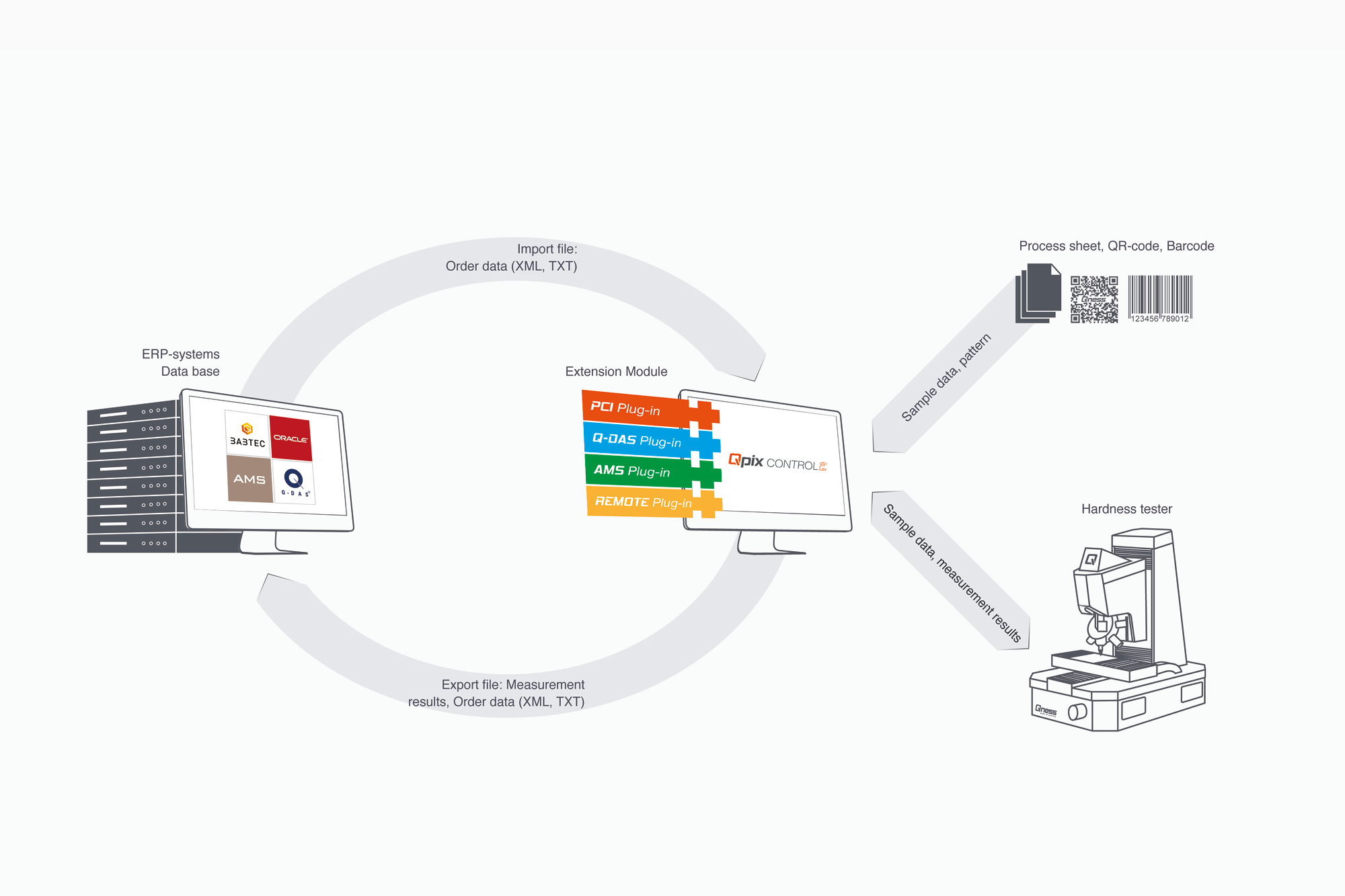

Industry 4.0 Qconnect for connected tomorrows
Qconnect is the interface in QATM Qpix Control2 software, providing customers with a full portfolio of inter-device connectivity - from serial production, open XML interfaces (bi-directional) and pre-specified plug-in solutions, such as the QDAS Plug-In+, through to customer-specific connectivity solutions implemented completely by QATM. We have a professional solution for every applicational requirement.
Available functionalities & formats:
REPORT, PRINT, PDF, XML IE, CSV, TXT, WORD, EXCEL, AUTO EXPORTER, MAIL, Q-DAS, AMS IE, IOT, LIMS, OPCUA, PCI IE (ERP, BABTEC, ORACLE, SAP)
Perfect hardness testing - Consumables by QATM
Hardness testing is more reliable, safe and efficient when processed with the right ingredients: knowledge, care and the right choice of consumables and instruments.
Rockwell Hardness Tester Configure Your Hardness Tester to Match Your Application
With the QATM Configurator, you can easily tailor your hardness tester to your individual requirements. Select the appropriate device version, equipment, and accessories, and submit your configuration directly as a non-binding request for quotation to QATM.
Your benefits at a glance:
- Configure individually: Select the device, equipment, and accessories to match your application
- Simple & clear: Step by step to your desired device configuration
- Request directly: Submit your configuration easily as a free and non-binding request for quotation
- Personal support: QATM experts assist you in selecting the right solution
Alternatively, you can also submit your inquiry directly via our contact form.
Rockwell Hardness Tester Qness 150 CSA+ Technical Data
| Test force range | 1 - 250 kg (9.81 - 2450 N) |
|---|---|
| Tool positions | 1 |
| Software | QPIX CONTROL 2 |
| Height adjustment | motorized |
| Test height | 140 mm |
| Throat depth | 238 mm |
| Test table | 180 x 200 mm |
| Traverse path | X 220 / Y 220 mm |
| Max. workpiece weight | 100 kg |
| Weight of basic device | 140 kg |
| Display | - |
| Test sequence | fully automated / electronic force application |
| Operating system / Hard drive | Windows 10 IoT / 128 GB SSD |
| Ports | 1x RJ45 (Ethernet) |
