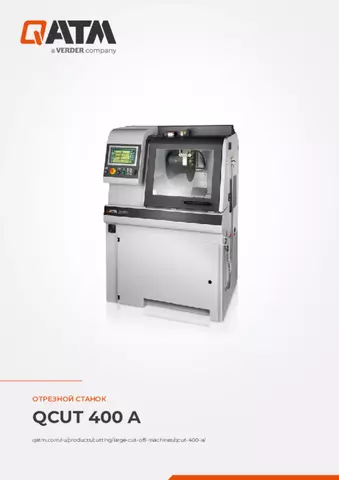

Отрезной станок Qcut 400 A

The compact large cut-off machine Qcut 400 A offers high cutting capacity in a minimal footprint. Its automatic travel and cross-cut functions ensure precise, low-contact cuts.

• Compact design: Enables large and powerful cuts in a small space
• Best price-performance ratio: Strong cutting performance at a fair price
• Multi-Position Process (MPP): Simultaneous positioning and automatic cutting of different components on the machine table.

Отрезной станок Qcut 400 A Особенности

Stainless steel machine table

• Spacious machine table enables precise work even under heavy loads.
• Integrated T-slots for the Easy clamping system for quick mounting of clamping tools
• Efficient and reliable fixation of complex geometries using clamping devices
• Load capacity up to 120 kg (including clamping devices)

Laser alignment

• Optional laser alignment projects the cutting line directly onto the workpiece, enabling precise positioning and exact cut placement.
• Easy positioning of workpieces
• Precise clamping without much effort

Robust machine with large cutting chamber

• Robust, powder-coated aluminum machine body features a large sliding door with scratch-resistant laminated safety glass and convenient side access door.
• Machine body with integrable recirculating cooling unit and automatic central lubrication
• Large cutting chamber access with safety interlock — doors open only when cut-off wheel is stationary
• Side opening on the right for long samples

Precision cross feed

• The table-integrated Z-axis maintains consistent cutting height while the automatic cross feed with serial cutting function delivers precise parallel cuts.
• Simple and intuitive serial cutting
• The multi-position process (MPP) allows more complex serial cutting to be carried out

Rotation tool

• The optional rotation tool features a vertical rotary feed parallel to the wheel with software-controlled angle input.
• More uniform cutting surfaces and cutting quality
• Cutting time is halved for rotationally symmetrical parts
• Protects against cut-off wheel run-out

Intuitive and easy operation

• Large 10.1” industrial touchscreen with intuitive QATM user software and joystick.
• Easily manage process parameters and create customer-specific maintenance tasks (200 user programs can be saved)
• Parameters such as feed rate, travel distance, and cutting force can be changed during automatic operation

Pulsed cutting

• For thick and difficult-to-cut materials, the adjustable automatic pulsed cutting provides gentle sectioning with optimal cooling of the cut interface.
• Enhanced cutting results for larger components
• Superior cooling of contact surfaces

Cutting force dependent feed control (X- and Y-Axis)

• The feed rate automatically decreases when cutting force reaches a preset limit, protecting the machine, sample, and clamping tools from overloading while ensuring time savings through variable feed control.
• Time savings thanks to variable feed rate
