The Qpol PLUS 1 and PLUS 2 are automatic, single wheel or twin wheel grinding and polishing machines that can operate using either single or central pressure. They are suitable for working wheels with a diameter of 200/250/300 mm. The high-performance PLUS head also allows the use of large sample holders with diameters up to 185 mm (central pressure).

Vantaggi prodotto

Automated processes: High-removal grinding/polishing, variable dosing of diamond suspensions/lubricants, contact pressure, speed control, and the direction of rotation (in-phase/out-of-phase) for the polishing head and working wheel are all variable and freely adjustable.
High flexibility: The L sample holder allows for the use of very large samples.
High reproducibility: Automatic sample preparation methods can be customized, and up to 200 preparation methods—protected by user account management—can be edited and saved. Grinding and polishing results remain consistent even when the process is repeated.

Cliccare per visualizzare il video

Levigatrici e Pulitrici Metallografiche Qpol PLUS 1 / PLUS 2 Caratteristiche

Durable and reliable

Machine body made of a sturdy welded aluminum construction with a high-quality, durable powder coating

Extremely smooth operation thanks to a low-vibration design
Powerful speed-controlled drive with optimal performance, suitable even for larger samples
The impact-resistant plastic tub offers impressive durability, corrosion resistance, and easy cleaning

Grinding/polishing head with swivel bearings

High level of user-friendliness and flexibility: The grinding/ polishing head is equipped with adjustable swivel stops for easy swiveling

Recessed handles on both sides with integrated push buttons for unlocking, ensuring convenient operation
Easy sample holder replacement thanks to the large gap between the grinding/polishing head and the work surface

Simple cleaning system

Single-Disc-Design: Easy removal of all components and easy access

The splash guard ring and working wheel can be removed with minimal effort, thereby reducing setup and cleaning times
The tub insert (plastic inlay) is easy to replace or clean to remove abrasion and residue from the Suspension

Sturdy, pull-out faucet

Easy and thorough cleaning of the work area and the grinding tray

Cleaning Boost function: removes residual liquid from the grinding/polishing media (dries at 750 rpm in 3 seconds)
The water valve is activated automatically at the start and end of the preparation process
Sturdy faucet with a flexible hose extension

Option: Qdoser sistemi di dosaggio

Can be optionally equipped with software-controlled dosing systems for high process flexibility

Qdoser GO: Sistema di dosaggio completamente automatico e controllato da software, dotato di 4 flaconi dosatori facilmente rimovibili e ricaricabili per risultati riproducibili (funzione di agitazione magnetica disponibile come optional)
Qdoser PLUS: Also allows for fine polishing (optional upgrade to a 1-liter bottle for fine polishing suspension)

Ergonomically shaped Splash guard

User-friendly design and the ability to quickly replace consumables

The ergonomically shaped splash guard significantly reduces splashing and can be used as a comfortable hand rest during longer procedures
Grip recesses allow for the replacement of grinding/ polishing media even when the ring is in place

Cappuccio di protezione (solo per il modello A1)

Intuitive and easy to use

Ergonomically integrated 7-inch industrial touchscreen with QATM user software

Intuitive menu structure and easy configuration
Progress indicator for the current procedure via a status bar and an audible signal at the end of the grinding/polishing process
Built-in timer and direct display of torque/contact pressure for high reproducibility

High throughput, large samples and excellent reproducibility Plus grinding / polishing head

The PLUS grinding and polishing head delivers a contact pressure of 5–80 N in single pressure mode and 20–350 N in central pressure mode. Up to 6 samples with a diameter of 50 mm can be prepared at variable speeds using sample holders with a diameter of 160 mm, either in the same or opposite directions. In addition, thanks to the L-type sample holders, central-pressure sample holders with a diameter of up to 185 mm can also be used.

Reproducible results through automatic grinding and polishing
Easy to move thanks to recessed handles with integrated push buttons
Easy sample holder replacement thanks to ample clearance from the work surface

Levigatrici e Pulitrici Metallografiche Qpol PLUS 1 / PLUS 2 Superiore attenzione ai dettagli

1. Ergonomic Control panel

Compact 7-inch industrial touchscreen with intuitive QATM user software

2. Robust machine body

Sturdy powder-coated aluminum construction
USB port for data transfer (updates also possible)

3. Single disc design

Ergonomically shaped splash guard
Impact-resistant plastic tub

4. Faucet

Stainless steel faucet with a pull-out, flexible hose extension

5. Smart grinding/polishing heads

Supports both single pressure and central pressure
Two-hand operation for operator safety

6. Emergency stop switch

Stop all running processes and moving parts

7. Option: Qdoser Plus Dosing unit

Automatic dosing of diamond suspensions/lubricants
Suspension storage bottles can be refilled and removed during operation
Enables automatic fine polishing of samples

High process flexibility Qdoser dosing systems

The fully automatic, software-controlled Qdoser dosing system speeds up the grinding and polishing processes in the materialography laboratory and is compatible with devices in the Qpol M, GO, and PLUS series. Four screw-top 500-ml glass bottles can be filled with QPREP diamond suspensions, QPREP lubricants (diamond lubricants), and/or QPREP fine-polishing suspensions through a separate opening in the lid. The suspension storage bottles are easy to remove, making them simple to clean. A backflush function keeps the connecting hoses clean.

Optimized filling and dosing

The suspension storage bottles can be removed at any time and refilled in a way that is optimized for application, e.g., with:

Qdoser PLUS: 3x diamond suspensions/lubricant and 1x fine polishing suspension (optional upgrade to a 1-liter bottle for fine polishing suspension)
Qdoser GO: 4x Dia-COMPLETE diamond suspensions

Option: Magnetic stirrer

A magnetic stirrer is available as an option for stirring the polishing agents to achieve excellent preparation results

The integrated magnetic stirrer prevents the suspension from settling
Optimal distribution of polishing particles through automatic stirring of the suspensions

Dosage

High flexibility and ease of use thanks to simple polishing agent dispensing

Easy installation of the dispensing nozzles into the designat-ed mount in the grinding and polishing head
Fully automatic, software-controlled dosing via the industrial touchscreen on Qpol machines
Dosing interval can be adjusted as needed
Including backflush function for easy cleaning

Qdoser ONE

Dropper bottle for easy and continuous dosing

Easy to use – Standard QATM suspension and lubricant bottles can be quickly and easily screwed onto the dispenser
Continuously variable dosing rate – The dosing rate is precisely controlled using an adjustment screw
Can be used with a stand or mounted on polishing head

Lecigatura e Lucidatura Perfette – i Consumabili di QATM

La levigatura e la lucidatura risultano più affidabili, sicure ed efficienti quando vengono eseguite con i giusti elementi: competenza, attenzione e una scelta appropriata deii materiali di consumo e strumenti.

Alla gamma prodotti "Levigatura"Alla gamma prodotti "Lucidatura"

Levigatrici e Pulitrici Metallografiche Qpol PLUS 1 / PLUS 2 Dati tecnici

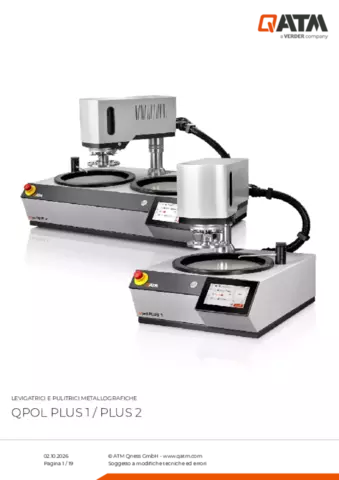

Levigatrici e Pulitrici Metallografiche Qpol PLUS 1

Unità a ruota singola	Regolazione del punto zero
Piatti di lavoro	ø 200/250/300 mm (recommended size: Ø 300 mm)
Inner diameter of the tub	ø 350 mm
Porta Campioni	Single pressure: ø 160 mm Central pressure: up to ø 185 mm
Numero di campioni	Single pressure: 1 - 6 samples, ø 50 mm Central pressure: 1 - 5 samples, ø 50 mm
Contact force	Single pressure: variable, 5 - 80 N Central pressure: variable, 20 - 350 N
Speed (grinding machine)	30 - 600 rpm, continuously variable
Rotational speed (grinding head)	30 - 160 min-1
Allacciamento acqua	1x Fresh water G ½" max. 6 bar
Dosing device (optional)	Qdoser GO, Qdoser PLUS, Qdoser ONE
Temperatura ambiente	10 - 40 °C
Potenza Motore	Working wheel: 0.75 kW (S1) / 1.1 kW (S3) Grinding head: 0.37 kW (S1)
Potenza installata	1.4 kVA
Power connection	220 - 240 V, 50/60 Hz (1 Ph/N/PE) 100 - 120 V, 50/60 Hz (1 Ph/N/PE)
Interfacce	USB
B x H x T	511 x 610 x 756 mm
Peso (a seconda dell'attrezzatura)	approx. 65 kg

Levigatrici e Pulitrici Metallografiche Qpol PLUS 2

Unità con ruote gemelle	Regolazione del punto zero
Piatti di lavoro	ø 200/250/300 mm (recommended size: Ø 300 mm)
Inner diameter of the tub	ø 350 mm
Porta Campioni	Single pressure: ø 160 mm Central pressure: up to ø 185 mm
Numero di campioni	Single pressure: 1 - 6 samples, ø 50 mm Central pressure: 1 - 5 samples, ø 50 mm
Contact force	Single pressure: variable, 5 - 80 N Central pressure: variable, 20 - 350 N
Speed (grinding machine)	30 - 600 rpm, continuously variable
Rotational speed (grinding head)	30 - 160 min-1
Allacciamento acqua	1x Fresh water G ½" max. 6 bar
Dosing device (optional)	Qdoser GO, Qdoser PLUS, Qdoser ONE
Temperatura ambiente	10 - 40 °C
Potenza Motore	Working wheel: 0.75 kW (S1) / 1.1 kW (S3) Grinding head: 0.37 kW (S1)
Potenza installata	1.4 kVA
Power connection	220 - 240 V, 50/60 Hz (1 Ph/N/PE) 100 - 120 V, 50/60 Hz (1 Ph/N/PE)
Interfacce	USB
B x H x T	901 x 610 x 749 mm
Peso (a seconda dell'attrezzatura)	approx. 80 kg

_{Soggetto a modifiche tecniche ed errori}
